CANISTER (for 4WD): Components: Illustration

WARNING: This page is about a different variant/trim than selected.

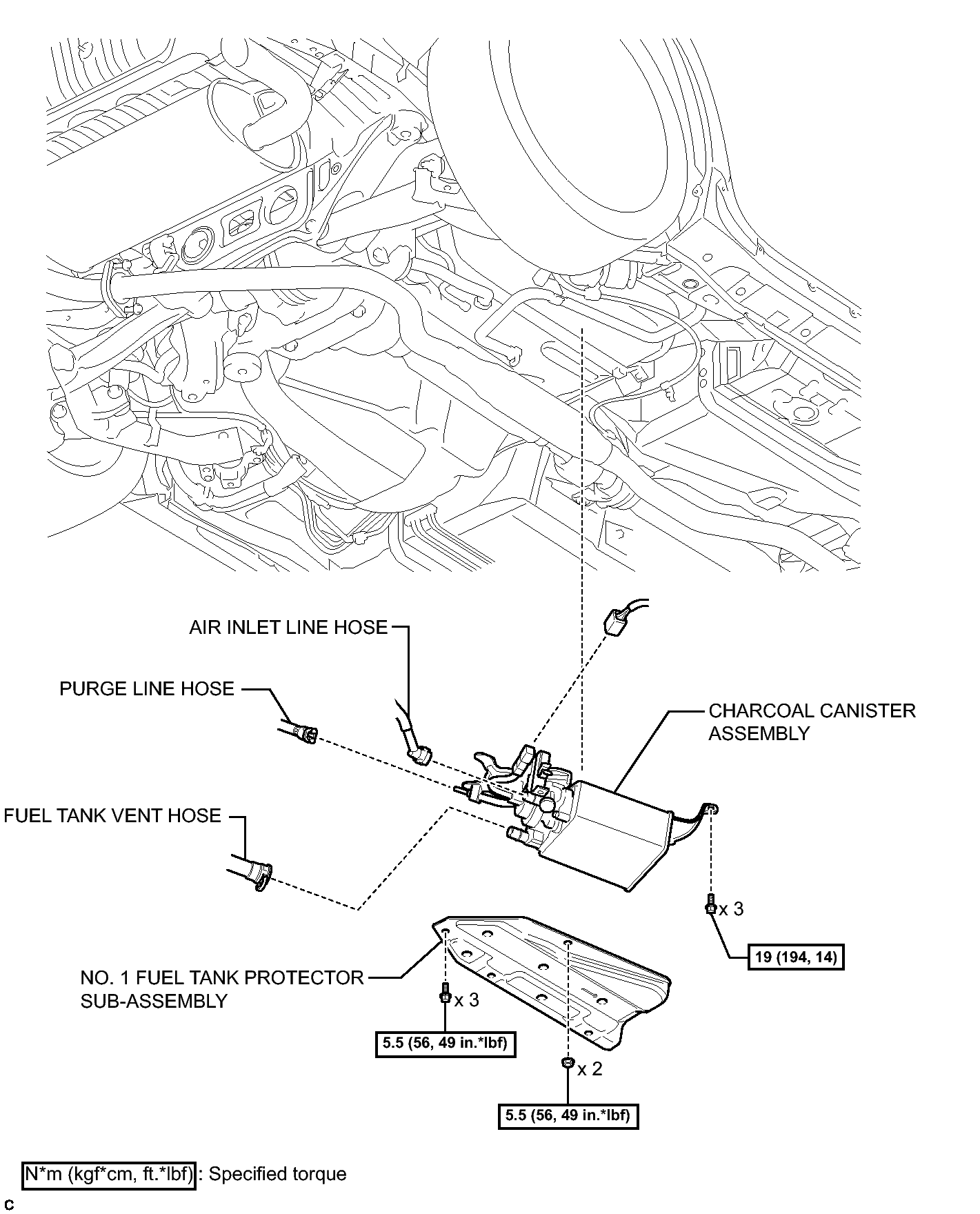

Fig 1: Identifying Charcoal Canister Replacement Components With Torque Specifications
GTY363356Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
