EVAP System: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

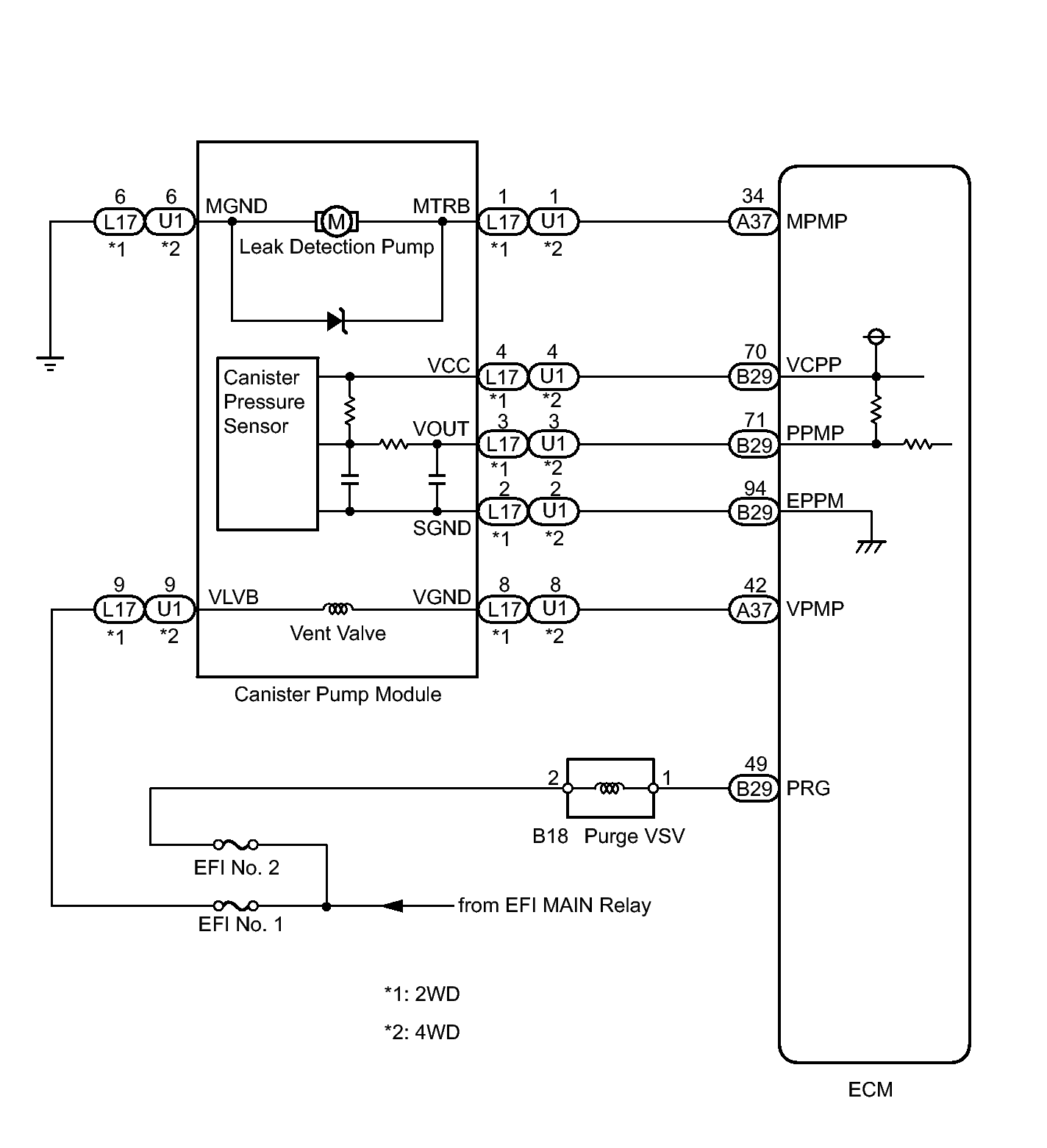

Fig 1: Identifying Canister Pump Module Circuit Diagram
GTY363587Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
