Fuel Injector Circuit: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

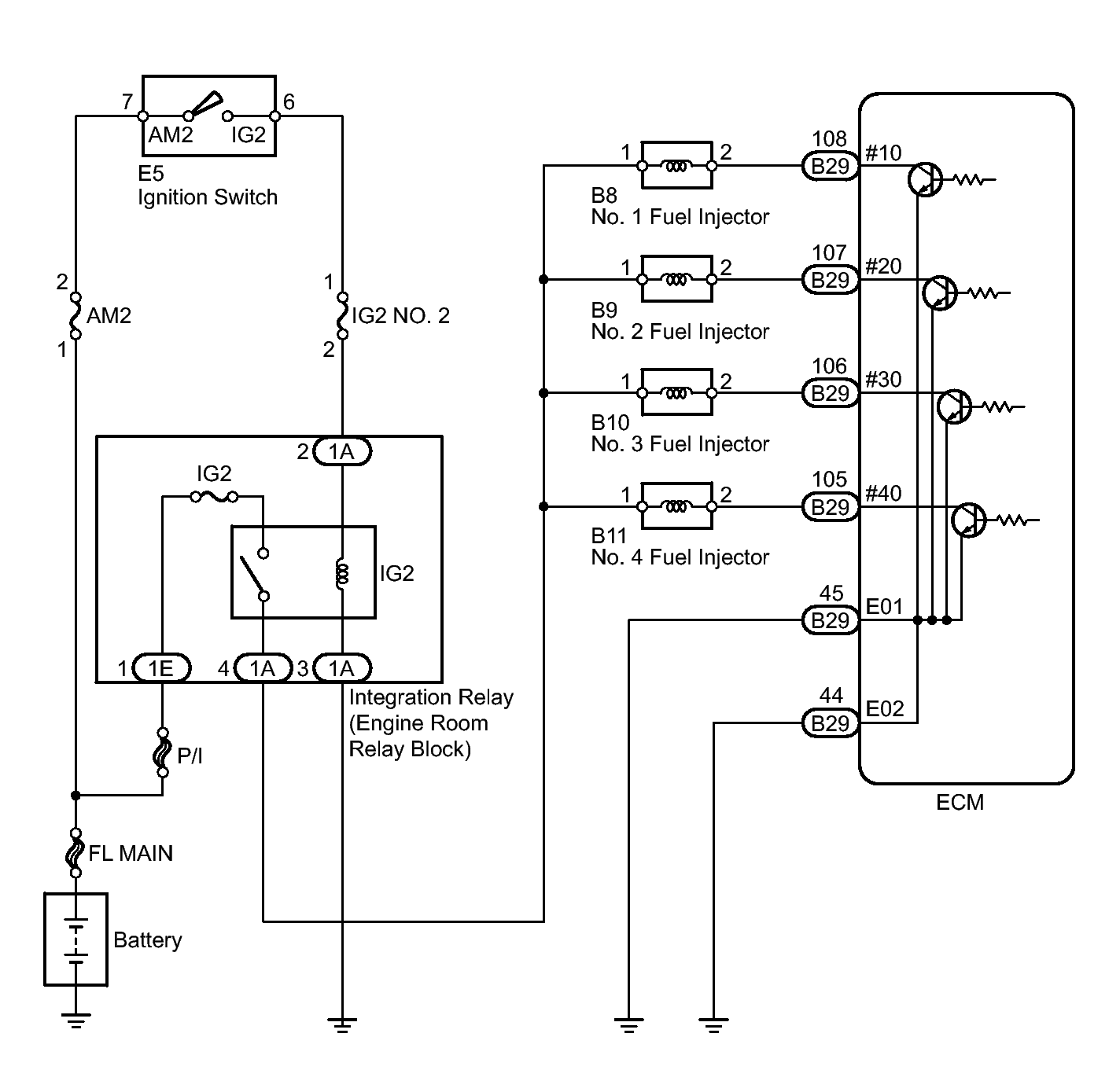

Fig 1: Identifying Fuel Injector Circuit Diagram
GTY238366Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
