DTC P2102: Throttle Actuator Control Motor Circuit Low; DTC P2103: Throttle Actuator Control Motor Circuit High: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.

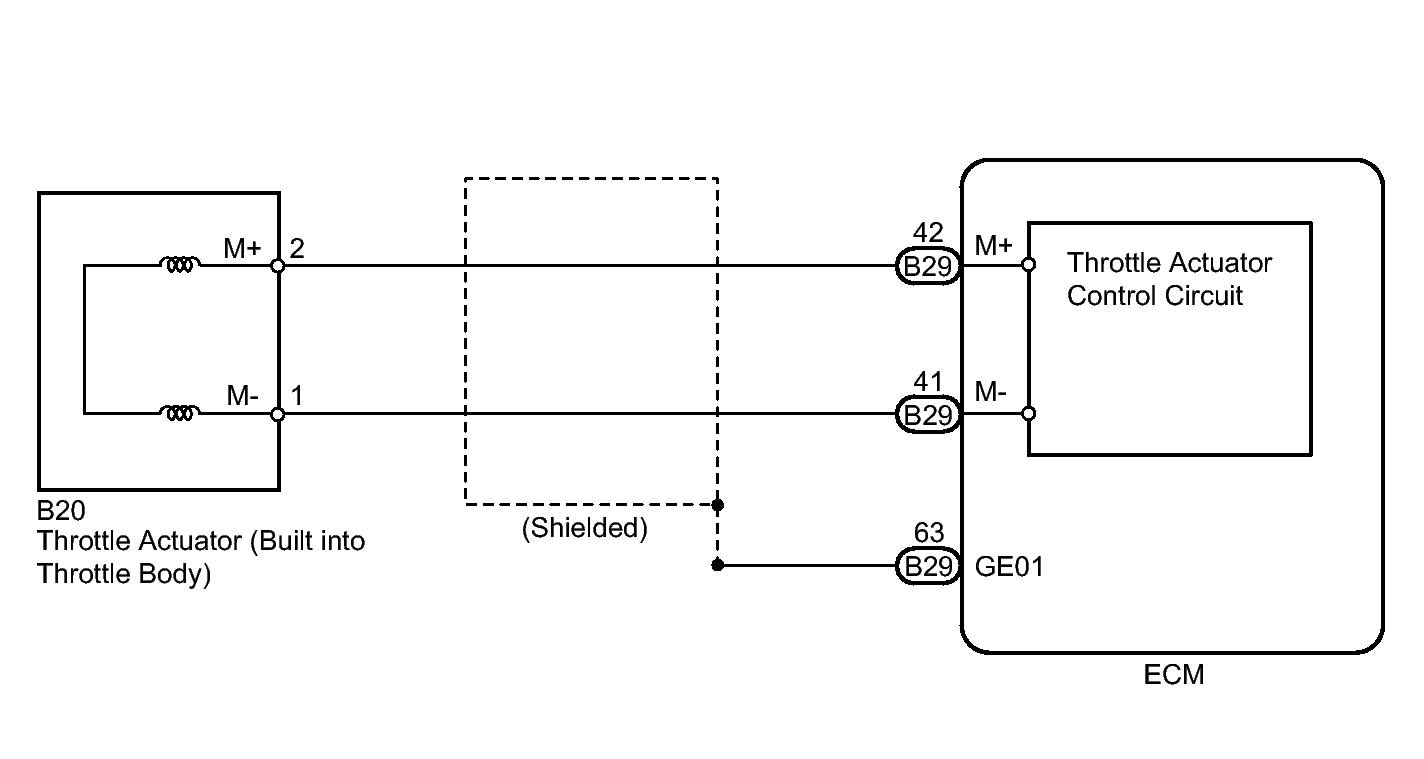

Fig 1: Identifying Throttle Actuator Control Motor Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
