Parts Location: Illustration

WARNING: This page is about a different variant/trim than selected.

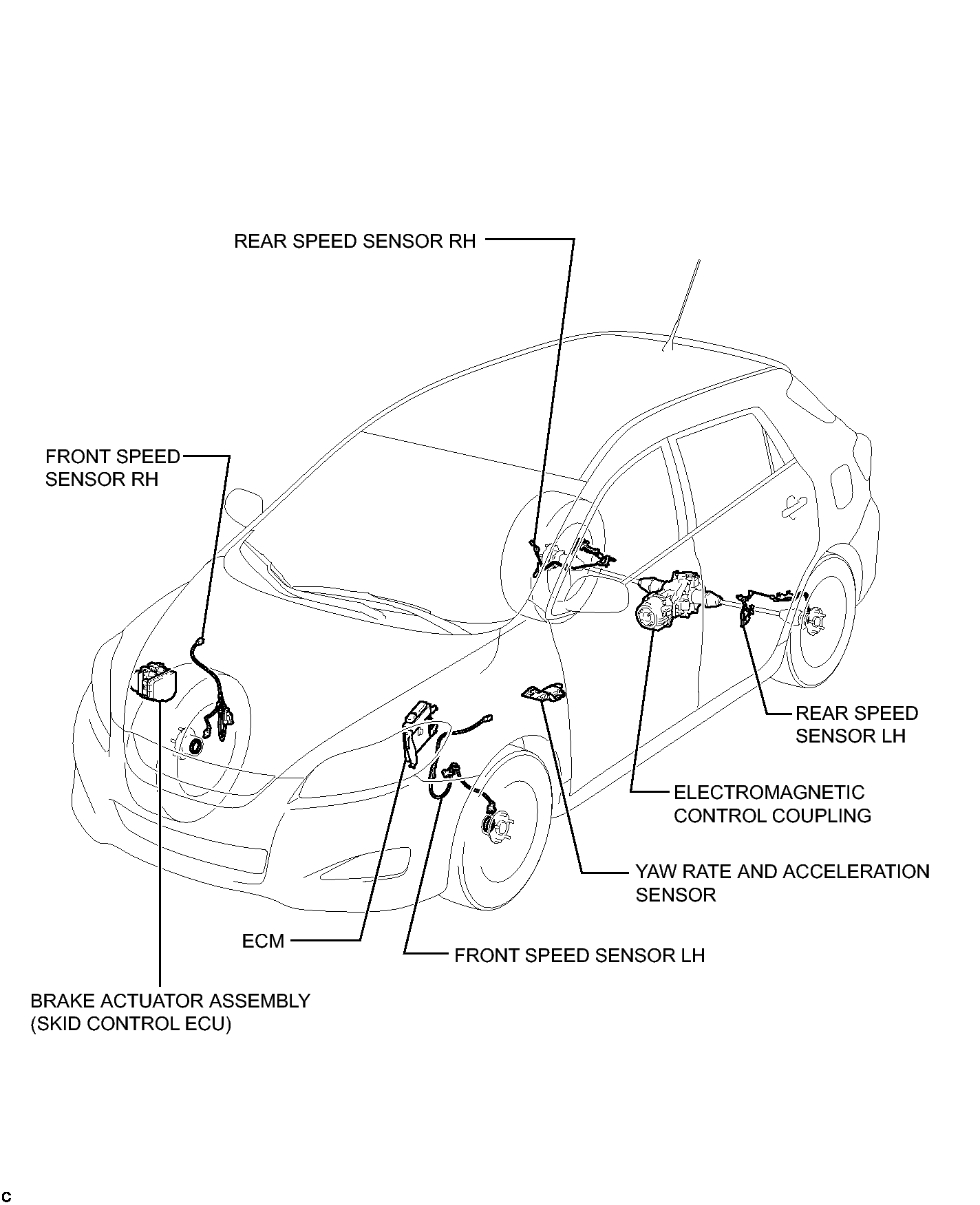

Fig 1: Active Torque Control Component Location (4WD) (1 Of 2)
GTY383554Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

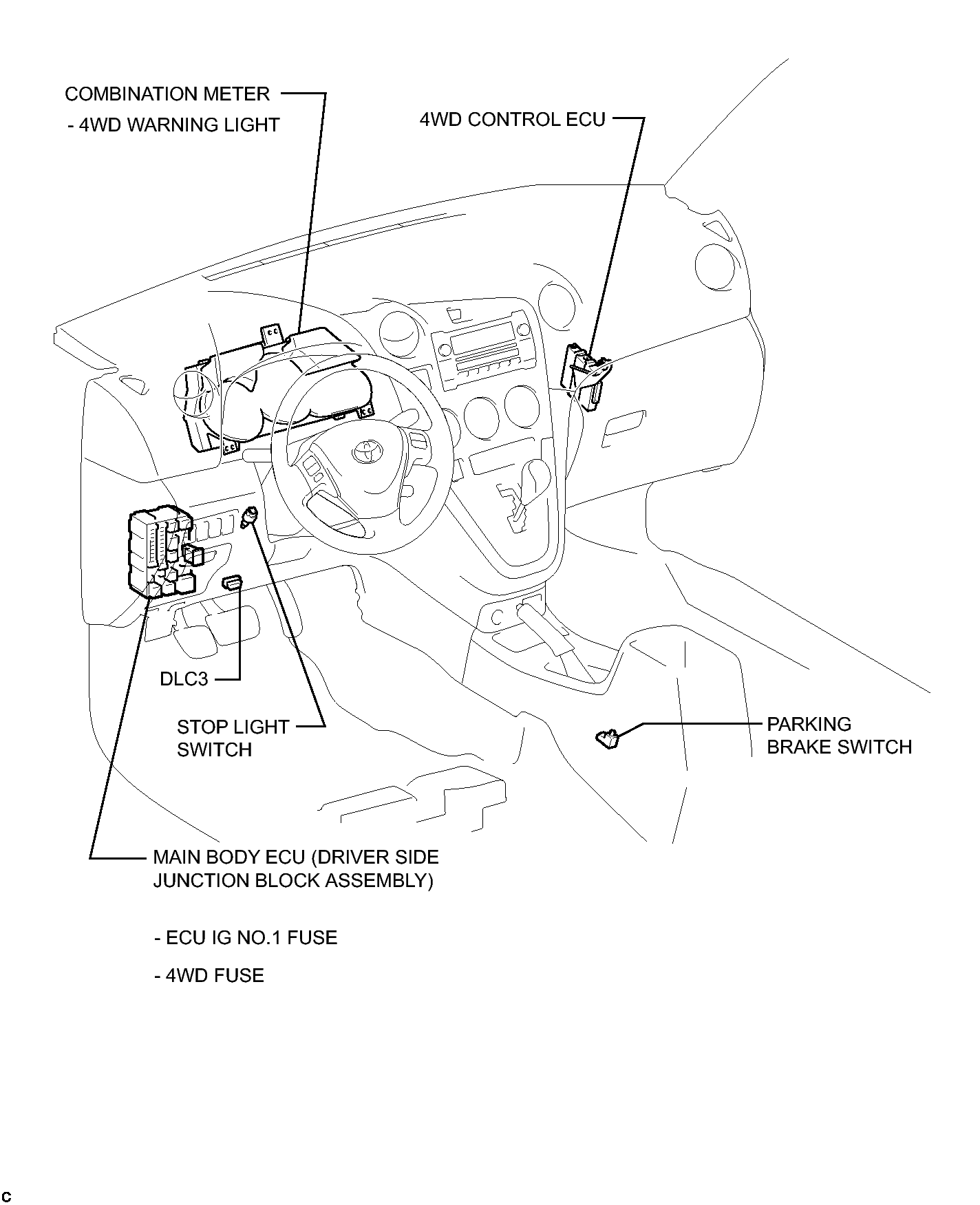

Fig 1: Active Torque Control Component Location (4WD) (2 Of 2)
GTY365704Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
