Limited Service Campaign - BST - Phase 1 & 2 (Interim B1T-TBD Phases) Multiple Models And Model Years Smart Stop Technology (T-CP-B1T)

Publication date: 2013-12-11
Reference number: T-CP-B1T

LIMITED SERVICE CAMPAIGN - BST - PHASE 1 & 2 (INTERIM B1T-TBD PHASES) MULTIPLE MODELS AND MODEL YEARS SMART STOP TECHNOLOGY

LIMITED SERVICE CAMPAIGN - BST - PHASE 1 & 2 (INTERIM B1T-TBD PHASES) MULTIPLE MODELS AND MODEL YEARS SMART STOP TECHNOLOGY

SERVICE CAMPAIGN BULLETIN

Reference Number(s): T-CP-B1T, Date of Issue:  December 11, 2013
TOYOTA: All Models
SERVICE CATEGORY: Phase 1 & 2 (Interim B1T-TBD Phases)
COPYRIGHT: © 2018 Toyota, USA License Agreement TMS1002

SUBJECT

On July 24, 2013 the settlement of claims for Economic Loss arising from allegations of unintended acceleration was approved. As part of the settlement Toyota will be launching the second phase of a Limited Service Campaign to install Smart Stop Technology on December 11, 2013  for the following models:

SMART STOP TECHNOLOGY INSTALLATION APPLICABLE MODELS

Phase Model Year Model Appx. Number of Covered Vehicles Production Range Software Availability Date LSC Expiration Date
1 2009-2010 Corolla 843,300 Late July, 2007 through Late December, 2010 8/7/2013 8/7/2015
2009-2010 Corolla Matrix 85,200 Early January, 2008 through Early December, 2010
2008-2010 Land Cruiser 8,600 Early September, 2007 through Early August, 2010
2 2008-2010 Highlander 277,900 Early March, 2007 through Early September, 2010 12/11/2013 12/11/2015
2006-2010 RAV4 761,000 Late July, 2005 through Early September, 2010
Interim B1T (1)  2003-2009 4Runner 603,100 Mid-May, 2002 through Mid-August, 2009 TBD TBD
2007-2010 Tundra 477,500 Late October, 2006 through Mid-August, 2010 TBD TBD
(1) VINs will be loaded on TIS under BST once the software has been released. If the software is not yet available the VINs will be searchable on TIS and display as applicable under Interim LSC B1T.

Please note this LSC will be launched in phases, the launch dates listed above will be updated as the Smart Stop Technology software becomes available

BACKGROUND

As part of the settlement described above, Toyota will install Smart Stop Technology on the above listed model and model year vehicles. This feature will cut engine power in case of simultaneous application of both the accelerator and brake pedal at certain speeds and in certain driving conditions.

Refer to Appendix A for a summary of models which previously received Smart Stop Technology under Safety Recall 90L.

LIMITED SERVICE CAMPAIGN (LSC) REMEDY

Any authorized Toyota dealer will update the ECM with Smart Stop Technology at NO CHARGE to the vehicle owner. This LSC will be available for 2 years from the availability of the Smart Stop Technology  , please refer to the table above for model specific expiration dates.

1. REFERENCE INFORMATION FOR OWNERS

All affected Customers were sent notification of the settlement terms by the court-appointed administrator, Gilardi&Company. No direct mailing from Toyota announcing this LSC will be issued at this time. Updates on availability of Smart Stop Technology and other settlement details will be posted on the settlement website, www.ToyotaELSettlement.com.  Customers with questions about the settlement should be directed to the settlement website, www.ToyotaELSettlement.com  , or asked to call 877-283-0507.

2. USED VEHICLES IN DEALERSHIP INVENTORY (IN-STOCK VEHICLES)

To ensure customer satisfaction, Toyota requests that dealers conduct the LSC remedy on any used vehicles currently in dealer inventory that are covered by this LSC prior to customer delivery.

3. NUMBER AND IDENTIFICATION OF COVERED VEHICLES

There are approximately 3.0 Million Toyota vehicles covered by this LSC. The entire LSC covers approximately 3.2 Million Toyota and Lexus vehicles. VINs will be loaded on TIS under BST once the software has been released. If the software is not yet available the VINs will be searchable on TIS and display as applicable under Interim LSC B1T  .

The following tables describe Phase 1 & 2 vehicles.

2008-2010 Land Cruiser Vehicles - Approx. UIO: 8,600

UIO MATRIX (2008-2010 LAND CRUISER VEHICLES)

MODEL WMI MY VDS START FINISH
Land Cruiser JTM 2008 HY05J 4000109 4002231
5000126 5003274
2009 4002232 4002768
Land cruiser JTM 2009 HY05J 5003275 5004872
2010 HY7AJ 4002769 4002898
5004875 5006774

2009-2010 Corolla Vehicles - Approx. UIO: 843,300

UIO MATRIX (2009-2010 COROLLA VEHICLES)

MODEL WMI MY VDS START FINISH
Corolla 1NX 2009 BE40E Z001001 Z163790
BU40E Z001002 Z165305
2010 BE4EE Z165306 Z342642
BU4EE Z165312 Z386543
2T1 2009 BE40E C001043 C030479
BU40E C001054 C191051
2010 BE4EE C030504 C046545
BU4EE C185955 C535879
JTD 2009 BL40E 9013744 9095008
BL40E J000111 J055039
2010 BU4EE 9093922 9123428
BU4EE J054618 J088021

2009-2010 Corolla Matrix Vehicle - Approx. UIO: 85,200

UIO MATRIX (2009-2010 COROLLA MATRIX VEHICLE)

MODEL WMI MY VDS START FINISH
Matrix 2T1 2009 GE40E C001023 C005748
KE40E C001042 C030591
KU40E C001057 C191049
LE40E C001017 C011935
2010 KE4EE C030606 C046553
KU4EE C191054 C535870
LE4EE C011822 C019001
ME4EE C005690 C006442

2008-2010 Highlander (Non Hybrid) - Approx. UIO: 277,900

UIO MATRIX - 2008-2010 HIGHLANDER (NON HYBRID)

MODEL WMI MY VDS START FINISH
Highlander 5TD 2010 BK3EH S001052 S040990
DK3EH S001067 S040994
EK3EH S001051 S008434
JK3EH S005002 S041004
KK3EH S003272 S023998
XK3EH S001026 S005688
YK3EH S001030 S023997
ZA3EH S001019 S007588
ZK3EH S001020 S024000
JTE 2008 DS41A 2000112 2068464
DS42A 2000113 2068462
DS43A 2000132 2068454
DS44A 2000303 2064340
ES41A 2000106 2109849
ES42A 2000114 2109852
2009 ES43A 2000123 2109853
DA41A 2000103 2008472
DS41A 2068119 2094128
DS42A 2068474 2094126
DS43A 2068125 2094127
DS44A 2068477 2094053
ES41A 2109861 2151438
ES42A 2109857 2151439
ES43A 2109855 2151432
2010 BK3EH 2149446 2167687
DK3EH 2151444 2167689
EK3EH 2151449 2156455
KK3EH 2094137 2101818
XK3EH 2094130 2102773
YK3EH 2094134 2106751
ZA3EH 2008099 2012036
ZK3EH 2094154 2106759

2006-2010 RAV4-Approx. UIO: 760,000

UIO MATRIX (2006-2010 RAV4)

MODEL WMI MY VDS START FINISH
RAV4 2T3 2009 BF31V W001119 W024119
BF32V WO01207 W024120
BF33V W001117 W024117
BF34V W003775 W021681
BF35V W001421 W024111
BK31V W001143 W013774
BK32V W001142 W013693
BK33V W001162 W013773
BK34V W001688 W010762
BK35V W002139 W013749
ZF31V W001050 W016880
ZF32V W001048 W016874
ZF33V W001049 W016918
ZF34V W003810 W012950
ZF35V W001625 W016916
ZK31V W001081 W003645
ZK32V W001149 W003642
ZK33V W001076 W003644
ZK34V W001670 W002621
ZK35V W001965 W003631
2010 BF4DV W022899 W082387
BK4DV W013775 W036881
DF4DV W024130 W082385
DK4DV W013776 W036900
EF4DV W024745 W069582
EK4DV W014634 W036700
JF4DV W024129 W082307
JK4DV W013811 W036888
KF4DV W016950 W052601
KK4DV W003824 W008864
RF4DV W022777 W082383
RK4DV W013813 W036821
WF4DV W016936 W052514
WK4DV W003659 W008863
XF4DV W018112 W052094
XK4DV W003701 W006779
YF4DV W016920 W052604
YK4DV W003435 W008860
ZF4DV W016923 W052607
ZK4DV W003652 W008861
JTM 2006 BD31V 5000052 5051226
6000010 6022606
BD32V 5000029 5051222
6000002 6022607
BD33V 5000007 5051264
6000046 6022596
BD34V 5000058 5051164
BD35V 5000031 5051248
BK31V 5000008 5012690
6000001 6010002
BK32V 5000003 5012686
6000003 6010006
BK33V 5000022 5012692
6000008 6009992
BK34V 5000002 5012673
BK35V 5000010 5012694
ZD31V 5000027 5032586
6000026 6020783
ZD32V 5000006 5032534
6000002 6020798
ZD33V 5000019 5032587
6000005 6020842
ZD34V 5000025 5032507
6000001 6000001
ZD35V 5000005 5032573
ZK31V 5000007 5005689
6000007 6003129
ZK32V 5000001 5005688
6000002 6003131
ZK33V 5000011 5005690
6000008 6003132
ZK34V 5000004 5005681
6000003 6000004
ZK35V 5000060 5005684
2007 BD31V 5051303 5124254
6022623 6054728
BD32V 5051315 5124285
6022613 6054737
BD33V 5051301 5124308
6022615 6054736
BD34V 5052182 5124303
BD35V 5051278 5124278
BK31V 5012706 5040741
6010008 6028074
BK32V 5012016 5040743
6010025 6028066
BK33V 5012697 5040747
6010022 6028069
BK34V 5012752 5040742
BK35V 5012701 5040698
ZD31V 5031315 5077936
6020846 6052970
ZD32V 5031131 5077984
6019942 6052984
ZD33V 5032593 5078025
6020843 6052993
ZD34V 5032641 5077858
ZD35V 5032630 5077997
ZK31V 5005691 5016136
6002895 6010016
ZK32V 5005392 5016123
6003133 6010013
ZK33V 5005699 5016137
6003135 6010017
ZK34V 5005692 5016122
ZK35V 5005728 5016021
2008 BD31V 5122515 5215912
6054747 6089730
BD32V 5124567 5215895
6054743 6089718
BD33V 5124318 5215928
6054075 6089729
BD34V 5124315 5215683
BD35V 5124310 5215906
BK31V 5040755 5071475
6028076 6050078
BK32V 5039902 5071462
6028075 6050082
BK33V 5040768 5071478
6028079 6050066
BK34V 5040763 5071435
BK35V 5040804 5071479
ZD31V 5078027 5117091
6052994 6081056
ZD32V 5078035 5117086
6052998 6081048
ZD33V 5076662 5117146
6052995 6081084
ZD34V 5078041 5117037
ZD35V 5078033 5117144
ZK31V 5015779 5024047
6010018 6016058
ZK32V 5016141 5024048
6010023 6016055
ZK33V 5016138 5024037
6010021 6016053
ZK34V 5016157 5024038
ZK35V 5016148 5024022
2009 BF31V 5000104 5017181
6000003 6000003
D000148 D021298
BF32V 5000105 5017187
6000000 6000000
D000170 D021282
BF33V 5000109 5017205
6000004 6000004
D000124 D021303
BF34V 5000106 5011765
BF35V 5000103 5017199
BK31V 5070458 5084189
6041373 6041905
D000125 D010236
BK32V 5057953 5084187
6049697 6049713
D000150 D010128
BK33V 5057681 5084128
D000101 D010235
BK34V 5071496 5084167
BK35V 5071507 5084172
ZF31V 5000103 5014236
6000000 6000002
D000102 D015503
ZF32V 5000110 5014237
6000001 6000004
D000101 D015507
ZF33V 5000105 5014242
6000003 6000007
D000109 D015511
ZF34V 5000120 5014170
ZF35V 5000104 5014232
ZK31V 5023836 5026109
D000103 D003176
ZK32V 5023823 5026102
6015916 6015951
D000112 D003174
ZK33V 5024054 5026039
6015898 6015967
D000101 D003135
ZK34V 5024061 5026106
ZK35V 5024071 5025801
2010 BF4DV 5017206 5037249
D021304 D039942
BK4DV 5084190 5098459
D010244 D017766
DF4DV 5017212 5037209
D021305 D039591
DK4DV 5084192 5098458
D010237 D017767
EF4DV 5021182 5033749
EK4DV 5084606 5096973
JF4DV 5017209 5037237
JK4DV 5084196 5098439
KF4DV 5014245 5032167
KK4DV 5026161 5027285
RF4DV 5017208 5037242
D021309 D039590
RK4DV 5084203 5098457
D010242 D017704
WF4DV 5014246 5032119
D015514 D028128
WK4DV 5026116 5027361
D003177 D004794
XF4DV 5016939 5031934
XK4DV 5026233 5027247
YF4DV 5013774 5032161
D015517 D029440
YK4DV 5026113 5027372
D003141 D004796
ZF4DV 5014243 5032169
D015512 D029469
ZK4DV 5026110 5027371
D003182 D004788

Prior to performing the Smart Stop Technology Software update please verify coverage by confirming through TIS  . Dealers should perform the procedure as outlined in the Technical Instructions located on TIS  .

4. PARTS ORDERING

This LSC involves an ECM Software Calibration update, no parts are required.

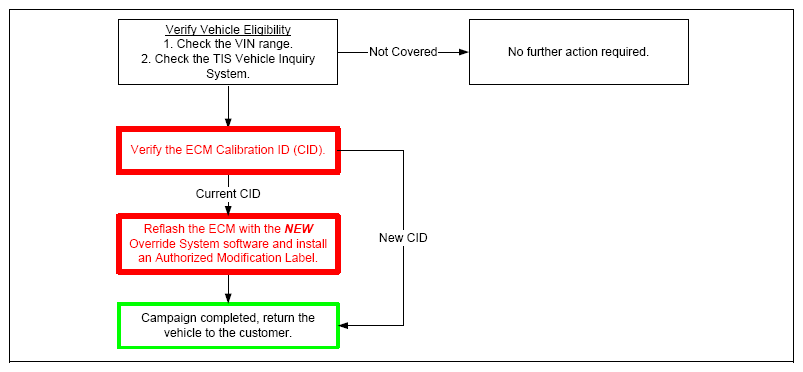

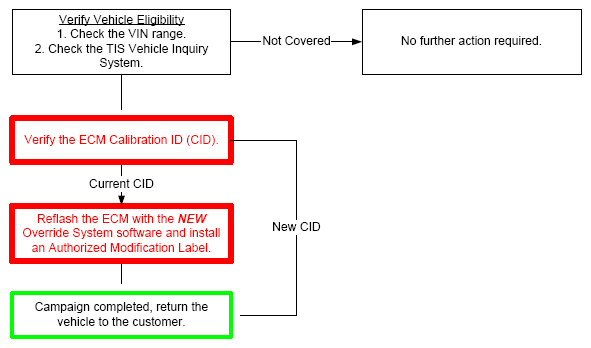

5. REMEDY PROCEDURES

Please refer to TIS for Technical Instructions. The Technical Instructions contain information on verifying the vehicle's ECM calibration and, if necessary, updating the calibration software.

Conduct all applicable, non-completed Safety Recall and Service Campaigns on the vehicle during the time of appointment.

6. WARRANTY REIMBURSEMENT PROCEDURE

G08982626Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
WARRANTY REIMBURSEMENT PROCEDURE

LSC Model Op. Code Description Flat Rate

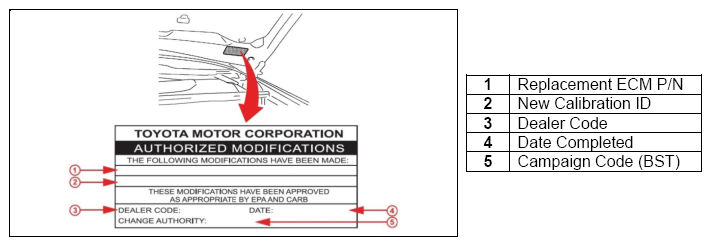

BST ALL ELSBOS Update ECM Software and Install Update Label 0.8 hr/vehicle

7. REPAIR QUALITY CONFIRMATION

The repair quality of covered vehicles is extremely important to Toyota. To help ensure that all vehicles have the repair performed correctly, please designate at least one associate (someone other than the individual who performed the repair) to verify the repair quality of every vehicle prior to customer delivery.

8. MEDIA CONTACTS

It is imperative that all media contacts (local and national) receive a consistent message. In this regard, all media contacts must be directed to Toyota Corporate Communications. (Please do not provide this number to customers. Please provide this contact to only media associates.)

9. CUSTOMER CONTACTS

Customers may contact your dealership with questions regarding the LSC remedy. Please welcome them to your dealership and answer any questions that they may have. A Q&A is provided to assure a consistent message is communicated.

Customers with additional questions or concerns are asked to please contact the Toyota Customer Experience Center (1-888-270-9371).

Please review this entire package with your Service and Parts staff to familiarize them with the proper step-by-step procedures required to implement this Limited Service Campaign.

Thank you for your cooperation.

TOYOTA MOTOR SALES, U.S.A., INC.

APPENDIX

90L PROCEDURE SUMMARY REFERENCE CHART

90L PROCEDURE SUMMARY REFERENCE CHART

Model Pedal Pedal Modification AWFM Tibia Pad Rubber Stopper Carpet Reshape BOS Clean Carpet as Needed
Avalon CTS X X X X X X X
Camry Denso X X X X X X (2) X
CTS X X X X X X (2) X
Sports Pedal(1) Replace the factory installed metallic accelerator sports pedal foot  pad with a newly designed one X X X X X X
Corolla&Matrix Denso X X X X (3) X   X
CTS X X X X (3) X   X
Highlander Denso X X         X
CTS X X         X
Prius Denso X X         X
Tacoma Denso X X       X X
Tundra CTS X X         X
Venza Denso X X   X X X X
4Runner Denso X X         X
RAV4 CTS X X         X
Denso X X         X
Land Cruiser Denso X X         X
* Some supplemental templates may not have the stamping.
(1) Factory Installed Metallic Sports Pedal - Safety Recall 90L Phase
(2) Part number is specific to Corolla&Matrix.
(3) Non-Hybrid Camry Vehicles ONLY.

LIMITED SERVICE CAMPAIGN Q&A

Limited Service Campaign - BST

Multiple Models and Model Years

Smart Stop Technology

Customer Frequently Asked Questions

Published August 1, 2013 (Phase 1)

Updated December 11, 2013 (Phase 2)

We are providing the following information to keep you informed of the Limited Service Campaign details.

Q1: What is Toyota offering and why?

A1: On July 24, 2013 a settlement of claims for Economic Loss arising from allegations of unintended acceleration was approved. As part of the settlement, Toyota will initiate a Limited Service Campaign (LSC) to install Smart Stop Technology on the models listed in the following table. This feature will cut engine power in case of simultaneous application of both the accelerator and brake pedals at certain speeds and under certain driving conditions. This LSC will be available for 2 years from the availability of the Smart Stop Technology for each applicable model  . Please refer to the following table for model specific expiration dates.

MODELS WITH LSC EXPIRATION DATE

Phase Model Year Model Appx. UIO Software Availability Date LSC Expiration Date
1 2009-2010 Corolla 843,300 08/07/2013 08/07/2015
2009-2010 Corolla Matrix 85,200
2008-2010 Land Cruiser 8,600
2 22000086-22001100 Highlander 277,900 12/11/2013 12/11/2015
2006-2010 RAV4 761,000
TBD 2003-2009 4Runner 603,100 TBD TBD
2007-2010 Tundra 477,500 TBD TBD

Q2: How does the Smart Stop Technology operate?

A2: Smart Stop Technology cuts engine power in case of simultaneous application of both the accelerator and brake pedals at certain speeds and in certain driving conditions.

When Smart Stop Technology is engaged, engine output is cut to the idle position, reducing the load on the brakes. System logic helps ensure Smart Stop does not engage when it is not needed or might be inconvenient in certain driving conditions.

For example, the system will not activate in 4WD vehicles while driving in the low range. This system also allows the driver, for instance, to depress the brake pedal in conjunction with the accelerator pedal when starting on a steep hill. No matter the situation, activation is canceled when the brake pedal is released.

Q3: Which and how many vehicles are covered by this Limited Service Campaign?

A3: There are approximately 3.0 Million Toyota vehicles covered by this LSC. The entire LSC covers approximately 3.2 Million Toyota and Lexus vehicles. Please refer to the following table for model specific details.

LSC COVERED VEHICLE RANGE

Phase Model Year Model Production Date Range Appx. UIO
1 2009-2010 Corolla Late July, 2007 through Late December, 2010 843,300
2009-2010 Corolla Matrix Early January, 2008 through Early December, 2010 85,200
2008-2010 Land Cruiser Early September, 2007 through Early August, 2010 8,600
2 2008-2010 Highlander Early March, 2007 through Early September, 2010 277,900
2006-2010 RAV4 Late July, 2005 through Early September, 2010 761,000
TBD 2003-2009 4Runner Mid-May, 2002 through Mid-August, 2009 603,100
2007-2010 Tundra Late October, 2006 through Mid-August, 2010 477,500

Q3a: Are there any Lexus or Scion vehicles covered by this Limited Service Campaign?

A3a: Yes, please reference the following table for Lexus models covered by this Limited Service Campaign.

LSC COVERED VEHICLE RANGE

Phase Model Year Model Production Range Appx. UIO
1 2008-2010 LX 570 Mid-July, 2007 through Early May, 2010 13,800
2010 RX 350 Early December, 2008 through Early September, 2010 131,800

Q4: How will Toyota notify owners about this Limited Service Campaign?

A4: Starting in early February 2013, owner notifications were mailed to owners by the court appointed administrator, Gilardi and Company. Approximately 22 million notices were mailed to Toyota and Lexus customers informing them of the settlement. In early March 2013, notice of the settlement was also run in select U.S. publications along with banner ads which were posted on the internet.

Q5: How long will it take to install the Smart Stop Technology software?

A5: The software installation will take approximately 45 minutes. However, depending upon the dealer's work schedule, it may be necessary to make your vehicle available for a longer period of time.

Q6: When does this Limited Service Campaign expire?

A6: This LSC will be available for 2 years from the availability of the Smart Stop Technology. Please refer to the table in A1 for model specific expiration dates. Any authorized Toyota dealer will install the Smart Stop Technology at no charge  to the vehicle owner prior to the model specific expiration date.

Q7: What if an owner has additional questions or concerns about the LSC?

A7: Owners with questions or concerns are asked to please contact the Toyota Customer Experience Center at 1-888-270-9371 Monday through Friday, 5:00 am to 6:00 pm, or Saturday 7:00 am through 4:00 pm Pacific Time.

Q8: What if an owner has additional questions or concerns about the settlement?

A8: Inquiries regarding the settlement should be directed to the court-appointed administrator, Gilardi&Company. Customers with questions about the settlement should be directed to the settlement website, www.ToyotaELSettlement.com  , or asked to call 877-283-0507.

TECHNICAL INSTRUCTIONS

FOR

LIMITED SERVICE CAMPAIGN BST

SMART STOP TECHNOLOGY (ECM) REFLASH

2009-2010 COROLLA

2009-2010 COROLLA MATRIX

2008-2010 LAND CRUISER

2006-2010 RAV4

2008-2010 HIGHLANDER

UPDATED DECEMBER 11, 2013

Update 12/11/2013

- The TI has been updated to include the calibrations for the second phase of vehicles. (SECTION II and SECTION V)

I. OPERATION FLOW CHART

G08982627Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

II. IDENTIFICATION OF AFFECTED VEHICLES

AFFECTED VEHICLES RANGE (2009-2010 COROLLA VEHICLES)

MODEL WMI MY VDS START FINISH
Corolla 1NX 2009 BE40E Z001001 Z163790
BU40E Z001002 Z165305
2010 BE4EE Z165306 Z342642
BU4EE Z165312 Z386543
2T1 2009 BE40E C001043 C030479
BU40E C001054 C191051
2010 BE4EE C030504 C046545
BU4EE C185955 C535879
JTD 2009 BL40E 9013744 9095008
BL40E J000111 J055039
2010 BU4EE 9093922 9123428
BU4EE J054618 J088021
AFFECTED VEHICLES RANGE (2009-2010 COROLLA MATRIX VEHICLES)

MODEL WMI MY VDS START FINISH
Matrix 2T1 2009 GE40E C001023 C005748
KE40E C001042 C030591
KU40E C001057 C191049
LE40E C001017 C011935
KE4EE C030606 C046553
KU4EE C191054 C535870
LE4EE C011822 C019001
ME4EE C005690 C006442

2008-2010 Land Cruiser Vehicles

AFFECTED VEHICLES RANGE (2008-2010 LAND CRUISER VEHICLES)

MODEL WMI MY VDS START FINISH
Land Cruiser JTM 2008 HY05J 4000109 4002231
5000126 5003274
2009 4002232 4002768
5003275 5004872
2010 HY7AJ 4002769 4002898
5004875 5006774

2008-2010 Highlander (Non Hybrid)

AFFECTED VEHICLES RANGE - 2008-2010 HIGHLANDER (NON HYBRID)

MODEL WMI MY VDS START FINISH
Highlander 5TD 2010 BK3EH S001052 S040990
DK3EH S001067 S040994
EK3EH S001051 S008434
JK3EH S005002 S041004
KK3EH S003272 S023998
XK3EH S001026 S005688
YK3EH S001030 S023997
ZA3EH S001019 S007588
ZK3EH S001020 S024000
JTE 2008 DS41A 2000112 2068464
DS42A 2000113 2068462
DS43A 2000132 2068454
DS44A 2000303 2064340
ES41A 2000106 2109849
ES42A 2000114 2109852
ES43A 2000123 2109853
2009 DA41A 2000103 2008472
DS41A 2068119 2094128
DS42A 2068474 2094126
DS43A 2068125 2094127
DS44A 2068477 2094053
ES41A 2109861 2151438
ES42A 2109857 2151439
ES43A 2109855 2151432
2010 BK3EH 2149446 2167687
DK3EH 2151444 2167689
EK3EH 2151449 2156455
KK3EH 2094137 2101818
XK3EH 2094130 2102773
YK3EH 2094134 2106751
ZA3EH 2008099 2012036
ZK3EH 2094154 2106759

2006-2010 RAV4

AFFECTED VEHICLES RANGE (2006-2010 RAV4)

MODEL WMI MY VDS START FINISH
RAV4 2T3 2009 BF31V W001119 W024119
BF32V W001207 W024120
BF33V W001117 W024117
BF34V W003775 W021681
BF35V W001421 W024111
BK31V W001143 W013774
BK32V W001142 W013693
BK33V W001162 W013773
BK34V W001688 W010762
BK35V W002139 W013749
ZF31V W001050 W016880
ZF32V W001048 W016874
ZF33V W001049 W016918
ZF34V W003810 W012950
ZF35V W001625 W016916
ZK31V W001081 W003645
ZK32V W001149 W003642
ZK33V W001076 W003644
ZK34V W001670 W002621
ZK35V W001965 W003631
2010 BF4DV W022899 W082387
BK4DV W013775 W036881
DF4DV W024130 W082385
DK4DV W013776 W036900
EF4DV W024745 W069582
EK4DV W014634 W036700
JF4DV W024129 W082307
JK4DV W013811 W036888
KF4DV W016950 W052601
KK4DV W003824 W008864
RF4DV W022777 W082383
RK4DV W013813 W036821
WF4DV W016936 W052514
WK4DV W003659 W008863
XF4DV W018112 W052094
XK4DV W003701 W006779
YF4DV W016920 W052604
YK4DV W003435 W008860
ZF4DV W016923 W052607
ZK4DV W003652 W008861
JTM 2006 BD31V 5000052 5051226
6000010 6022606
BD32V 5000029 5051222
6000002 6022607
BD33V 5000007 5051264
6000046 6022596
BD34V 5000058 5051164
BD35V 5000031 5051248
BK31V 5000008 5012690
6000001 6010002
BK32V 5000003 5012686
6000003 6010006
BK33V 5000022 5012692
6000008 6009992
BK34V 5000002 5012673
BK35V 5000010 5012694
ZD31V 5000027 5032586
6000026 6020783
ZD32V 5000006 5032534
6000002 6020798
ZD33V 5000019 5032587
6000005 6020842
ZD34V 5000025 5032507
6000001 6000001
ZD35V 5000005 5032573
ZK31V 5000007 5005689
6000007 6003129
ZK32V 5000001 5005688
6000002 6003131
ZK33V 5000011 5005690
6000008 6003132
ZK34V 5000004 5005681
6000003 6000004
ZK35V 5000060 5005684
2007 BD31V 5051303 5124254
6022623 6054728
BD32V 5051315 5124285
6022613 6054737
BD33V 5051301 5124308
6022615 6054736
BD34V 5052182 5124303
BD35V 5051278 5124278
BK31V 5012706 5040741
6010008 6028074
BK32V 5012016 5040743
6010025 6028066
BK33V 5012697 5040747
6010022 6028069
BK34V 5012752 5040742
BK35V 5012701 5040698
ZD31V 5031315 5077936
6020846 6052970
ZD32V 5031131 5077984
6019942 6052984
ZD33V 5032593 5078025
6020843 6052993
ZD34V 5032641 5077858
ZD35V 5032630 5077997
ZK31V 5005691 5016136
6002895 6010016
ZK32V 5005392 5016123
6003133 6010013
ZK33V 5005699 5016137
6003135 6010017
ZK34V 5005692 5016122
ZK35V 5005728 5016021
2008 BD31V 5122515 5215912
6054747 6089730
BD32V 5124567 5215895
6054743 6089718
BD33V 5124318 5215928
6054075 6089729
BD34V 5124315 5215683
BD35V 5124310 5215906
BK31V 5040755 5071475
6028076 6050078
BK32V 5039902 5071462
6028075 6050082
BK33V 5040768 5071478
6028079 6050066
BK34V 5040763 5071435
BK35V 5040804 5071479
ZD31V 5078027 5117091
6052994 6081056
ZD32V 5078035 5117086
6052998 6081048
ZD33V 5076662 5117146
6052995 6081084
ZD34V 5078041 5117037
ZD35V 5078033 5117144
ZK31V 5015779 5024047
6010018 6016058
ZK32V 5016141 5024048
6010023 6016055
ZK33V 5016138 5024037
6010021 6016053
ZK34V 5016157 5024038
ZK35V 5016148 5024022
2009 BF31V 5000104 5017181
6000003 6000003
D000148 D021298
BF32V 5000105 5017187
6000000 6000000
D000170 D021282
BF33V 5000109 5017205
6000004 6000004
D000124 D021303
BF34V 5000106 5011765
BF35V 5000103 5017199
BK31V 5070458 5084189
6041373 6041905
D000125 D010236
BK32V 5057953 5084187
6049697 6049713
D000150 D010128
BK33V 5057681 5084128
D000101 D010235
BK34V 5071496 5084167
BK35V 5071507 5084172
ZF31V 5000103 5014236
6000000 6000002
D000102 D015503
ZF32V 5000110 5014237
6000001 6000004
D000101 D015507
ZF33V 5000105 5014242
6000003 6000007
D000109 D015511
ZF34V 5000120 5014170
ZF35V 5000104 5014232
ZK31V 5023836 5026109
D000103 D003176
ZK32V 5023823 5026102
6015916 6015951
D000112 D003174
ZK33V 5024054 5026039
6015898 6015967
D000101 D003135
ZK34V 5024061 5026106
ZK35V 5024071 5025801
2010 BF4DV 5017206 5037249
D021304 D039942
BK4DV 5084190 5098459
D010244 D017766
DF4DV 5017212 5037209
D021305 D039591
DK4DV 5084192 5098458
D010237 D017767
EF4DV 5021182 5033749
EK4DV 5084606 5096973
JF4DV 5017209 5037237
JK4DV 5084196 5098439
KF4DV 5014245 5032167
KK4DV 5026161 5027285
RF4DV 5017208 5037242
D021309 D039590
RK4DV 5084203 5098457
D010242 D017704
WF4DV 5014246 5032119
D015514 D028128
WK4DV 5026116 5027361
D003177 D004794
XF4DV 5016939 5031934
XK4DV 5026233 5027247
YF4DV 5013774 5032161
D015517 D029440
YK4DV 5026113 5027372
D003141 D004796
ZF4DV 5014243 5032169
D015512 D029469
ZK4DV 5026110 5027371
D003182 D004788
NOTE:
  • Check the TIS Vehicle Inquiry System to confirm the VIN is covered in this Limited Service Campaign, and that the campaign has not already been completed prior to dealer shipment or by another dealer.
  • TMS warranty will not reimburse dealers for repairs conducted on vehicles that are not affected or were completed by another dealer.

III. PREPARATION

A. PARTS
PARTS DESCRIPTION

Part Number Part Description Quantity
00451-00001-LBL Authorized Modification Label(1) 1
(1) Labels can be ordered in packs of 25 from the MDC through Dealer Daily website
B. TOOLS&EQUIPMENT
  • Techstream 2.0/TIS Techstream/Techstream Lite (Software 7.31 or Higher)
  • GR8 Battery Diagnostic Station

IV. BACKGROUND

As part of the settlement described above, Toyota will install Smart Stop Technology on the above listed model and model year vehicles. This feature will cut engine power in case of simultaneous application of both the accelerator and brake pedal at certain speeds and in certain driving conditions.

This LSC will be available for 2 years from the availability of the Smart Stop Technology  for that model, please refer to the table in the dealer letter for model specific expiration dates.

V. ECM CALIBRATION ID VERIFICATION

  1. CONFIRM THE ECM CALIBRATION ID
    1. Perform a health check and confirm no DTCs are present.
    2. Confirm the current calibration ID in the ECM.
    3. Referencing the table below, verify if the ECM has the Updated Calibration
      ECM UPDATION CALIBRATION

      Model Model Year Engine Transmission Current CID New CID
      Corolla 2009 2AZFE MT 30270000
      30270100      		 30270200
      5AT 30288000
      30288100
      30288200
      30288300      		 30288400
      2ZRFE MT 30285000
      30285100
      30285200
      30285300
      30285400
      30285500      		 30285600
      302G9000
      302G9100
      302G9200
      302G9300
      302G9400      		 302G9500
      AT 302A4000
      302A4100
      302A4200
      302A4300
      302A4400
      302A4500      		 302A4600
      302G8000
      302G8100
      302G8200
      302G8300
      302G8400      		 302G8500
      2010 2AZFE MT 302J2000
      302J2100      		 302J2200
      5AT 302J1000
      302J1100
      302J1200      		 302J1300
      2ZRFE MT 302G9000
      302G9100
      302G9200
      302G9300
      302G9400      		 302G9500
      AT 302G8000
      302G8100
      302G8200
      302G8300
      302G8400      		 302G8500
      Matrix 2009 2AZFE MT 30270000
      30270100      		 30270200
      5AT 30280000
      30280100
      30280200
      30280300      		 30280400
      30282000
      30282100
      30282200
      30282300      		 30282400
      4WD 30283000
      30283100      		 30283200
      2ZRFE MT 30285000
      30285100
      30285200
      30285300
      30285400
      30285500      		 30285600
      302G9000
      302G9100
      302G9200
      302G9300
      302G9400      		 302G9500
      AT 30284000
      30284100
      30284200
      30284300
      30284400
      30284500      		 30284600
      302J5000
      302J5100
      302J5200
      302J5300
      302J5400      		 302J5500
      2010 2AZFE MT 302J2000
      302J2100      		 302J2200
      5AT 302J7000
      302J7100
      302J7200      		 302J7300
      302J8000
      302J8100
      302J8200      		 302J8300
      4WD 302J9000
      302J9100      		 302J9200
      2ZRFE MT 302G9000
      302G9100
      302G9200
      302G9300
      302G9400      		 302G9500
      AT 302J5000
      302J5100
      302J5200
      302J5300
      302J5400      		 302J5500
      Land Cruiser 2008-2009 3URFE AT 360C2000
      360C2100
      360C2200
      360C2300
      360C2400
      360C2500      		 360C2600
      2010 3URFE AT 360D8000
      360D8100      		 360D8200
      Highlander 2008-2010 2GRFE 2WD 348A7000
      348A7100
      348A7200
      348E6000
      348E6100      		 348E6200
      4WD 348A8000
      348A8100
      348A8200
      348E7000
      348E7100      		 348E7200
      2009-2010 1ARFE 2WD 348E3000
      348E3100      		 348E3200
      RAV4 2006 2GRFE 2WD 34265000
      34265100      		 34265200
      4WD 34264000
      34264100      		 34264200
      2007 2GRFE 2WD 34276000 34276100
      4WD 34275000 34275100
      2006-2008 2AZFE 2WD 34248000
      34248100
      34271000
      34271100
      34282000
      34282100
      34282200      		 34282300
      4WD 34249000
      34249100
      34272000
      34272100
      34283000
      34283100
      34283200      		 34283300
      2GRFE 2WD 34285000
      34285100
      34285200      		 34285300
      4WD 34286000
      34286100
      34286200      		 34286300
      2009-2010 2ARFE 2WD 34287000
      34287100
      342F0100
      342F0200      		 342F0300
      4WD 34288000
      34288100
      342F1100
      342F1200      		 342F1300
      2GRFE 2WD 342A1000
      342A1100
      342A1200      		 342A1300
      4WD 342A3000
      342A3100
      342A3200      		 342A3300
      G08982628Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • If the ECM has already been calibrated with the new calibration the campaign is complete.

VI. ECM REFLASH PROCEDURE

G08982629Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  • For general reprogramming procedures, refer to T-SB-0012-13 .
  • Confirm the latest version of Techstream software is being used.
  • If the Techstream does not have sufficient battery power the reflash will fail.
  • Confirm the DLC3 cable is in good condition before attempting reflash.
  • If vehicle exhibits any trouble codes or drivability symptoms, diagnose and repair using TIS before attempting to reprogram the ECM.
  1. CONNECT THE GR8
    1. Set the GR8 to Power Supply Mode to help maintain 13.5 volts during ECM reprogramming.
    G08982630Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    • A battery charger set to power supply mode MUST be used during reprogramming.
    • ECM damage may occur if the correct battery charger setting is not used.
  2. REFLASH THE ECM
    1. Click yes on the health check results screen, or follow the links on the table above to begin the reflash process.
  3. ATTACH THE AUTHORIZED VEHICLE MODIFICATION LABEL
    1. Fill out the label.
    2. Affix the label to the under-side of the hood.
      G08982631Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. CHECK FOR DTCs

    < VERIFY REPAIR QUALITY >

    • Confirm the GR8 is set up properly prior to beginning the reprogramming
    • Confirm the reflash completes successfully
    • Confirm the Authorized Vehicle Modification Label is filled out and affixed to the vehicle
    • Confirm there are no DTCs in the ECM

      If you have any questions regarding this update, please contact your regional representative

VII. APPENDIX

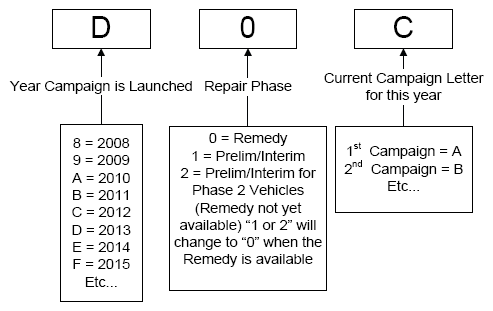

A. CAMPAIGN DESIGNATION DECODER
G08982632Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Examples:

A0D = Launched in 2010, Remedy Phase, 4th Campaign Launched in 2010

B1E = Launched in 2011, Interim Phase, 5rd Campaign Launched in 2011

C1C = Launched in 2012, Interim Phase, 3rd Campaign Launched in 2012

scientia non olet · About LEMON Manuals
