DTC B1773: Belt Tension Sensor Circuit Malfunction; DTC B1776: Seat Belt Tension Sensor Power Source Circuit Malfunction: Procedure

  1. CHECK CONNECTORS
    1. Turn the ignition switch off.
    2. Disconnect the cable from the negative (-) battery terminal.
    3. Check that the connectors are properly connected to the occupant classification ECU and the seat belt tension sensor.

      OK

      The connectors are properly connected.

      HINT:

      If the connectors are not connected securely, reconnect the connectors and proceed to the next inspection.

    4. Disconnect the connectors from the occupant classification ECU and the seat belt tension sensor.
    5. Check that the terminals of the connectors are not damaged.

      OK

      The terminals are not deformed or damaged.

    NG → REPLACE WIRE HARNESS

    OK: Go to next step

  2. CHECK SEAT BELT TENSION SENSOR CIRCUIT (SHORT TO B+)
    1. Connect the cable to the negative (-) battery terminal.

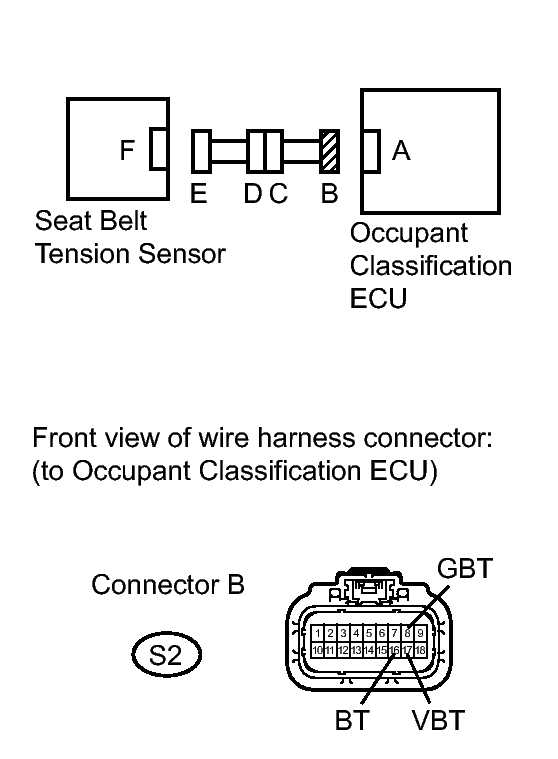

      Fig 1: Checking Seat Belt Tension Sensor Circuit (Short To B+)
      GTY244936Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Turn the ignition switch to ON.
    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Switch Condition Specified Condition
      S2-8 (GBT) - Body ground Ignition switch ON Below 1 V
      S2-16 (BT) - Body ground Ignition switch ON Below 1 V
      S2-17 (VBT) - Body ground Ignition switch ON Below 1 V

    NG → See step   11

    OK: Go to next step

  3. CHECK SEAT BELT TENSION SENSOR CIRCUIT (OPEN)
    1. Turn the ignition switch off.

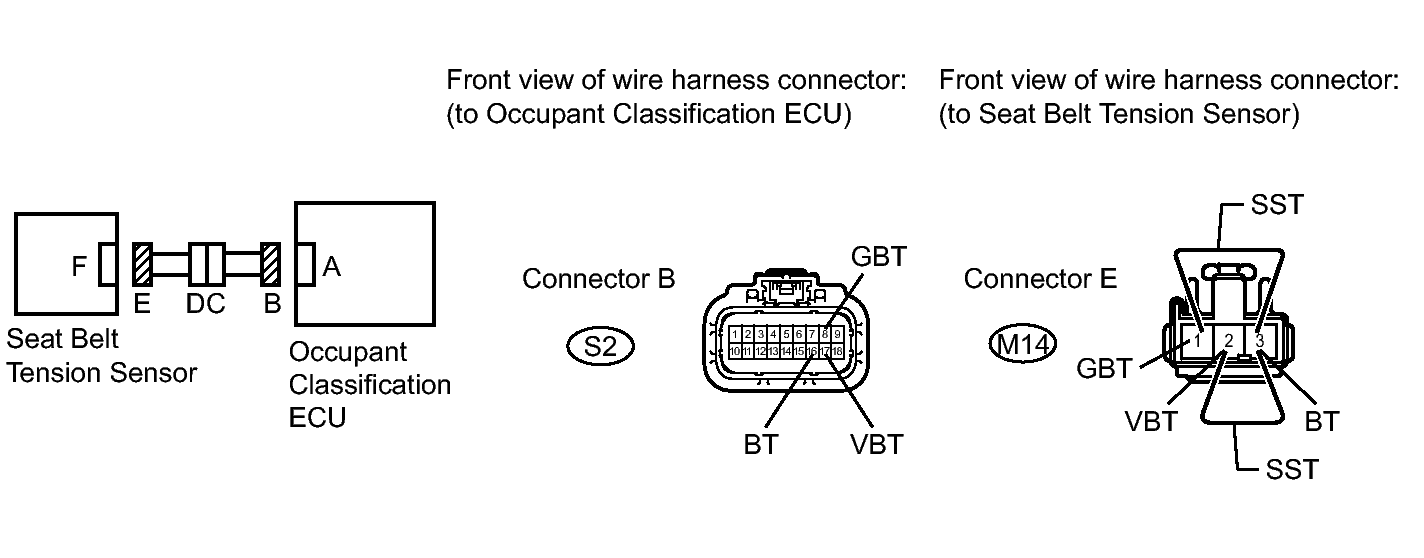

      Fig 2: Checking Seat Belt Tension Sensor Circuit (Open)
      GTY244935Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the cable from the negative (-) battery terminal.
    3. Using SST, connect terminals 1 (GBT) and 3 (BT), and connect terminals 2 (VBT) and 3 (BT) of connector E.
      NOTE:

      Do not forcibly insert SST into the terminals of the connector.

      • SST: 09843-18040
    4. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      S2-16 (BT) - S2-8 (GBT) Always Below 1 Ω
      S2-17 (VBT) - S2-16 (BT) Always Below 1 Ω

    NG → See step   12

    OK: Go to next step

  4. CHECK SEAT BELT TENSION SENSOR CIRCUIT (SHORT TO GROUND)
    1. Disconnect SST from connector E.
      Fig 3: Checking Seat Belt Tension Sensor Circuit (Short To B+)
      GTY244936Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      S2-8 (GBT) - Body ground Always 1 MΩ or higher
      S2-16 (BT) - Body ground Always 1 MΩ or higher
      S2-17 (VBT) - Body ground Always 1 MΩ or higher

    NG → See step   13

    OK: Go to next step

  5. CHECK SEAT BELT TENSION SENSOR CIRCUIT (SHORT)
    1. Measure the resistance according to the value(s) in the table below.
      Fig 4: Checking Seat Belt Tension Sensor Circuit (Short To B+)
      GTY244936Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Resistance

      Tester Connection Condition Specified Condition
      S2-16 (BT) - S2-8 (GBT) Always 1 MΩ or higher
      S2-17 (VBT) - S2-8 (GBT) Always 1 MΩ or higher

    NG → See step   14

    OK: Go to next step

  6. CHECK FOR DTC
    1. Connect the connectors to the occupant classification ECU and the seat belt tension sensor.
    2. Connect the cable to the negative (-) battery terminal.
    3. Turn the ignition switch to ON.
    4. Clear the DTCs stored in the occupant classification ECU. Refer to DTC CHECK / CLEAR .
    5. Clear the DTCs stored in the center airbag sensor assembly. Refer to DTC CHECK / CLEAR .
    6. Turn the ignition switch off.
    7. Turn the ignition switch to ON.
    8. Check for DTCs. Refer to DTC CHECK / CLEAR .

      OK

      DTC B1773 and B1776 are not output.

      HINT:

      Codes other than B1773 and B1776 may be output at this time, but they are not related to this check.

    NG → See step   7

    OK → See step   15

  7. INSPECT FRONT SEAT OUTER BELT ASSEMBLY RH
    1. Turn the ignition switch off.
    2. Disconnect the cable from the negative (-) battery terminal.
    3. Replace the front seat outer belt assembly RH with a known good part. Refer to REMOVAL .

      HINT:

      Perform an inspection using known good parts from another vehicle if possible.

    4. Connect the cable to the negative (-) battery terminal.
    5. Turn the ignition switch to ON.
    6. Clear the DTCs stored in the occupant classification ECU. Refer to DTC CHECK / CLEAR .
    7. Clear the DTCs stored in the center airbag sensor assembly. Refer to DTC CHECK / CLEAR .
    8. Turn the ignition switch off.
    9. Turn the ignition switch to ON.
    10. Check for DTCs. Refer to DTC CHECK / CLEAR .

      OK

      DTC B1773 and B1776 are not output.

      HINT:

      Codes other than B1773 and B1776 may be output at this time, but they are not related to this check.

    NG → See step   8

    OK → END

  8. REPLACE FRONT SEAT CUSHION ASSEMBLY
    1. Turn the ignition switch off.
    2. Disconnect the cable from the negative (-) battery terminal.
    3. Replace the front seat cushion assembly (with occupant classification ECU and occupant classification sensor). Refer to REMOVAL .
    4. Connect the cable to the negative (-) battery terminal.
    5. Turn the ignition switch to ON.
    6. Clear the DTCs stored in the occupant classification ECU. Refer to DTC CHECK / CLEAR .
    7. Clear the DTCs stored in the center airbag sensor assembly. Refer to DTC CHECK / CLEAR .
    8. Turn the ignition switch off.
    9. Turn the ignition switch to ON.
    10. Check for DTCs. Refer to DTC CHECK / CLEAR .

      OK

      DTC is not output.

    NEXT: Go to next step

  9. PERFORM ZERO POINT CALIBRATION
    1. Connect the Techstream to the DLC3.
    2. Turn the ignition switch to ON.
    3. Using the Techstream, perform zero point calibration. Refer to INITIALIZATION .
    4. Turn the ignition switch off.
    5. Turn the ignition switch to ON.
    6. Clear the DTCs stored in the occupant classification ECU. Refer to DTC CHECK / CLEAR .

      HINT:

      If the DTCs are not cleared at this time, past DTCs will remain.

    NEXT: Go to next step

  10. PERFORM SENSITIVITY CHECK
    1. Perform the sensitivity check. Refer to INITIALIZATION .

    NEXT → END

  11. CHECK FRONT SEAT WIRE RH (SHORT TO B+)
    1. Turn the ignition switch off.

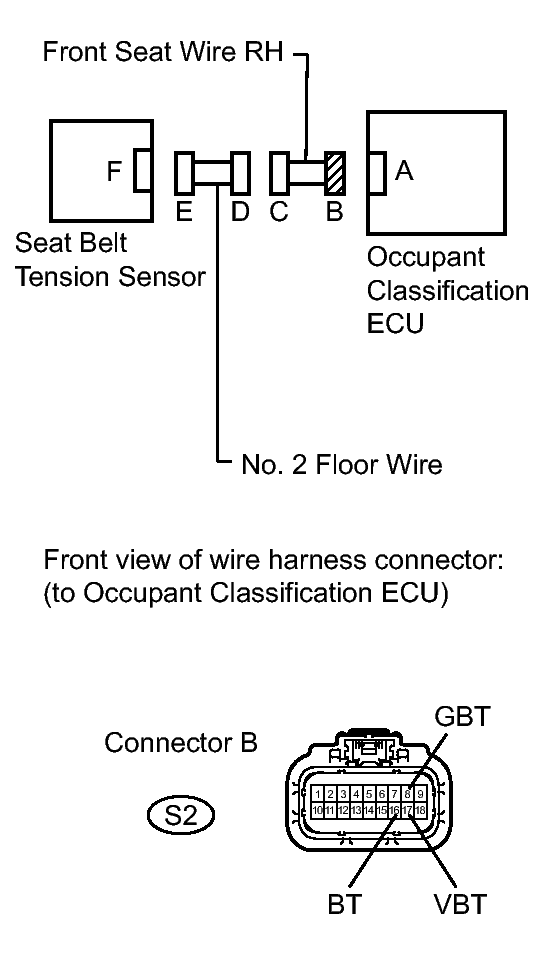

      Fig 5: Checking Front Seat Wire RH (Short To B+)
      GTY212275Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the cable from the negative (-) battery terminal.
    3. Disconnect the No. 2 floor wire connector from the front seat wire RH.
    4. Connect the cable to the negative (-) battery terminal.
    5. Turn the ignition switch to ON.
    6. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Switch Condition Specified Condition
      S2-8 (GBT) - Body ground Ignition switch ON Below 1 V
      S2-16 (BT) - Body ground Ignition switch ON Below 1 V
      S2-17 (VBT) - Body ground Ignition switch ON Below 1 V

    NG → REPLACE FRONT SEAT WIRE RH

    OK → REPLACE NO. 2 FLOOR WIRE

  12. CHECK FRONT SEAT WIRE RH (OPEN)
    1. Disconnect the No. 2 floor wire connector from the front seat wire RH.

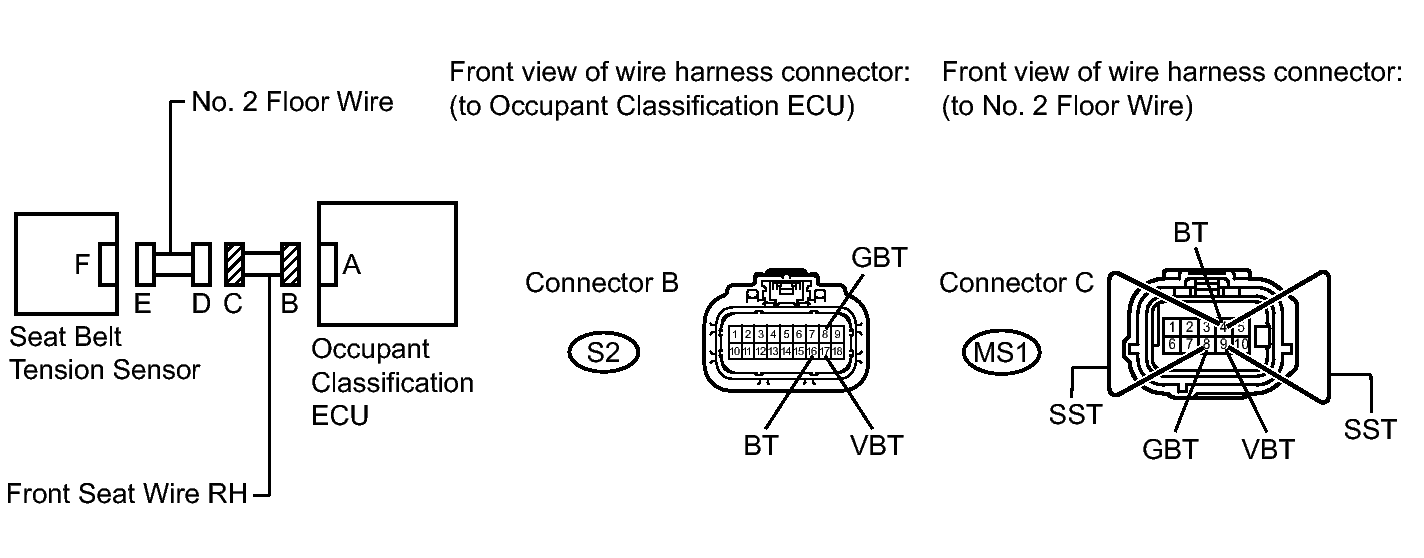

      Fig 6: Checking Front Seat Wire RH Using SST (w/ Ignition Switch On) (Open)
      GTY233603Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using SST, connect terminals 4 (BT) and 9 (VBT), and connect terminals 4 (BT) and 8 (GBT) of connector C.
      NOTE:

      Do not forcibly insert SST into the terminals of the connector.

      • SST: 09843-18040
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      S2-16 (BT) - S2-8 (GBT) Always Below 1 Ω
      S2-17 (VBT) - S2-16 (BT) Always Below 1 Ω

    NG → REPLACE FRONT SEAT WIRE RH

    OK → REPLACE NO. 2 FLOOR WIRE

  13. CHECK FRONT SEAT WIRE RH (SHORT TO GROUND)
    1. Disconnect the No. 2 floor wire connector from the front seat wire RH.
      Fig 7: Checking Front Seat Wire RH (Short To Ground)
      GTY212275Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      S2-8 (GBT) - Body ground Always 1 MΩ or higher
      S2-16 (BT) - Body ground Always 1 MΩ or higher
      S2-17 (VBT) - Body ground Always 1 MΩ or higher

    NG → REPLACE FRONT SEAT WIRE RH

    OK → REPLACE NO. 2 FLOOR WIRE

  14. CHECK FRONT SEAT WIRE RH (SHORT)
    1. Disconnect the No. 2 floor wire connector from the front seat wire RH.
      Fig 8: Checking Front Seat Wire RH (Short)
      GTY212275Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      S2-16 (BT) - S2-8 (GBT) Always 1 MΩ or higher
      S2-17 (VBT) - S2-8 (GBT) Always 1 MΩ or higher

    NG → REPLACE FRONT SEAT WIRE RH

    OK → REPLACE NO. 2 FLOOR WIRE

  15. USE SIMULATION METHOD TO CHECK. Refer to  DIAGNOSIS SYSTEM
