Charging System (2ZR-FE) (Service Information): Generator: Installation: Installation

INSTALL GENERATOR ASSEMBLY
1. Install the wire harness clamp bracket with the bolt.

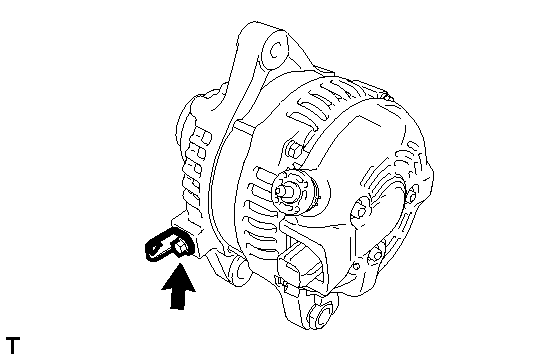

  Fig 1: Locating Wire Harness Clamp Bracket Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 8.4 N*m (86 kgf*cm, 74 in.*lbf)
2. Temporarily install the generator assembly with the 2 bolts.

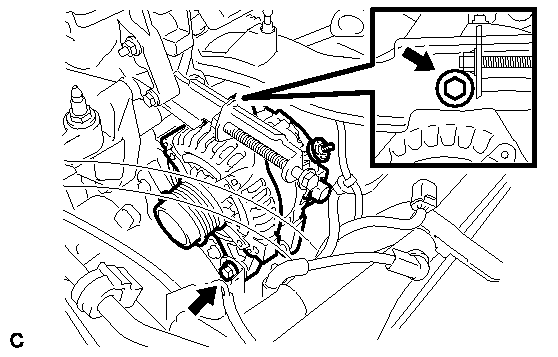

  Fig 2: Locating Generator Assembly Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the generator connector and wire harness clamp.

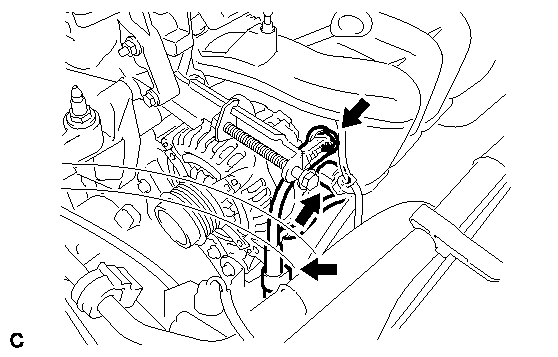

  Fig 3: Identifying Terminal Cap, Nut, Generator Connector And Harness Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the wire harness to terminal B with the nut and install the terminal cap.
  Torque: 9.8 N*m (100 kgf*cm, 87 in.*lbf)
INSTALL V-RIBBED BELT . Refer to INSTALLATION - Step 1
ADJUST V-RIBBED BELT . Refer to INSTALLATION - Step 2
INSPECT V-RIBBED BELT . Refer to ON-VEHICLE INSPECTION - Step 1
INSTALL ENGINE UNDER COVER RH
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
