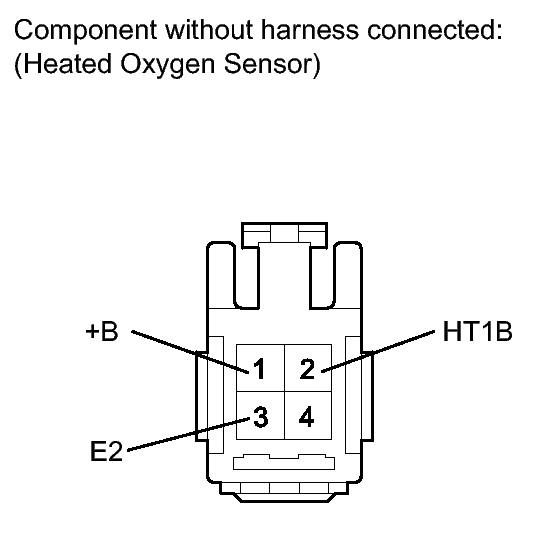

Measure the resistance according to the value(s) in the table below.Standard Resistance
| Tester Connection |
Condition |
Specified Condition |
| 2 (HT1B) - 1 (+B) |
20°C (68°F) |
11 to 16 Ω |
| 2 (HT1B) - 3 (E2) |
Always |
10 kΩ or higher |
If the result is not as specified, replace the heated oxygen sensor.
