Exhaust Pipe And Catalytic Converter (For 2WD): Components: Illustration

WARNING: This page is about a different variant/trim than selected.

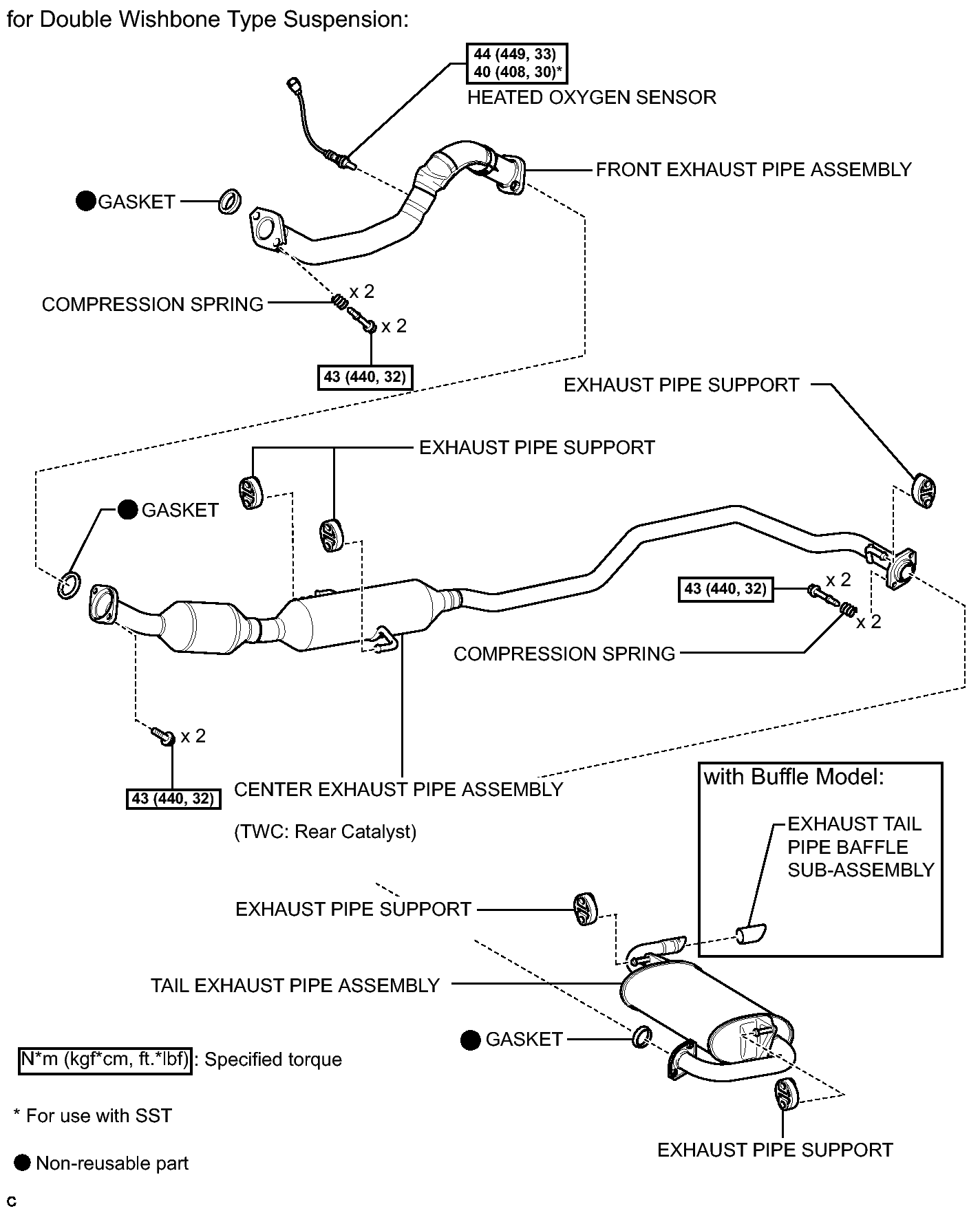

Fig 1: Identifying Exhaust Pipe Replacement Components With Torque Specifications (for 2WD) (1 Of 2)
GTY219861Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

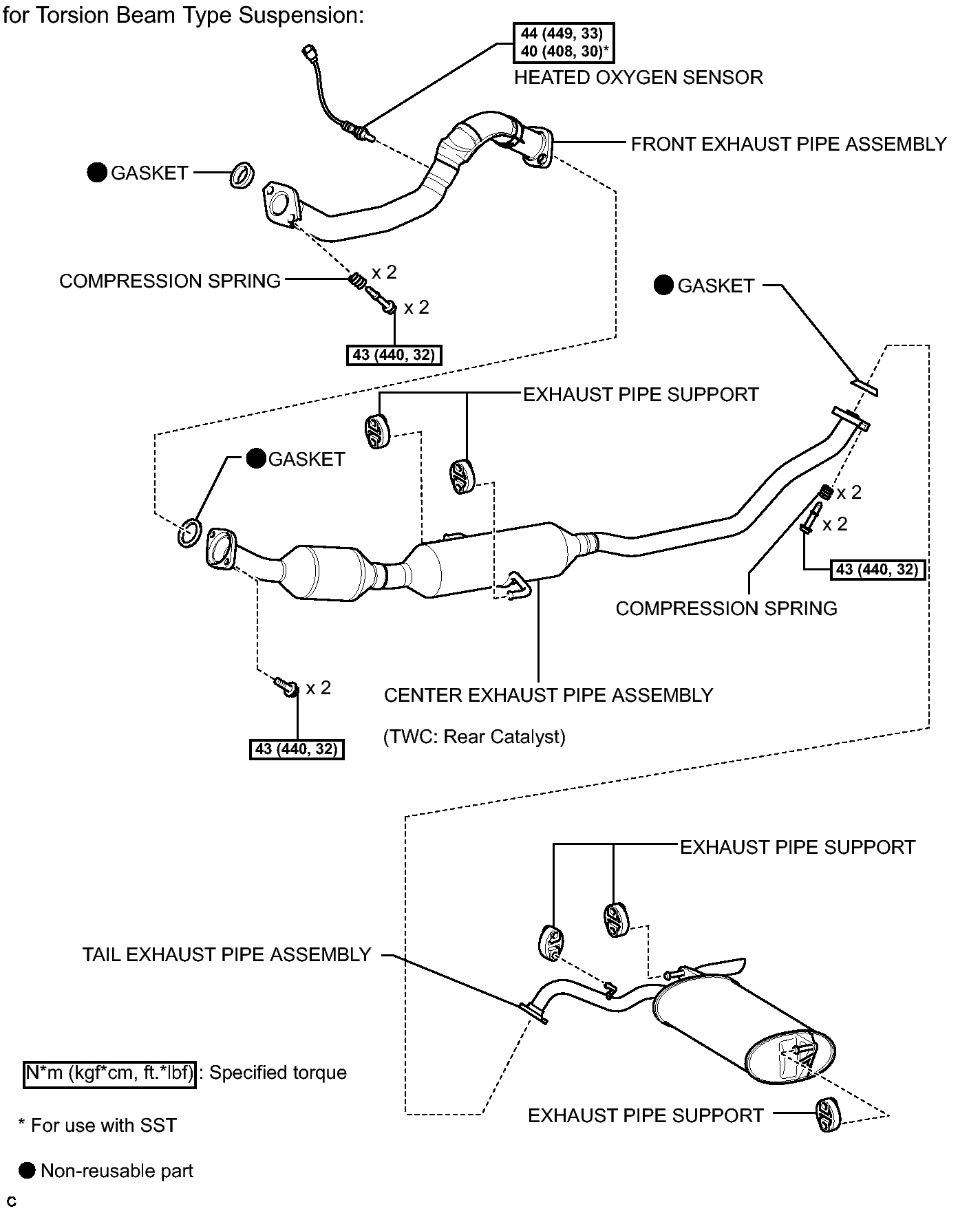

Fig 1: Identifying Exhaust Pipe Replacement Components With Torque Specifications (for 2WD) (2 Of 2)
GTY221655Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
