Exhaust Pipe And Catalytic Converter (For 4WD): Components: Illustration
WARNING:
This page is about a different variant/trim than selected.

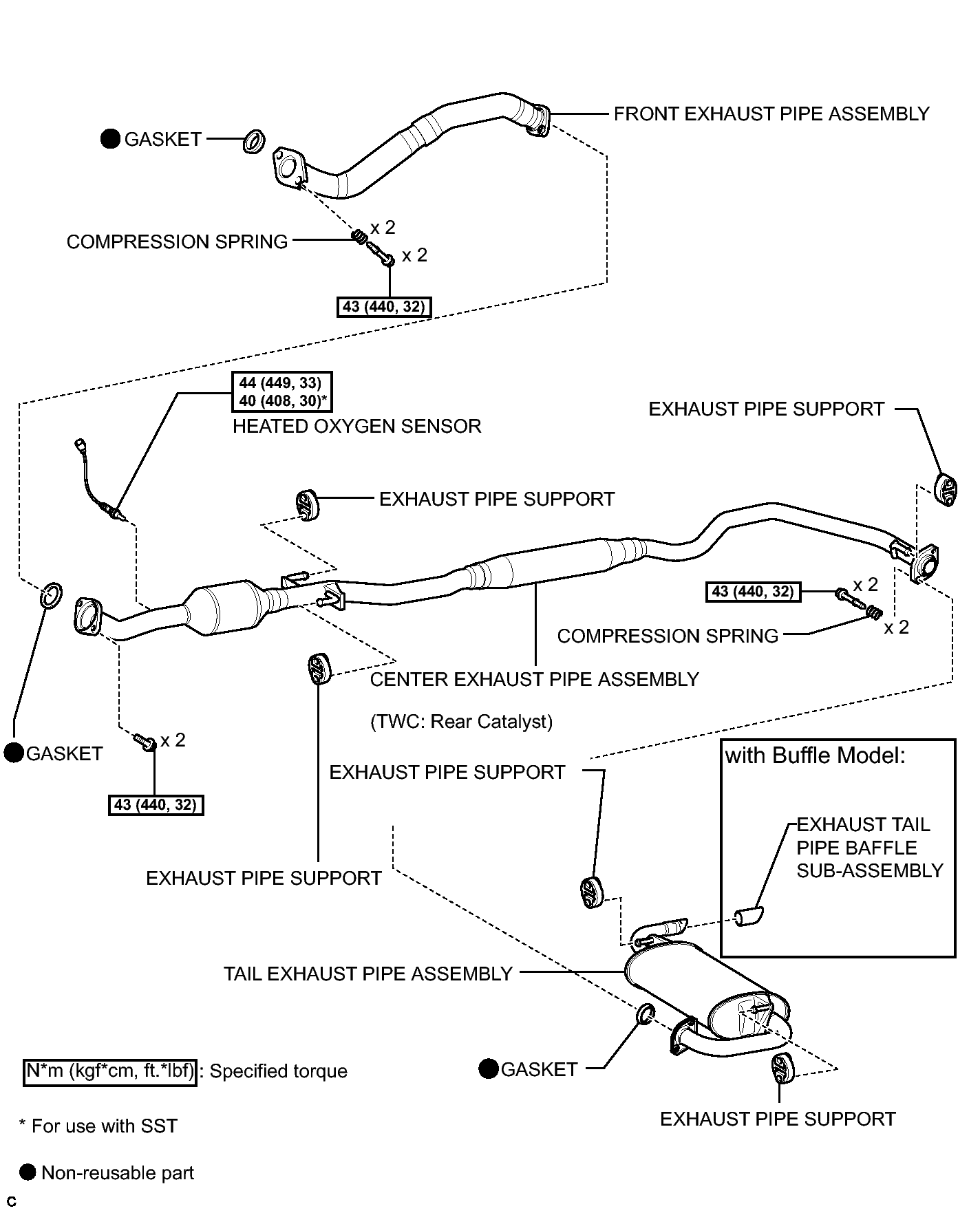

Fig 1: Identifying Exhaust Pipe Replacement Components Locations With Torque Specifications (for 4WD)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
