Steering System: Adjustment: Adjustment

  1. ADJUST STEERING WHEEL OFF CENTER
    1. Inspect steering wheel off center.
      1. Apply masking tape on the top center of the steering wheel and upper steering column cover.

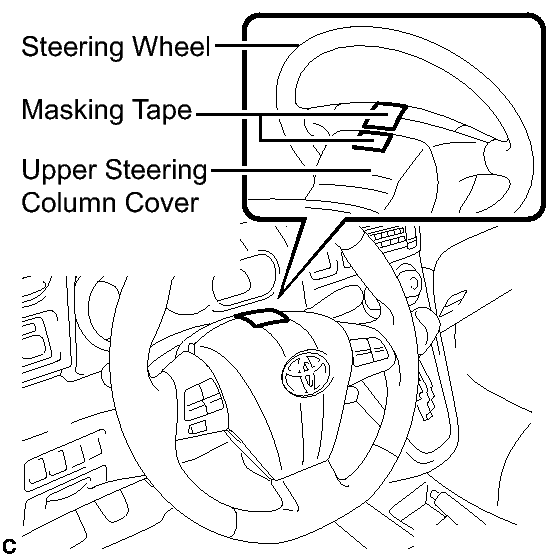

        Fig 1: Identifying Masking Tape On Top Center Of Steering Wheel
        GTY293126Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Drive the vehicle in a straight line for 100 meters at a constant speed of 56 km/h (35 mph), while holding the steering wheel straight.
      3. Draw a line on the masking tape as shown in the illustration.

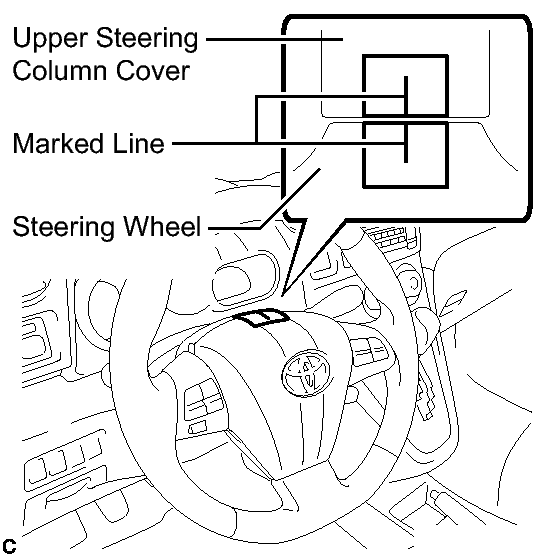

        Fig 2: Identifying Line On Masking Tape
        GTY290539Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      4. Turn the steering wheel to the center position.

        HINT:

        Look at the upper surface of the steering wheel, steering spoke, and SRS airbag line to find the center position.

      5. Draw a new line on the masking tape on the steering wheel as shown in the illustration.

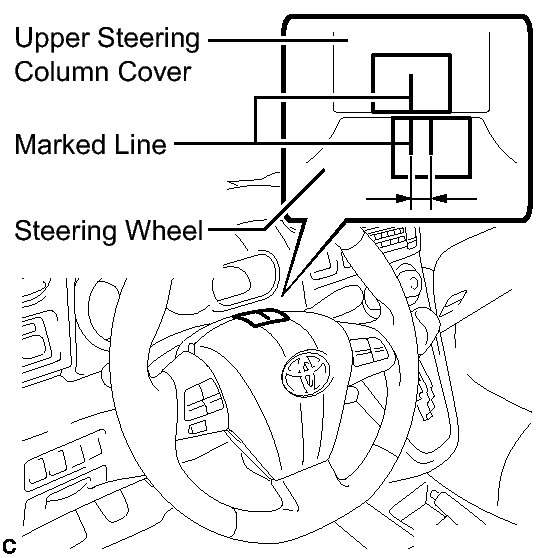

        Fig 3: Measuring Distance Between The 2 Lines
        GTY291378Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      6. Measure the distance between the 2 lines on the masking tape on the steering wheel.
      7. Convert the measured distance to steering angle.

        HINT:

        • Measured distance 1 mm (0.0394 in.) = Steering angle of approximately 1 degree
        • Make a note of the steering angle.
    2. Adjust steering angle.
      1. Draw a line on the RH and LH tie rod ends and rack ends respectively where it can be easily seen.

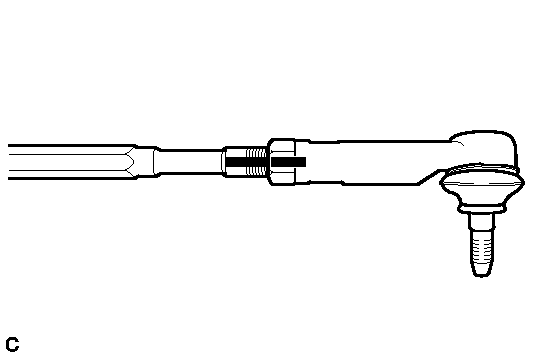

        Fig 4: Identifying Line On Tie Rod Ends And Rack Ends
        GTY221025Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Using a paper gauge, measure the distance from the RH and LH tie rod ends to the rack end screws.

        HINT:

        • Perform measurement on both RH and LH sides.
        • Make a note of the measured values.
      3. Remove the RH and LH boot clips from the rack boots.

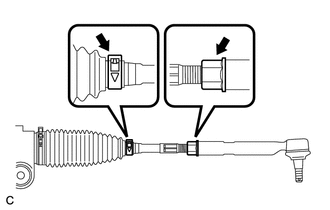

        Fig 5: Locating Boot Clips And Lock Nuts
        GTY189730Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      4. Loosen the RH and LH lock nuts.
      5. Turn the RH and LH rack ends by the same amount (but in different directions) according to the steering angle.

        HINT:

        One 360 degree turn of the rack end (1.5 mm (0.0591 in.) horizontal movement) equals to 12 degrees of steering angle.

      6. Tighten the RH and LH lock nuts to the specified torque.

        Torque: 74 N*m (755 kgf*cm, 55 ft.*lbf)

        NOTE:

        Make sure that the difference in length between the RH and LH tie rod ends and rack end screws is within 1.5 mm (0.0591 in.).

      7. Install the RH and LH boot clips.
