Fuel Pump: Reassembly: Reassembly

INSTALL FUEL PUMP
1. Apply a light coat of gasoline or spindle oil to a new O-ring, then install it into the fuel pump.

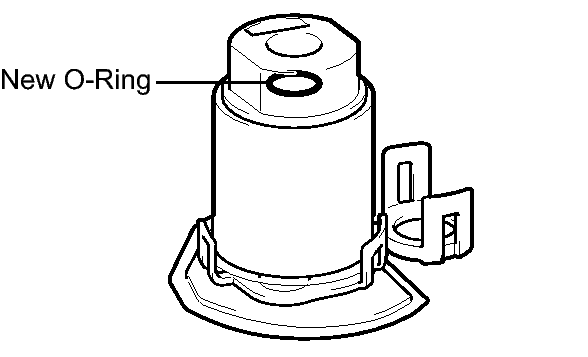

  Fig 1: Identifying Fuel Pump O-Ring (4WD)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  Do not disassemble the fuel pump and the suction filter. Doing so will cause the fuel pump to be non-reusable.
2. Connect the fuel pump harness connector.

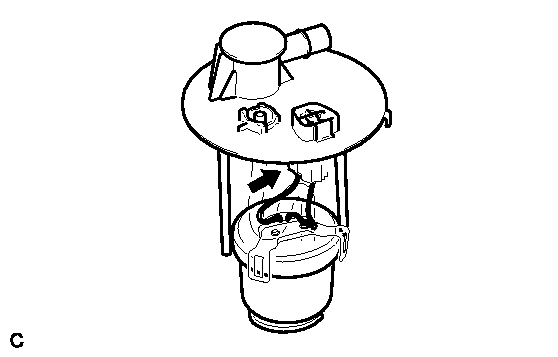

  Fig 2: Locating Fuel Pump Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Apply a light coat of gasoline or spindle oil to the O-ring of the fuel pump again.
4. Engage the 5 claws, and install the fuel pump filter onto the fuel filter.

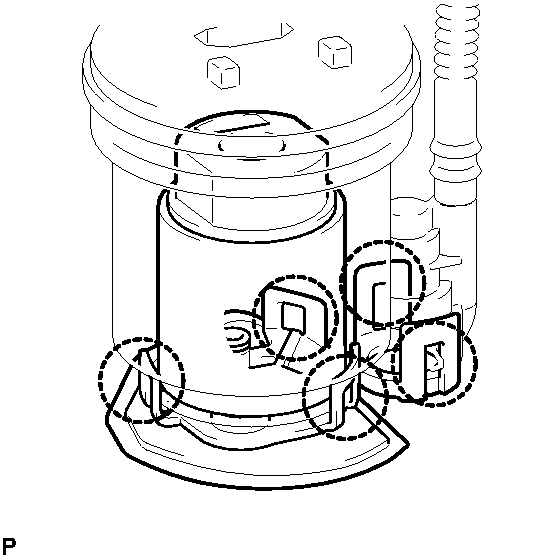

  Fig 3: Identifying Suction Filter And Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  Make sure that the O-ring is not cracked or does not jump out of position during installation.
5. Engage the 2 claws of the No. 1 fuel suction support.

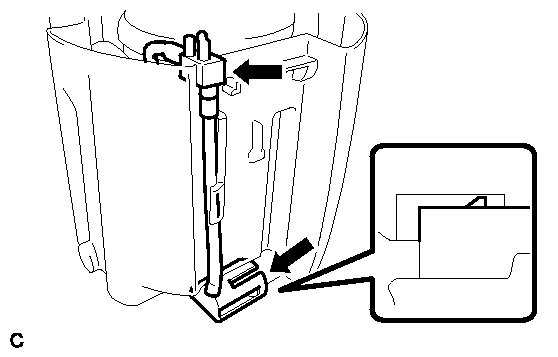

  Fig 4: Identifying Claws Of No. 1 Fuel Suction Support
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Connect the fuel pump harness connector.

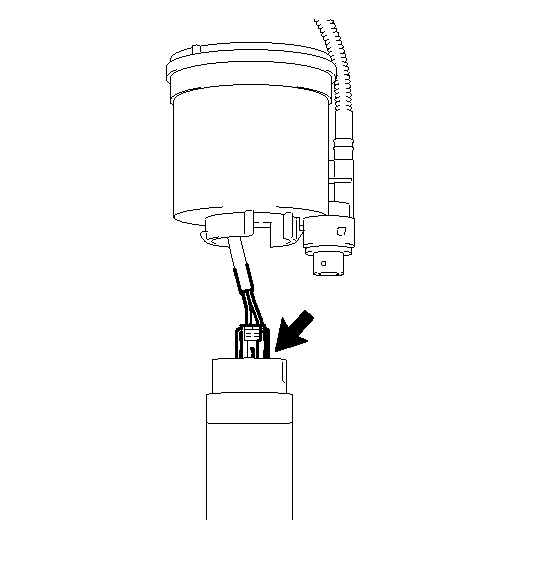

  Fig 5: Locating Fuel Pump Harness Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Engage the 2 claws and install the E-ring and fuel pump sub-tank.

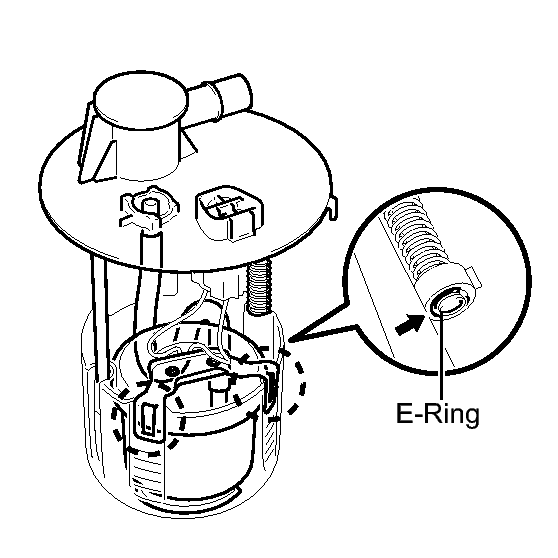

  Fig 6: Locating Claws And E-Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. Align the groove of the fuel pump filter hose with the cutout of the fuel sub-tank and install the hose.

  Fig 7: Locating Fuel Pump Filter Hose
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  Do not apply excessive force to the fuel tube or the suction support.
9. Connect the connector of the fuel pump harness.
INSTALL FUEL SENDER GAUGE ASSEMBLY See step 1
