Shift Lever: Reassembly: Reassembly

WARNING: This page is about a different variant/trim than selected.

INSTALL LOWER POSITION INDICATOR HOUSING

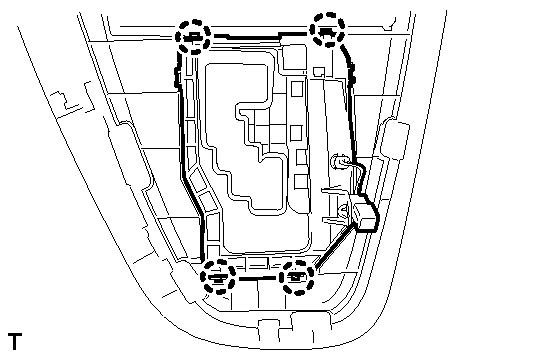

1. Engage the 2 claws and install the lower position indicator housing to the shift lock control unit.

  Fig 1: Engaging Lower Position Indicator Housing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 2 POSITION INDICATOR SLIDE COVER
1. Install the No. 2 position indicator slide cover to the position indicator slide cover.

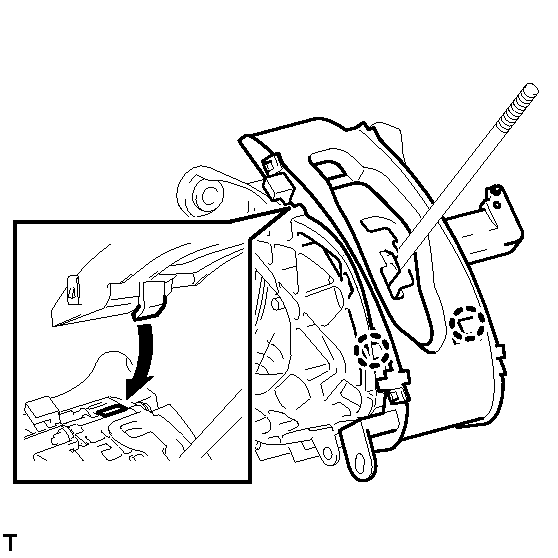

  Fig 2: Locating No. 2 Position Indicator Slide Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL POSITION INDICATOR SLIDE COVER
1. Install the position indicator slide cover to the shift lock control unit.

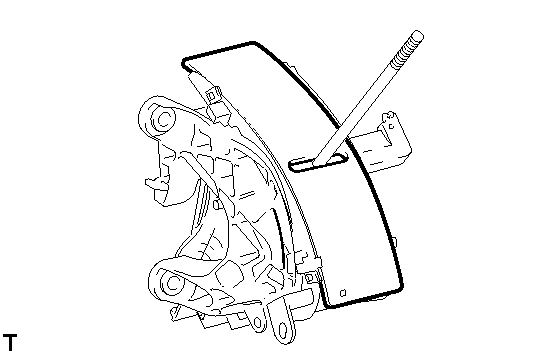

  Fig 3: Identifying Position Indicator Slide Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL UPPER POSITION INDICATOR HOUSING
1. Engage the 4 claws and install the upper position indicator housing to the shift lock control unit.

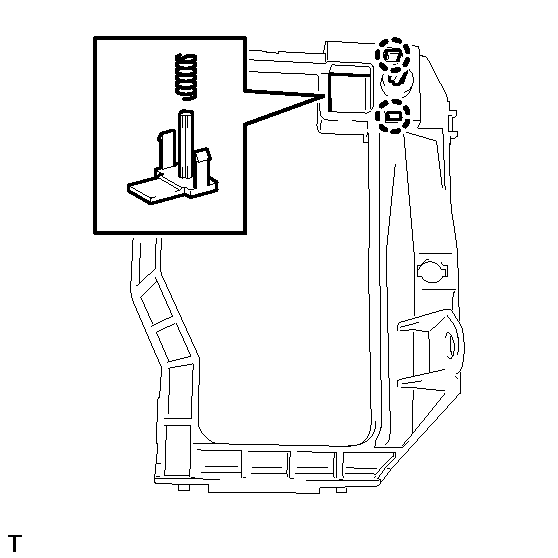

  Fig 4: Identifying Upper Position Indicator Housing And Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SHIFT LOCK RELEASE BUTTON
1. Engage the 2 claws and install the shift lock release button compression spring and shift lock release button to the position indicator light housing.

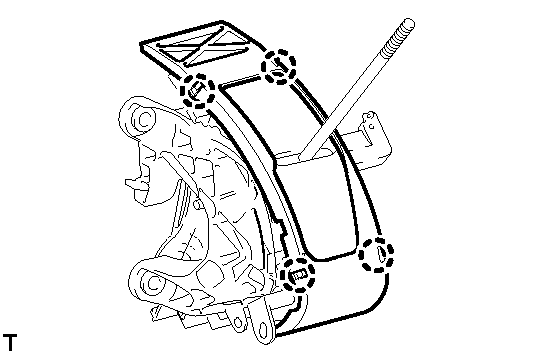

  Fig 5: Identifying Shift Lock Release Button Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL POSITION INDICATOR LIGHT BULB
1. Install the cap to the bulb.
2. Install the bulb to the position indicator light wire socket.
INSTALL INDICATOR LIGHT WIRE SUB-ASSEMBLY
1. Install the position indicator light wire socket and connector to the position indicator light housing.

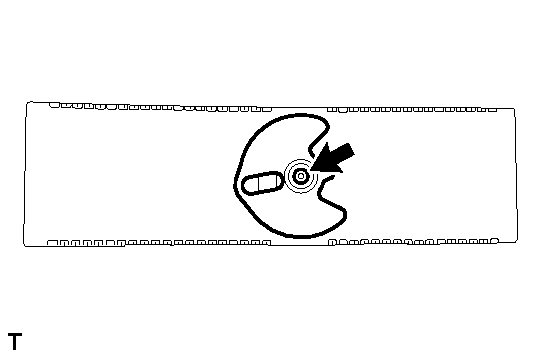

  Fig 6: Locating Position Indicator Light Wire Socket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SHIFT LOCK RELEASE BUTTON COVER
1. Engage the 2 claws and install the shift lock release button cover to the center instrument cluster finish panel assembly.

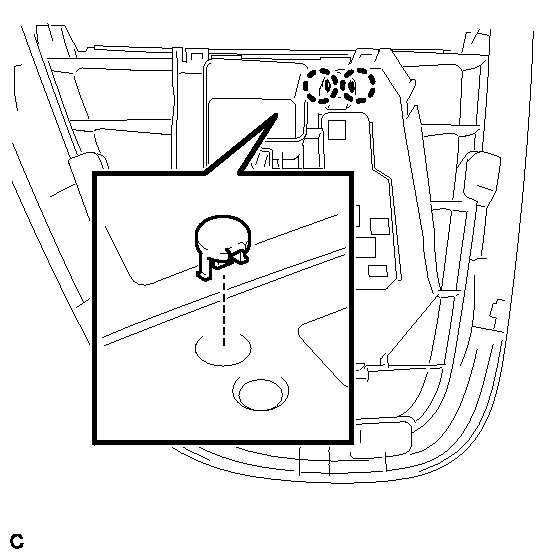

  Fig 7: Identifying Shift Lock Release Button Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL POSITION INDICATOR LIGHT HOUSING
1. Engage the 4 claws and install the position indicator light housing to the center instrument cluster finish panel assembly.

  Fig 8: Identifying Position Indicator Light Housing Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
