Speed Sensor: Removal: Removal

WARNING: This page is about a different variant/trim than selected.
  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
  2. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY  . Refer to REMOVAL - Step 11
  3. REMOVE AIR CLEANER CAP SUB-ASSEMBLY  . Refer to REMOVAL - Step 3
  4. REMOVE AIR CLEANER CASE  . Refer to REMOVAL - Step 14
  5. REMOVE BATTERY  . Refer to REMOVAL - Step 15
  6. REMOVE BATTERY CARRIER  . Refer to REMOVAL - Step 16
  7. REMOVE TRANSMISSION OIL FILLER TUBE SUB-ASSEMBLY
    1. Remove the transmission oil level gauge sub-assembly.
      Fig 1: Locating Transmission Oil Filler Tube Sub-Assembly And Bolt
      GTY204994Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the transmission wire connector, park/ neutral position switch connector and 2 wire harness clamps.
    3. Remove the bolt and transmission oil filler tube sub-assembly.
    4. Remove the O-ring from the transmission oil filler tube sub-assembly.
  8. REMOVE SPEED SENSOR NT
    1. Disconnect the sensor connector.
      Fig 2: Locating Speed Sensor NT And Bolt
      GTY204995Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and sensor.
    3. Remove the O-ring from the sensor.
  9. REMOVE SPEED SENSOR NC
    1. Disconnect the sensor connector.

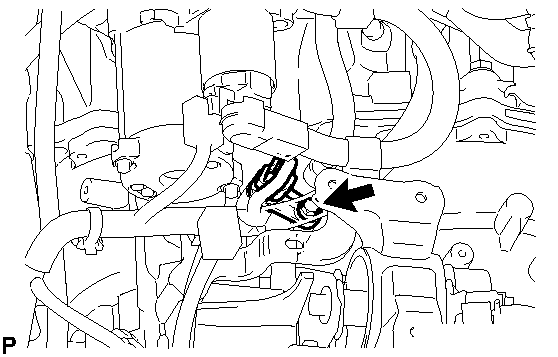

      Fig 3: Locating Speed Sensor NC Bolt
      GTY212231Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and sensor.
    3. Remove the O-ring from the sensor.
