PCV Valve: Inspection: Inspection

WARNING: This page is about a different variant/trim than selected.

INSPECT VENTILATION VALVE SUB-ASSEMBLY
1. Install a clean hose to the ventilation valve sub-assembly.

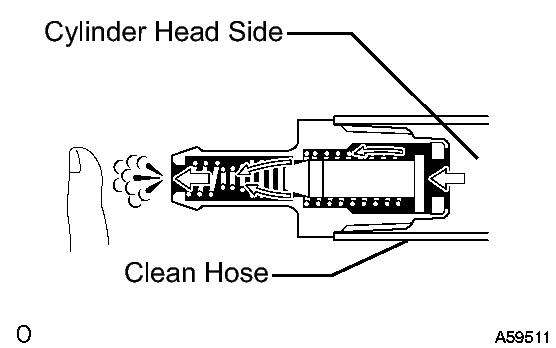

  Fig 1: Inspecting Ventilation Valve Operation From Cylinder Head Side
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Inspect ventilation valve operation.
  1. Blow air into the cylinder head side, and check that air passes through easily.
    WARNING:
    Do not suck air through the valve. Petroleum substances inside the valve are hazardous to your health.
  2. Blow air into the intake manifold side, and check that air passes through with difficulty.

    Fig 2: Checking Air Passes (Blow Air Into Intake Manifold Side)
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If the result is not as specified, replace the ventilation valve sub-assembly.
3. Remove the clean hose from the ventilation valve sub-assembly.
