Section 21 (Starting System (2AZ-FE) (Service Information)): Starter: Installation: Installation

WARNING: This page is about a different variant/trim than selected.

INSTALL STARTER ASSEMBLY (for Manual Transaxle)
1. Install the starter assembly, clutch accumulator bracket, and wire harness clamp bracket with the 3 bolts.

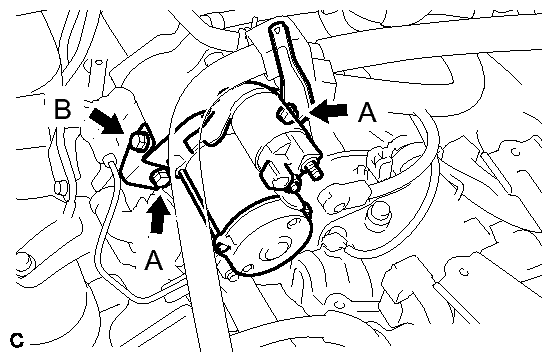

  Fig 1: Locating Starter Assembly, Clutch Accumulator Bracket And Wire Harness Clamp Bracket With Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Bolt A

  Torque: 37 N*m (377 kgf*cm, 27 ft.*lbf)

  Bolt B

  Torque: 12 N*m (120 kgf*cm, 9 ft.*lbf)
2. Connect the wire harness to terminal 30 with the nut. Then, attach the terminal cap.

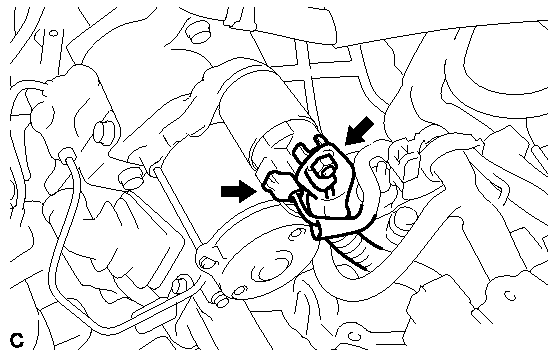

  Fig 2: Locating Starter Assembly Wire Harness Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 9.8 N*m (100 kgf*cm, 87 in.*lbf)
3. Connect the terminal 50 connector to the starter assembly.
INSTALL STARTER ASSEMBLY (for Automatic Transaxle)
1. Install the starter assembly and wire harness clamp bracket with the 2 bolts.

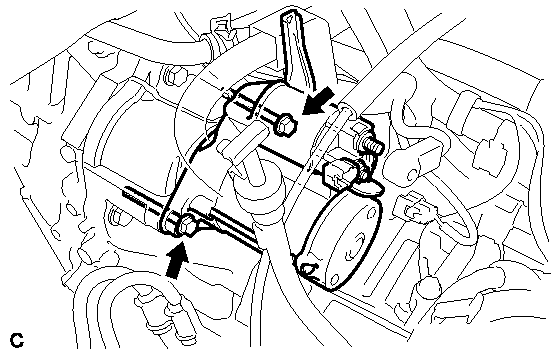

  Fig 3: Locating Bolts, Wire Harness Clamp Bracket And Starter Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 37 N*m (377 kgf*cm, 27 ft.*lbf)
2. Connect the wire harness to terminal 30 with the nut. Then, attach the terminal cap.

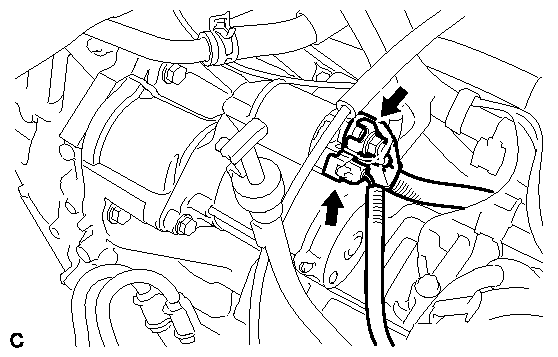

  Fig 4: Locating Starter Assembly Wire Harness Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 9.8 N*m (100 kgf*cm, 87 in.*lbf)
3. Connect the terminal 50 connector to the starter assembly.
INSTALL BATTERY CARRIER
INSTALL BATTERY
INSTALL WIRE HARNESS
1. Install the claw and wire harness.

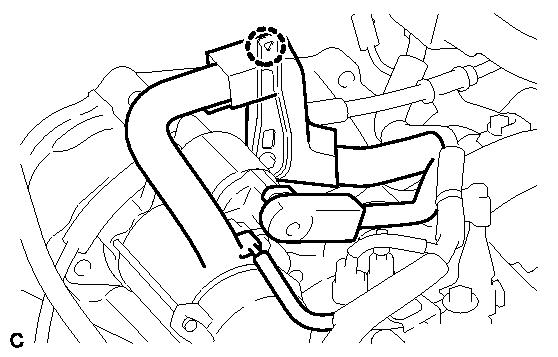

  Fig 5: Identifying Wire Harness And Claw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL AIR CLEANER CASE . Refer to INSTALLATION - Step 64
INSTALL AIR CLEANER CAP SUB-ASSEMBLY WITH HOSE . Refer to INSTALLATION - Step 2
INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY . Refer to INSTALLATION - Step 93
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
