System Diagram

WARNING: This page is about a different variant/trim than selected.

The configuration of the electronic control system in the U250E automatic transaxle is as shown in the following chart.

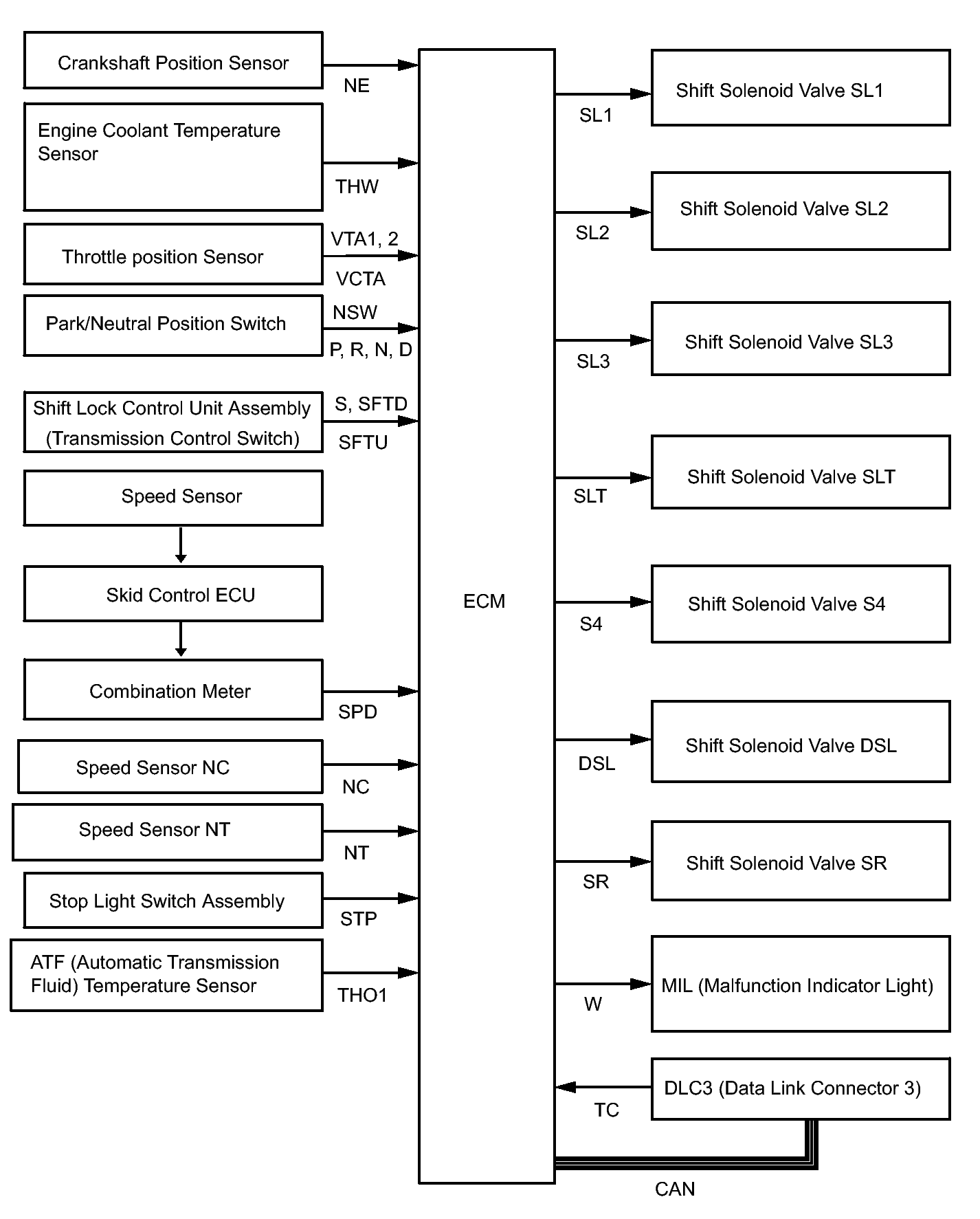

Fig 1: Automatic Transaxle System Diagram
GTY216464Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
