4WD Control Ecu: Removal: Removal

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY  . Refer to REMOVAL - Step 21
  2. REMOVE 4WD CONTROL ECU

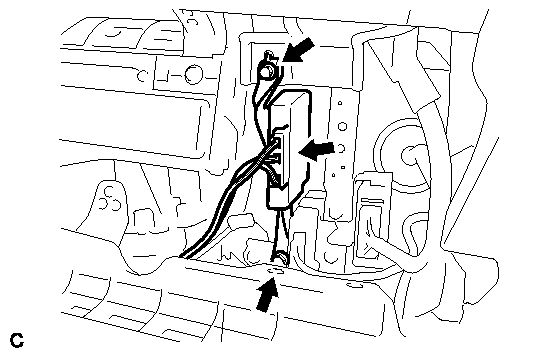

    Fig 1: Locating 4WD Control ECU Bolts
    GTY244703Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the connector.
    2. Remove the 2 bolts and ECU.
