Steering Wheel: Removal: Removal

ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
REMOVE STEERING PAD
Refer to REMOVAL
REMOVE STEERING WHEEL ASSEMBLY
1. Remove the steering wheel assembly set nut.

  Fig 1: Remove/Install Steering Wheel Assembly Set Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Put matchmarks on the steering wheel assembly and steering main shaft.
3. Disconnect the connectors from the spiral cable sub-assembly.
4. Using SST, remove the steering wheel assembly.

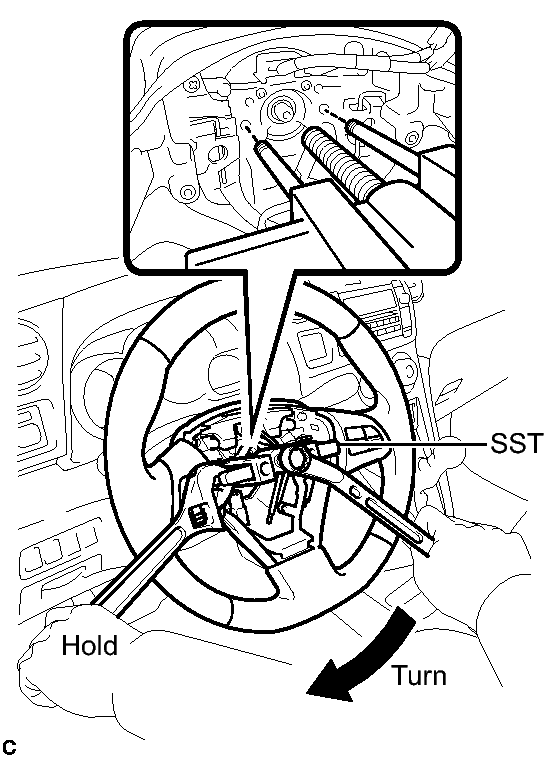

  Fig 2: Remove Steering Wheel Assembly Using SST
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  - SST: 09950-50013
    - 09951-05010
    - 09952-05010
    - 09953-05020
    - 09954-05070
  NOTE:
  Apply a small amount of grease to the threads and tip of SST (09953-05020) before use.
REMOVE NO. 1 STEERING WHEEL ORNAMENT (w/o Steering Pad Switch RH)
1. Remove the screw.

  Fig 3: View Of No. 1 Steering Wheel Ornament (w/o Steering Pad Switch RH)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disengage the 2 pins and claw, and remove the No. 1 steering wheel ornament from the steering wheel sub-assembly.
REMOVE STEERING PAD SWITCH LH (w/o Steering Pad Switch RH) . Refer to REMOVAL - Step 5
REMOVE STEERING PAD SWITCH ASSEMBLY (w/ Steering Pad Switch RH) . Refer to REMOVAL - Step 6
REMOVE CRUISE CONTROL MAIN SWITCH (w/ Cruise Control System) . Refer to REMOVAL - Step 5
REMOVE CRUISE CONTROL SWITCH WIRE (w/ Cruise Control System)
REMOVE LOWER STEERING WHEEL BOSS COVER
1. Disengage the 2 pins.

  Fig 4: View Of Lower Steering Wheel Boss Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disengage the 2 claws to remove the lower steering wheel boss cover from the steering wheel sub-assembly.
