Washer Level Warning Switch: Installation: Installation

INSTALL LEVEL WARNING SWITCH ASSEMBLY
1. Install the level warning switch assembly.

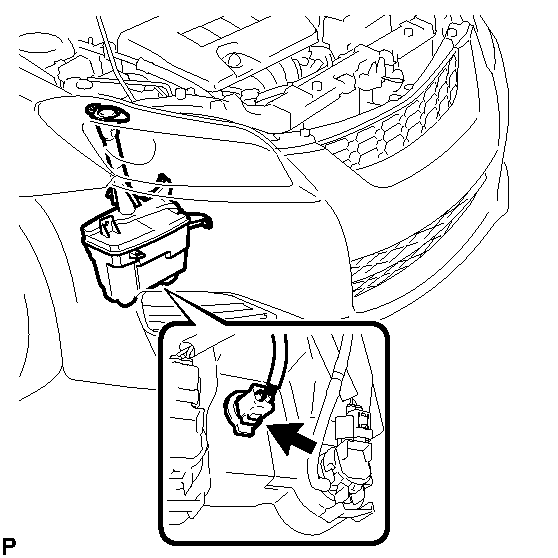

  Fig 1: Locating Level Warning Switch Assembly Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the connector.
FILL WASHER JAR WITH WASHER FLUID
1. Connect the washer hose to the windshield washer motor and pump assembly, and fill the washer jar with washer fluid.

  Fig 2: Filling Washer Jar With Washer Fluid
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT FENDER LINER RH See step 3
INSTALL FRONT WHEEL RH . Refer to INSTALLATION - Step 22
