VC Output Circuit: Wiring Diagram

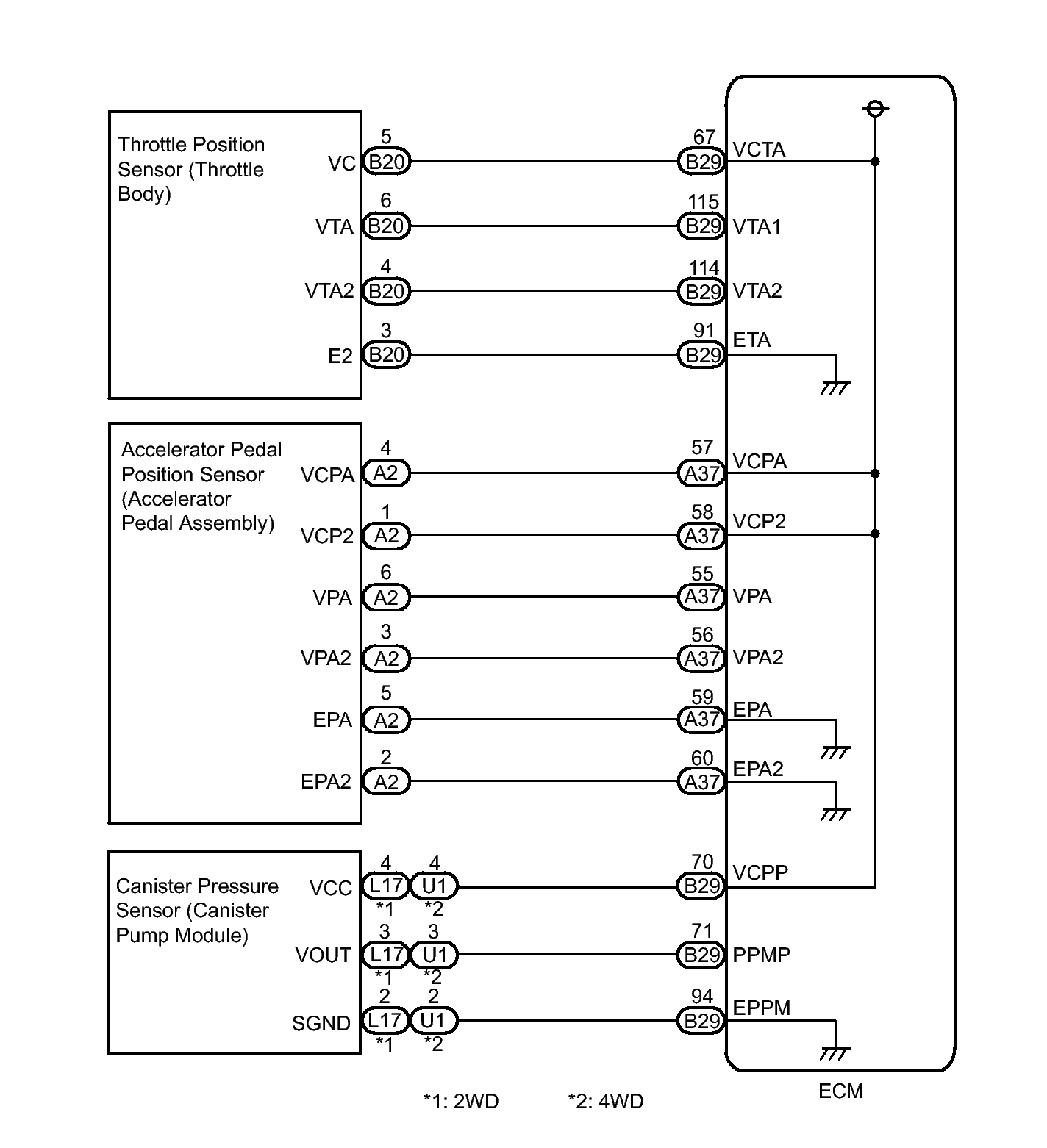

Fig 1: Identifying Accelerator Pedal, Throttle Position Sensor And Canister Pressure Circuit Diagram
GTY319298Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
