Transponder Key Amplifier: Installation: Installation

  1. INSTALL TRANSPONDER KEY AMPLIFIER
    1. Connect the connector to the transponder key amplifier.

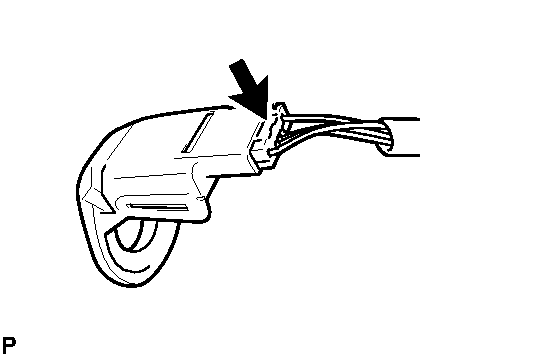

      Fig 1: Locating Transponder Key Amplifier Connector
      GTY200013Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Align the transponder key amplifier with the steering column upper bracket. Tilt the amplifier slightly and slide it into position.

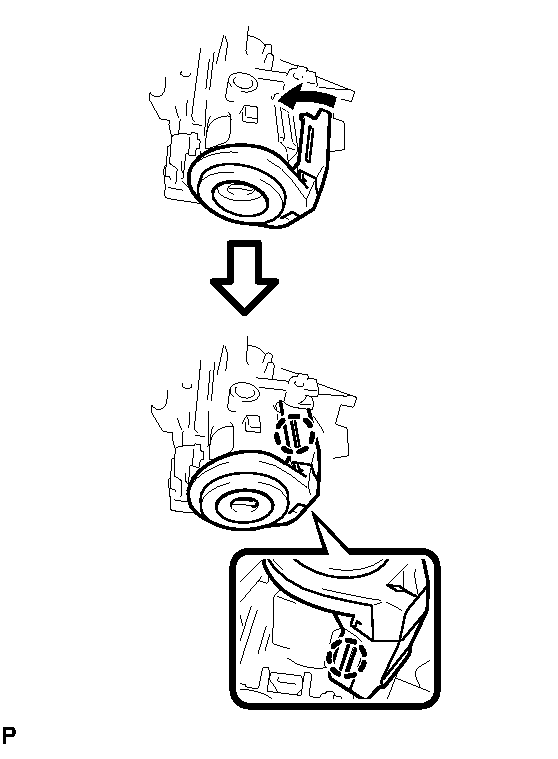

      Fig 2: Aligning Transponder Key Amplifier With Steering Column Upper Bracket
      GTY200014Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Push the transponder key amplifier, and engage the 2 claws to install the transponder key amplifier to the steering column upper bracket.
  2. INSTALL UPPER STEERING COLUMN COVER  . Refer to INSTALLATION - Step 12
  3. INSTALL LOWER STEERING COLUMN COVER  . Refer to INSTALLATION - Step 13
  4. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY  . Refer to INSTALLATION - Step 13
  5. INSTALL NO. 1 SWITCH HOLE BASE  . Refer to INSTALLATION - Step 14
  6. INSTALL LOWER CENTER INSTRUMENT PANEL FINISH PANEL (for Manual Transaxle)  . Refer to INSTALLATION - Step 15
  7. INSTALL LOWER CENTER INSTRUMENT PANEL FINISH PANEL (for Automatic Transaxle)  . Refer to INSTALLATION - Step 16
  8. INSTALL FRONT NO. 1 CONSOLE BOX INSERT  . Refer to INSTALLATION - Step 17
  9. INSTALL FRONT NO. 2 CONSOLE BOX INSERT  . Refer to INSTALLATION - Step 18
  10. INSTALL FRONT CONSOLE BOX ASSEMBLY

    Refer to INSTALLATION

  11. INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (for Manual Transaxle)  . Refer to INSTALLATION - Step 5
  12. INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (for Automatic Transaxle)  . Refer to INSTALLATION - Step 6
  13. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle)  . Refer to INSTALLATION - Step 7
  14. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transaxle)  . Refer to INSTALLATION - Step 8
  15. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY  . Refer to INSTALLATION - Step 9
  16. INSTALL METER HOOD SUB-ASSEMBLY  . Refer to INSTALLATION - Step 2
  17. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY  . Refer to INSTALLATION - Step 16
  18. INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY  . Refer to INSTALLATION - Step 17
  19. INSTALL STEERING WHEEL ASSEMBLY

    Refer to INSTALLATION
