Rear Power Window Switch: Installation: Installation

  1. INSTALL REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY
    1. Engage the 2 claws to install the rear power window regulator switch assembly.

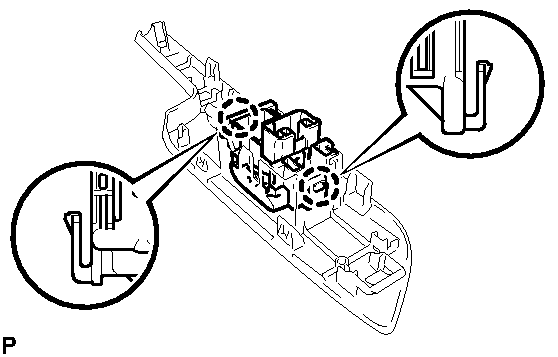

      Fig 1: Identifying Power Window Regulator Switch Assembly And Claws
      GTY241281Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL REAR DOOR ARMREST UPPER BASE PANEL  . Refer to REASSEMBLY - Step 36
