Steering Angle Sensor: Installation: Installation

  1. INSTALL STEERING ANGLE SENSOR
    1. Align the 2 locating pins, engage the 6 claws, and install the steering angle sensor to the spiral cable.

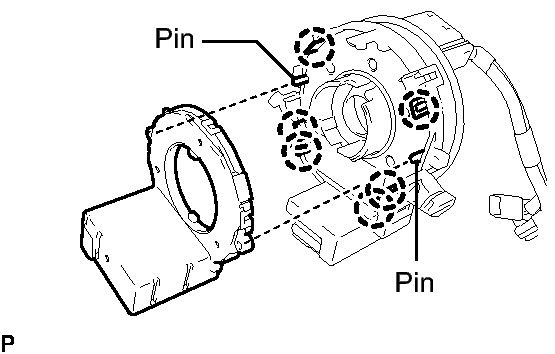

      Fig 1: Identifying Steering Angle Sensor Claws And Pins
      GTY181344Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL SPIRAL CABLE WITH STEERING ANGLE SENSOR  . Refer to INSTALLATION - Step 2
  3. INSTALL UPPER STEERING COLUMN COVER  . Refer to INSTALLATION - Step 12
  4. INSTALL LOWER STEERING COLUMN COVER  . Refer to INSTALLATION - Step 13
  5. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY  . Refer to INSTALLATION - Step 13
  6. INSTALL NO. 1 SWITCH HOLE BASE  . Refer to INSTALLATION - Step 14
  7. INSTALL LOWER CENTER INSTRUMENT PANEL FINISH PANEL (for Manual Transaxle)  . Refer to INSTALLATION - Step 15
  8. INSTALL LOWER CENTER INSTRUMENT PANEL FINISH PANEL (for Automatic Transaxle)  . Refer to INSTALLATION - Step 16
  9. INSTALL FRONT NO. 1 CONSOLE BOX INSERT  . Refer to INSTALLATION - Step 17
  10. INSTALL FRONT NO. 2 CONSOLE BOX INSERT  . Refer to INSTALLATION - Step 18
  11. INSTALL FRONT CONSOLE BOX ASSEMBLY (for 2WD)  . Refer to INSTALLATION - Step 1
  12. INSTALL FRONT CONSOLE BOX ASSEMBLY (for 4WD)  . Refer to INSTALLATION - Step 2
  13. INSTALL CONSOLE BOX CARPET
  14. INSTALL NO. 2 SWITCH HOLE BASE  . Refer to INSTALLATION - Step 22
  15. INSTALL FRONT UPPER CONSOLE BOX  . Refer to INSTALLATION - Step 23
  16. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY  . Refer to INSTALLATION - Step 4
  17. INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (for Manual Transaxle)  . Refer to INSTALLATION - Step 5
  18. INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (for Automatic Transaxle)  . Refer to INSTALLATION - Step 6
  19. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle)  . Refer to INSTALLATION - Step 7
  20. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transaxle)  . Refer to INSTALLATION - Step 8
  21. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY  . Refer to INSTALLATION - Step 9
  22. INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY  . Refer to INSTALLATION - Step 17
  23. ADJUST SPIRAL CABLE  . Refer to INSTALLATION - Step 23
  24. TURN FRONT WHEELS TO FACE STRAIGHT AHEAD
  25. INSTALL STEERING WHEEL ASSEMBLY  . Refer to INSTALLATION - Step 9
  26. INSPECT STEERING WHEEL CENTER POINT
  27. INSTALL STEERING PAD  . Refer to INSTALLATION - Step 1
  28. INSTALL LOWER NO. 3 STEERING WHEEL COVER  . Refer to INSTALLATION - Step 2
  29. INSTALL LOWER NO. 2 STEERING WHEEL COVER  . Refer to INSTALLATION - Step 3
  30. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
    NOTE:

    When reconnecting the cable to the negative (-) battery terminal after installing the steering sensor, check that the front tires and steering wheel are kept aligned straight ahead before and after connecting the cable to the negative (-) battery terminal.

  31. INSPECT STEERING PAD  . Refer to INSTALLATION - Step 5
  32. INSPECT SRS WARNING LIGHT

    Refer to DIAGNOSIS SYSTEM
