ECM Power Source Circuit: Wiring Diagram

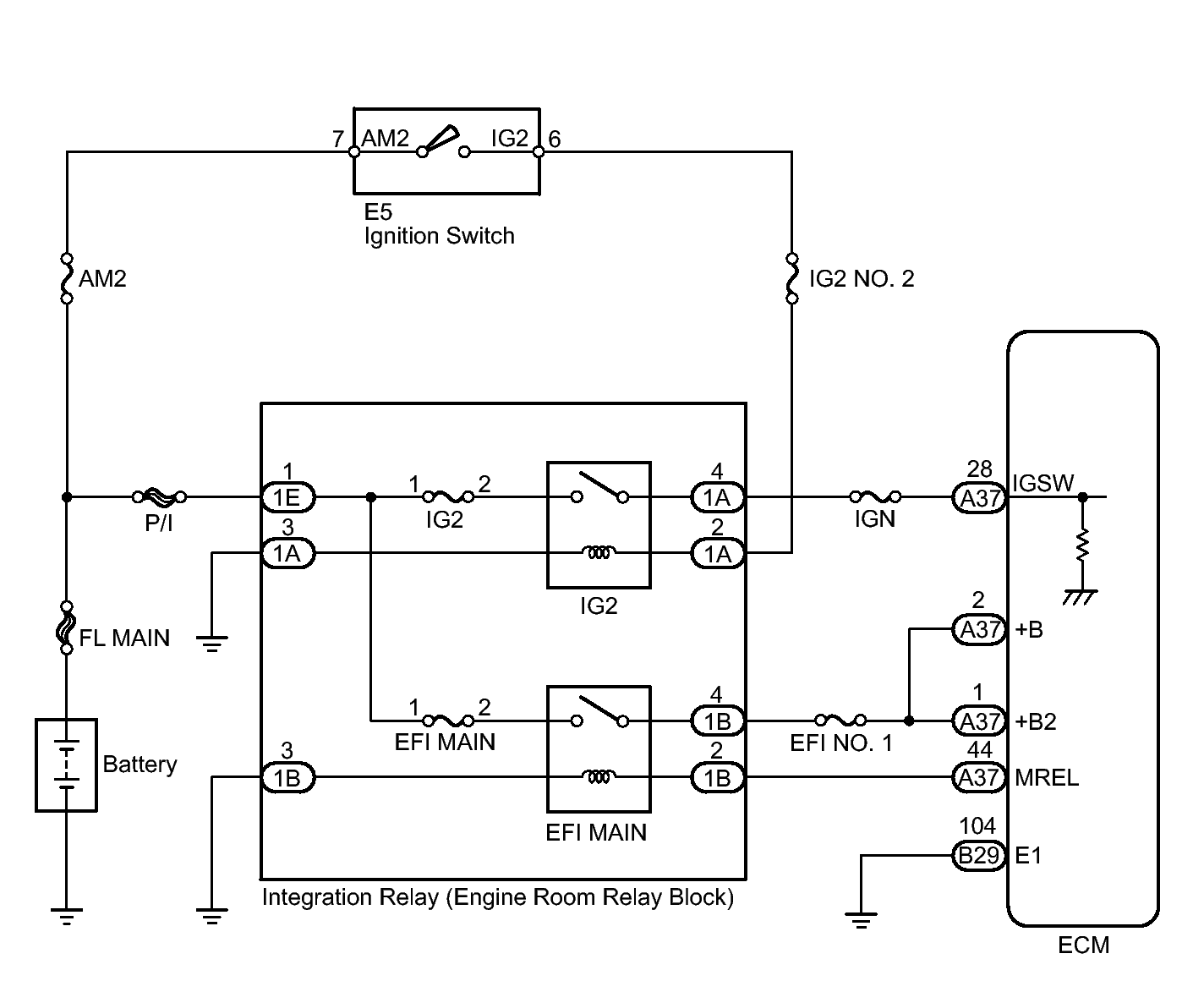

Fig 1: Identifying Integration Relay Circuit Diagram
GTY221863Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
