Power Window Master Switch: Installation: Installation

  1. INSTALL POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY
    1. Install the power window regulator master switch assembly with the 3 screws.

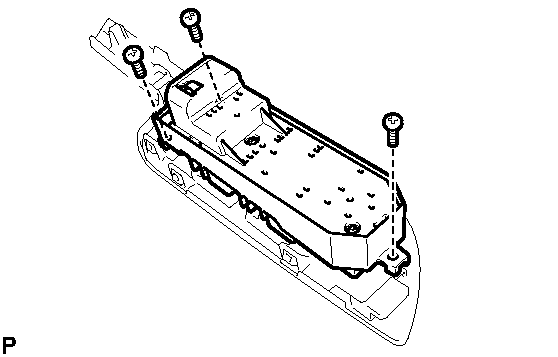

      Fig 1: Identifying Power Window Regulator Master Switch Assembly Screws
      GTY230788Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL FRONT ARMREST UPPER BASE PANEL LH  . Refer to REASSEMBLY - Step 42
