Shift Lock: Notes

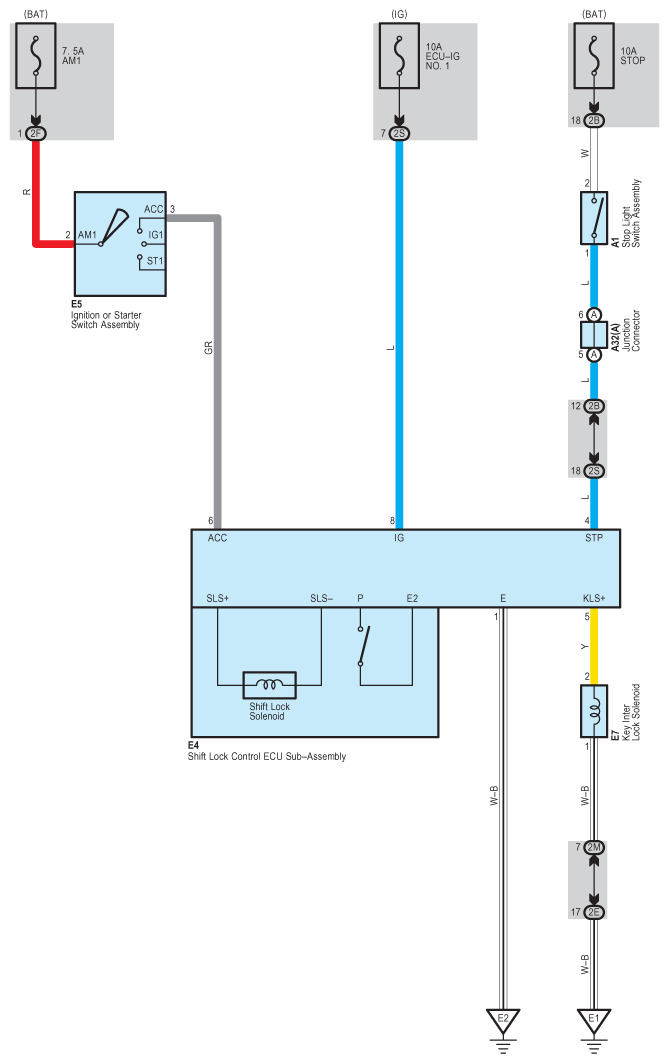

Fig 1: Shift Lock Wiring Diagram
G09105948Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
