Camshaft Oil Control Valve: Removal: Removal

REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY . Refer to REMOVAL - Step 11
REMOVE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY
1. Remove the bolt and the vacuum hose clamp.

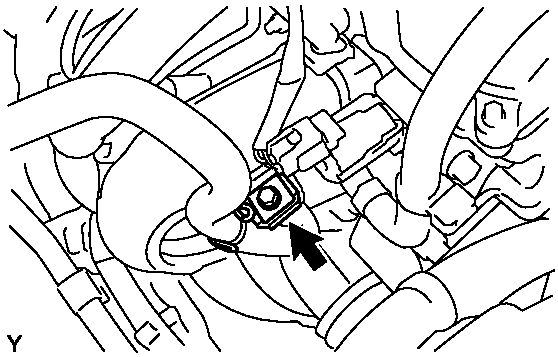

  Fig 1: Locating Vacuum Hose Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the camshaft timing oil control valve connector.

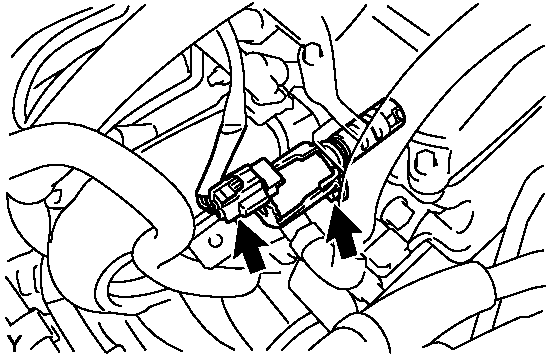

  Fig 2: Locating Camshaft Timing Oil Control Valve Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the bolt and the camshaft timing oil control valve assembly.
4. Remove the O-ring from the camshaft timing oil control valve assembly.

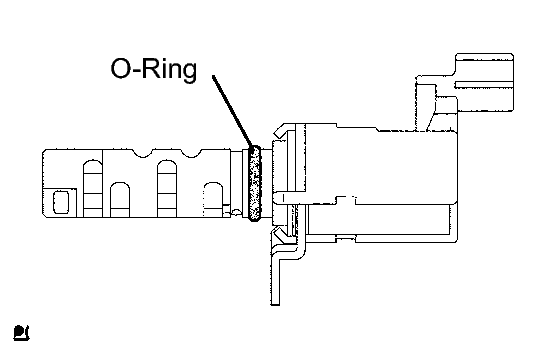

  Fig 3: Identifying O-Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
