Camshaft Position Sensor: Removal: Removal

  1. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY  . Refer to REMOVAL - Step 11
  2. REMOVE AIR CLEANER CAP SUB-ASSEMBLY WITH HOSE  See step  3
  3. REMOVE CAMSHAFT POSITION SENSOR
    1. Disconnect the camshaft position sensor connector.

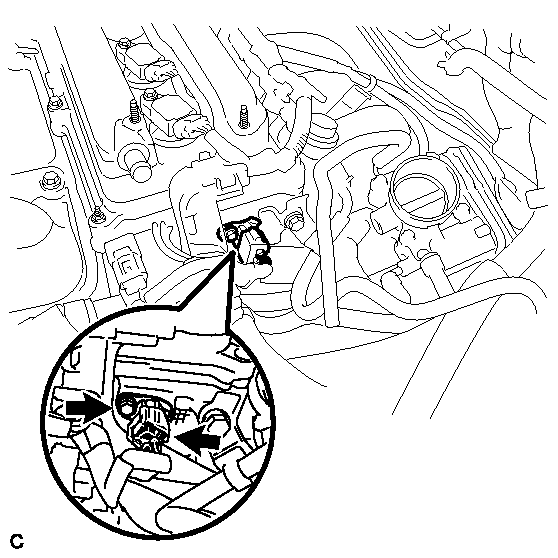

      Fig 1: Locating Camshaft Position Sensor Bolt
      GTY178911Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and the camshaft position sensor.
