Power Source: Notes

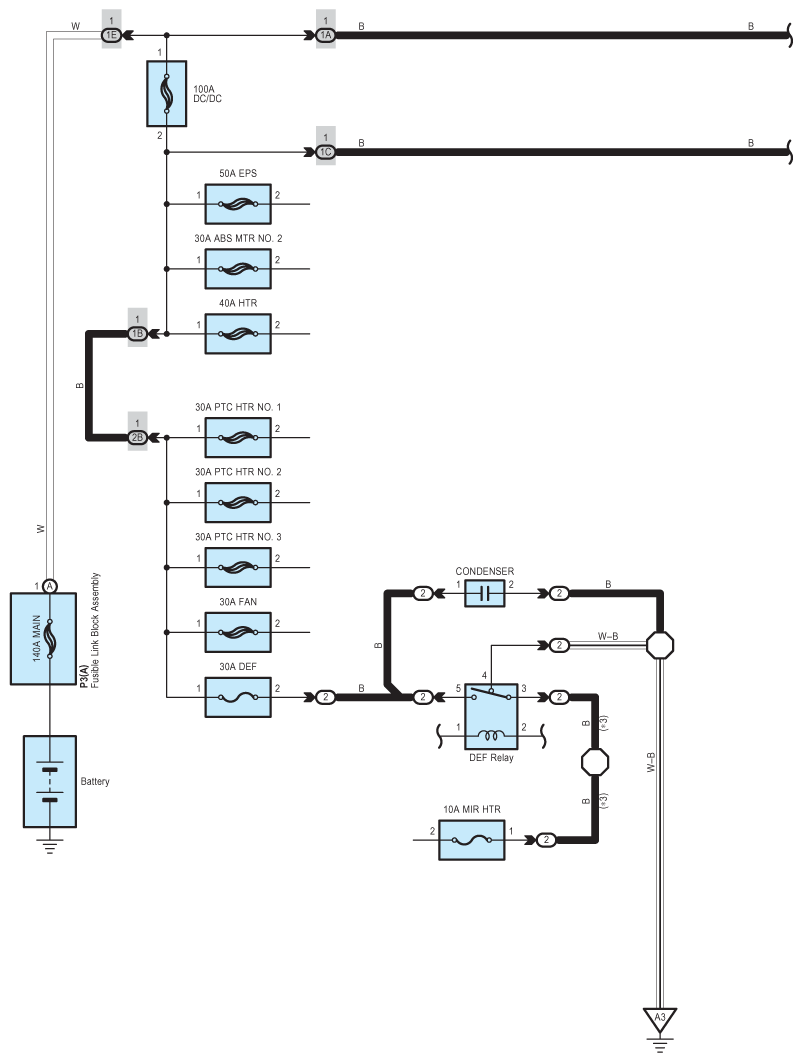

Fig 1: Power Source Wiring Diagram (1 Of 6)
G09101009Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

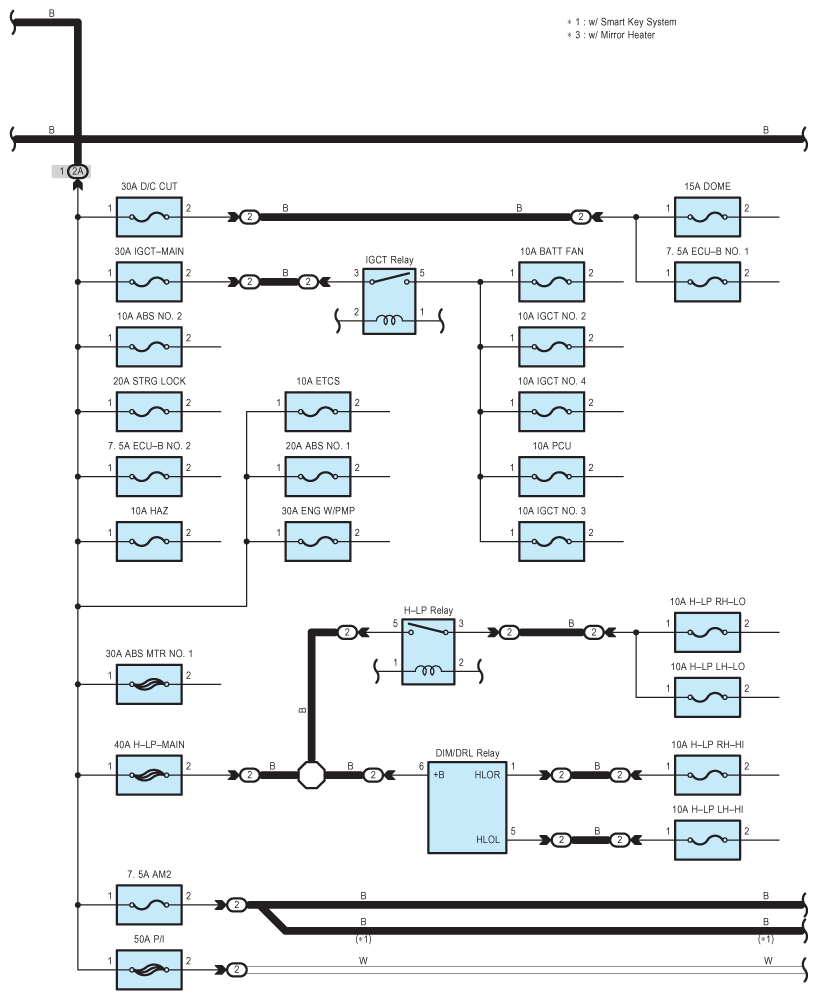

Fig 2: Power Source Wiring Diagram (2 Of 6)
G09101010Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

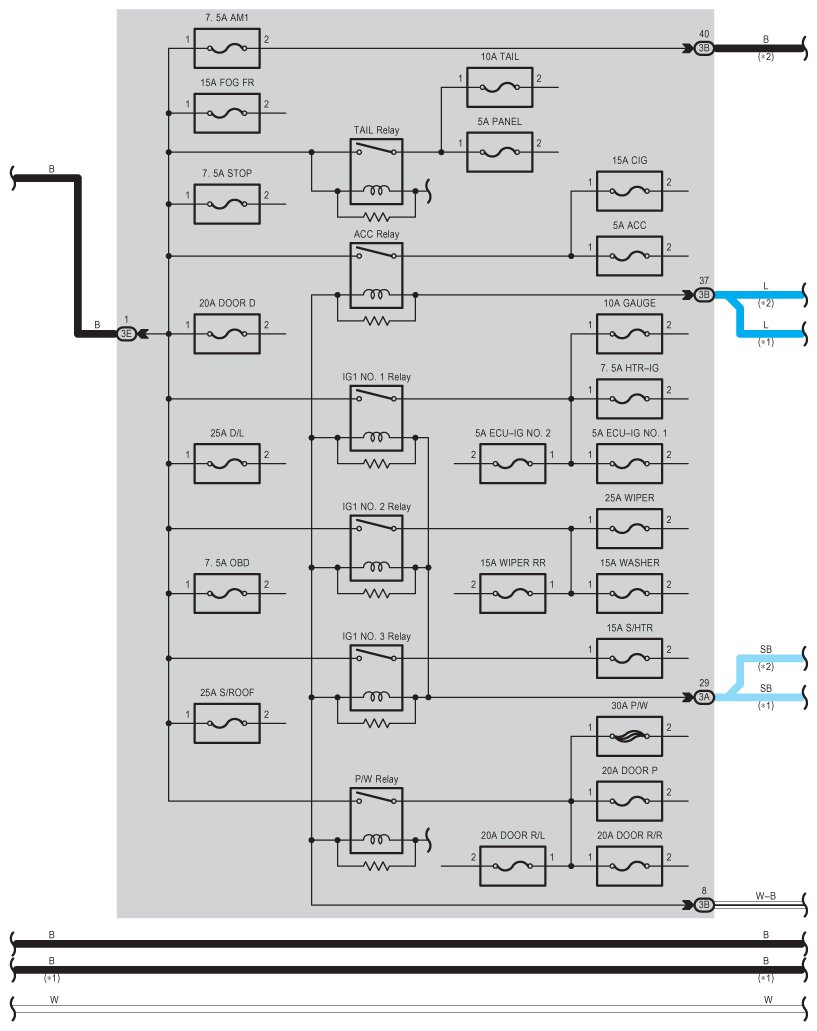

Fig 3: Power Source Wiring Diagram (3 Of 6)
G09101011Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

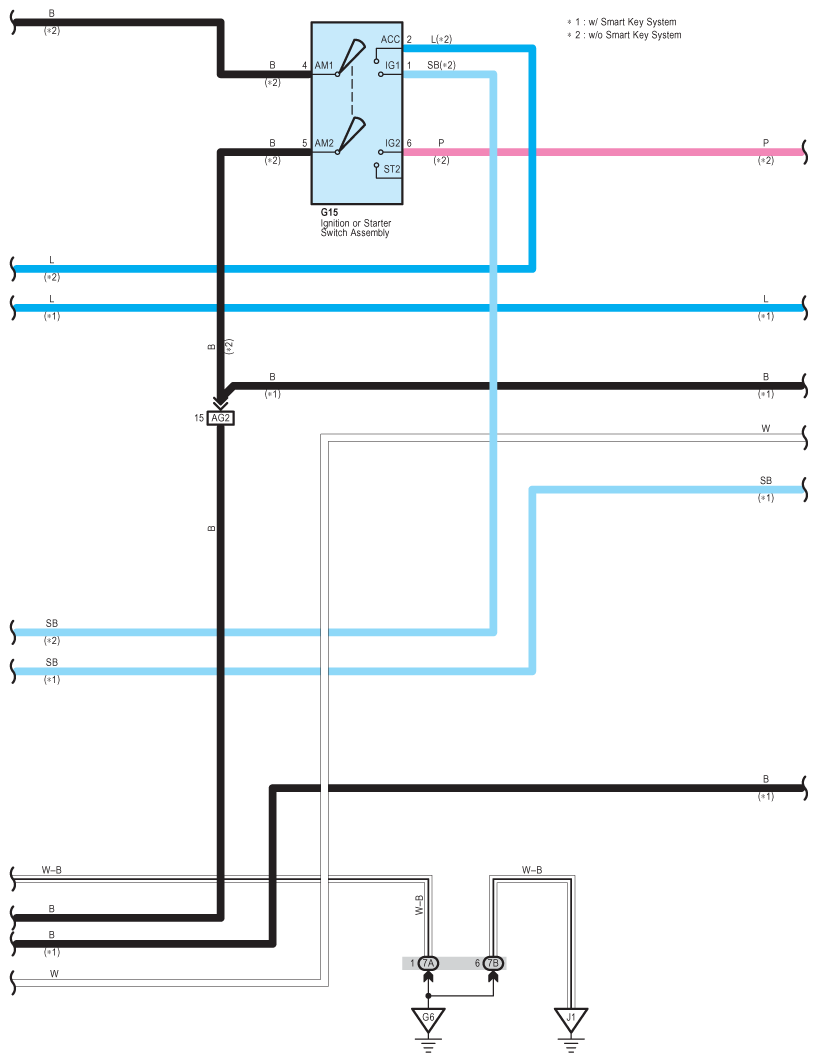

Fig 4: Power Source Wiring Diagram (4 Of 6)
G09101012Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

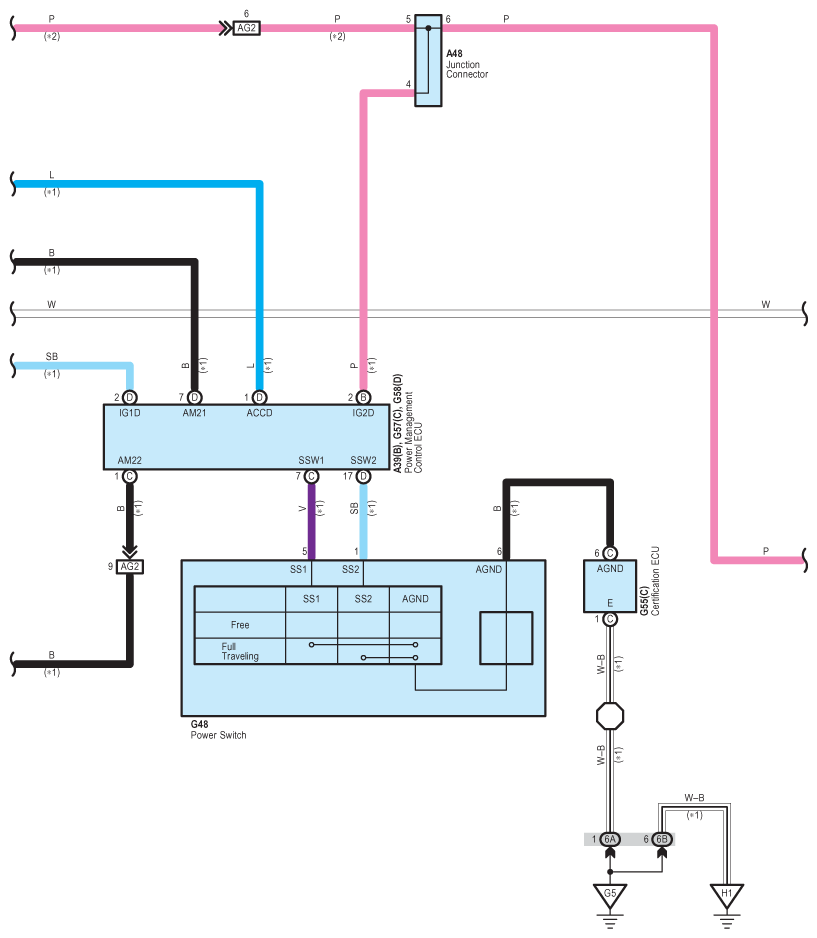

Fig 5: Power Source Wiring Diagram (5 Of 6)
G09101013Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

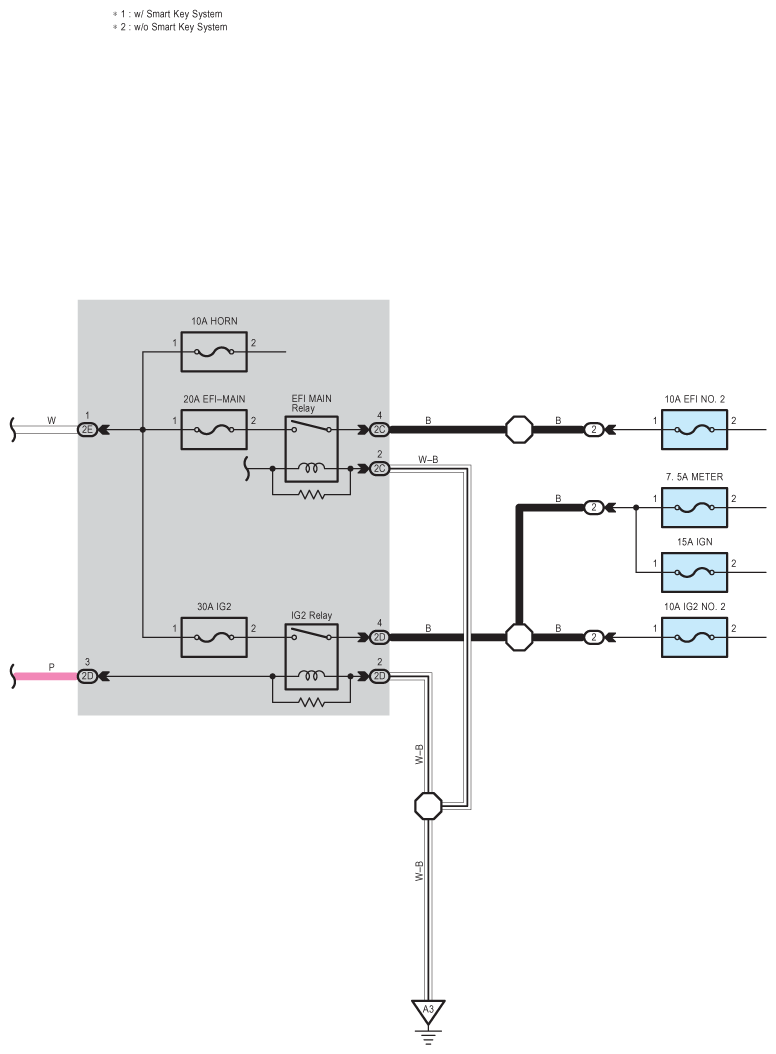

Fig 6: Power Source Wiring Diagram (6 Of 6)
G09101014Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
