DTC P0107: Manifold Absolute Pressure / Barometric Pressure Circuit Low Input; DTC P0108: Manifold Absolute Pressure / Barometric Pressure Circuit High Input: Procedure

1. Connect the Techstream to the DLC3.
2. Turn the ignition switch to ON (IG).
3. Turn the Techstream on.
4. Enter the following menus: Powertrain / Engine and ECT / Data List / Primary / MAP.
5. Read the MAP value.

   OK

   Same value as the actual atmospheric pressure.

   HINT:

   • Standard atmospheric pressure is 101 kPa(abs) [758 mmHg(abs)]. For every 100 m (328 ft) increase in altitude, pressure drops by 1 kPa (7.5 mmHg). The pressure also varies due to the weather (high atmospheric pressure, low atmospheric pressure).
   • Also, check "Atmosphere Pressure" in the Data List.

NG → See step   2

OK → See step   7

1. Disconnect the manifold absolute pressure sensor connector.

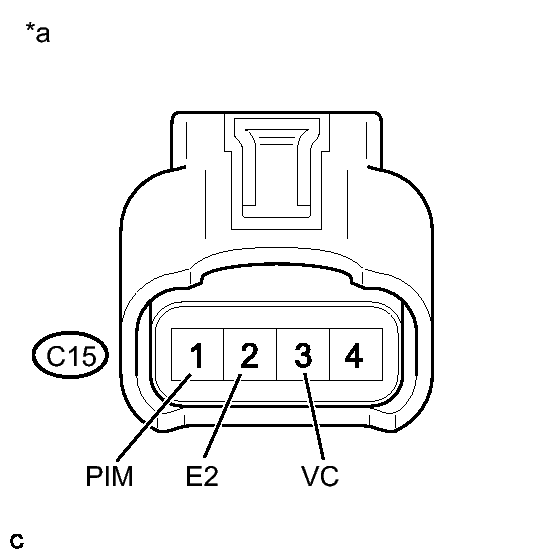

   Fig 1: Manifold Absolute Pressure Sensor Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Turn the ignition switch to ON (IG).
3. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   C15-3 (VC) - C15-2 (E2)	Ignition switch ON (IG)	4.75 to 5.25 V
   C15-1 (PIM) - C15-2 (E2)	Ignition switch ON (IG)	3.0 to 5.0 V

   TEXT IN ILLUSTRATION



   *a	Front view of wire harness connector (to Manifold Absolute Pressure Sensor)

NG → See step   5

OK: Go to next step

1. Replace the manifold absolute pressure sensor. Refer to REMOVAL .

NEXT: Go to next step

1. Connect the Techstream to the DLC3.
2. Turn the ignition switch to ON (IG) and turn the Techstream on.
3. Clear the DTCs. Refer to DTC CHECK / CLEAR .
4. Turn the ignition switch off and wait for at least 30 seconds.
5. Turn the ignition switch to ON (IG).
6. Turn the Techstream on.
7. Drive the vehicle in accordance with the diving pattern described in the Confirmation Driving Pattern.
8. Enter the following menus: Powertrain / Engine and ECT / Trouble Codes.
9. Read the DTCs.
   RESULT



   Result	Proceed to
   DTC is not output	A
   DTC P0107 or P0108 is output	B

B → See step   6

A → END

1. Disconnect the manifold absolute pressure sensor connector.
2. Disconnect the ECM connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   C15-3 (VC) - C10-118 (VCPM)	Always	Below 1 Ω
   C15-2 (E2) - C10-119 (EPIM)	Always	Below 1 Ω
   C15-1 (PIM) - C10-87 (PIM)	Always	Below 1 Ω
   C15-3 (VC) or C10-118 (VCPM) - Body ground	Always	10 kΩ or higher
   C15-1 (PIM) or C10-87 (PIM) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → See step   6
