DTC P0A1A-200: Generator Control Module; DTC P0A1A-792: Generator Control Module; DTC P0A1A-793: Generator Control Module: Wiring Diagram

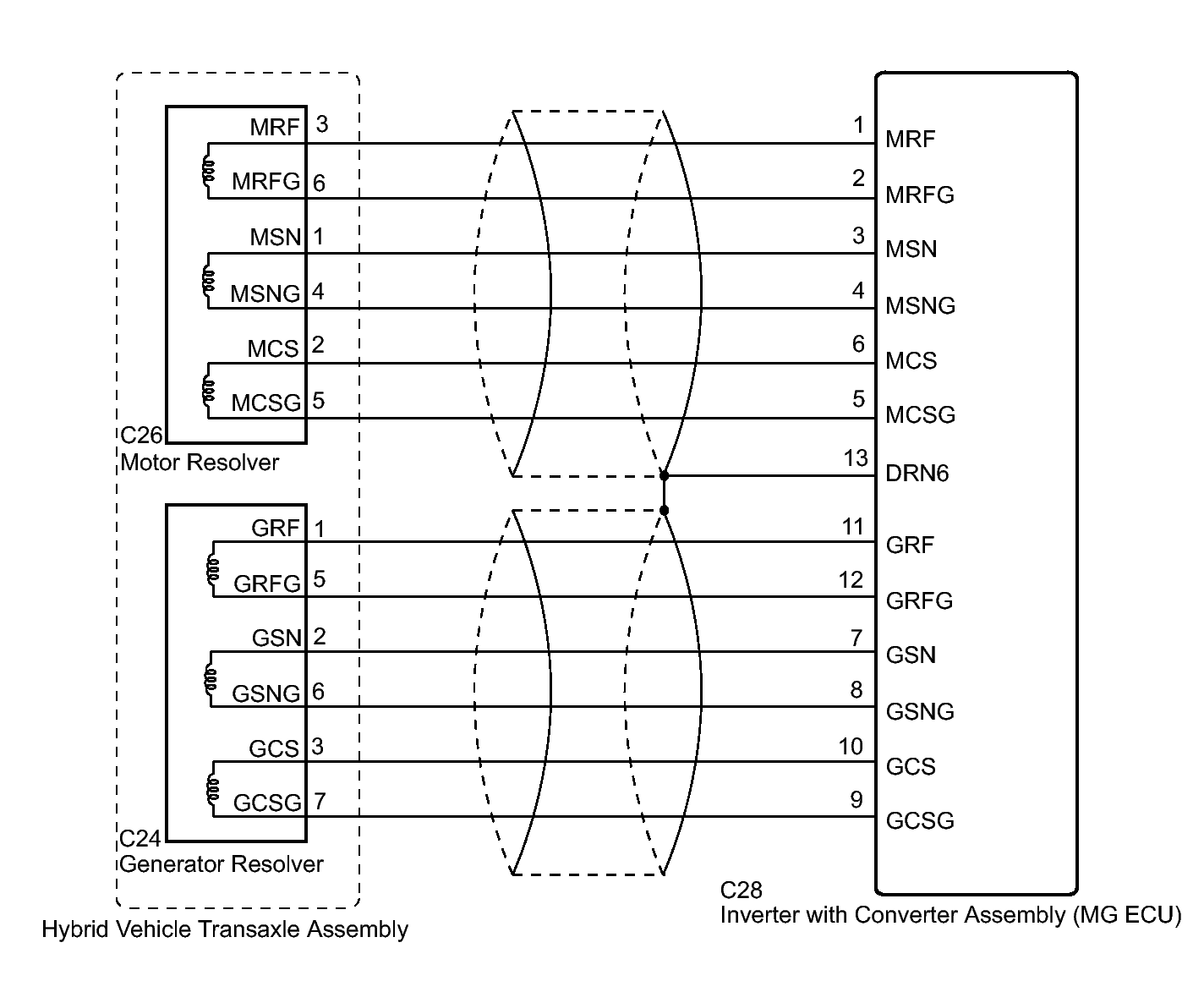

Fig 1: Identifying Generator Control Module Wiring Diagram
GTY327279Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
