Unable to Unlock Steering Wheel (Hybrid Control System cannot Start): Wiring Diagram

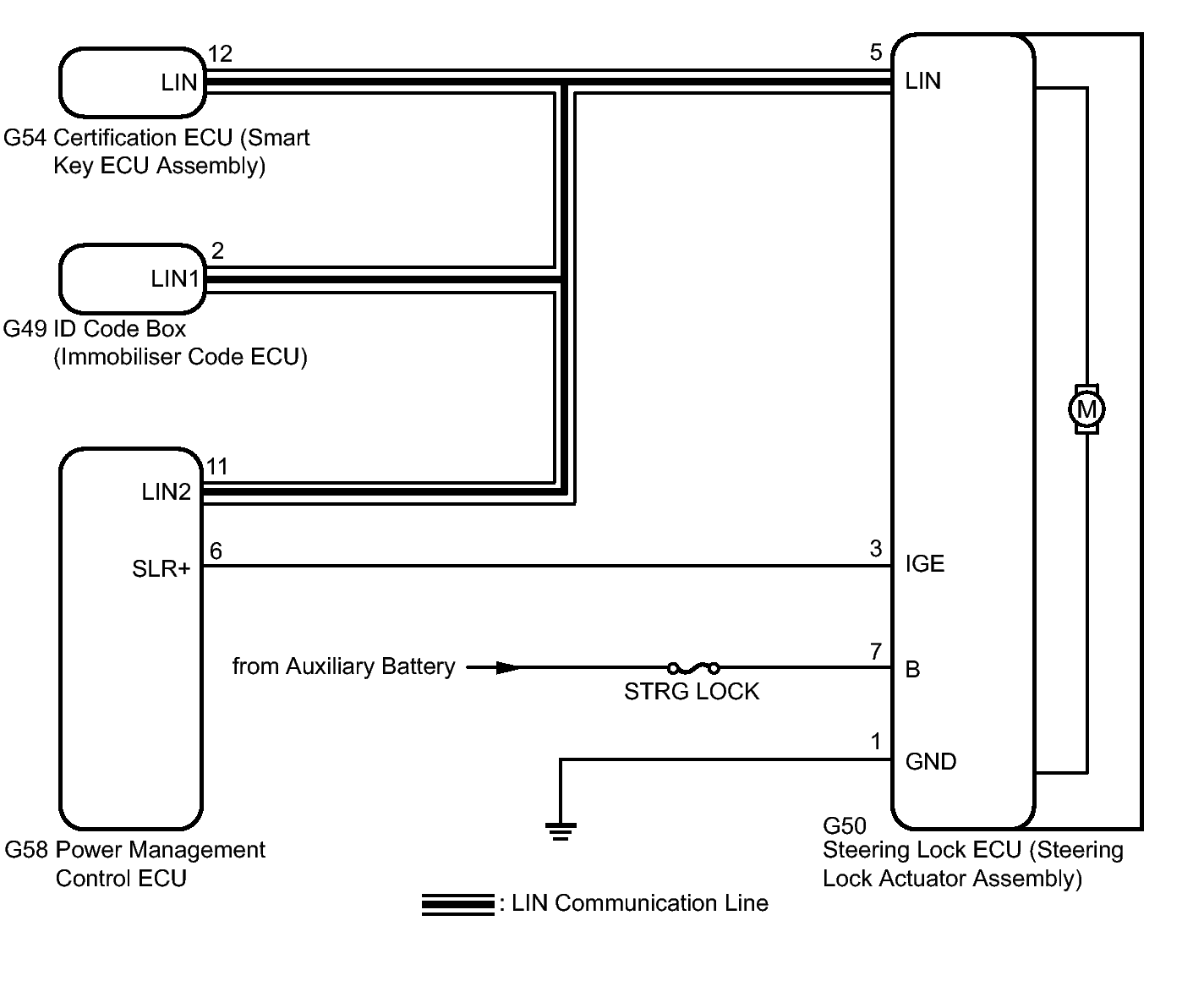

Fig 1: Steering Lock ECU (Steering Lock Actuator Assembly) - Wiring Diagram
GTY364037Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
