Door Lock Control: Notes

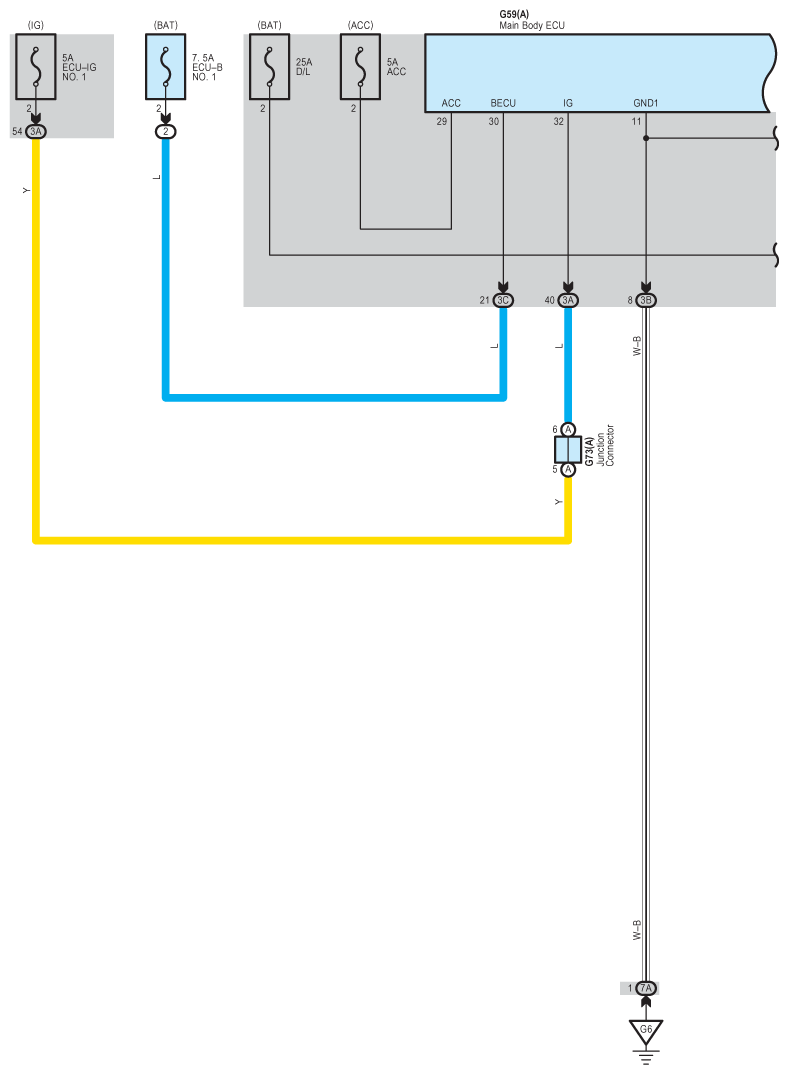

Fig 1: Door Lock Control Wiring Diagram (1 Of 6)

G09101104

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

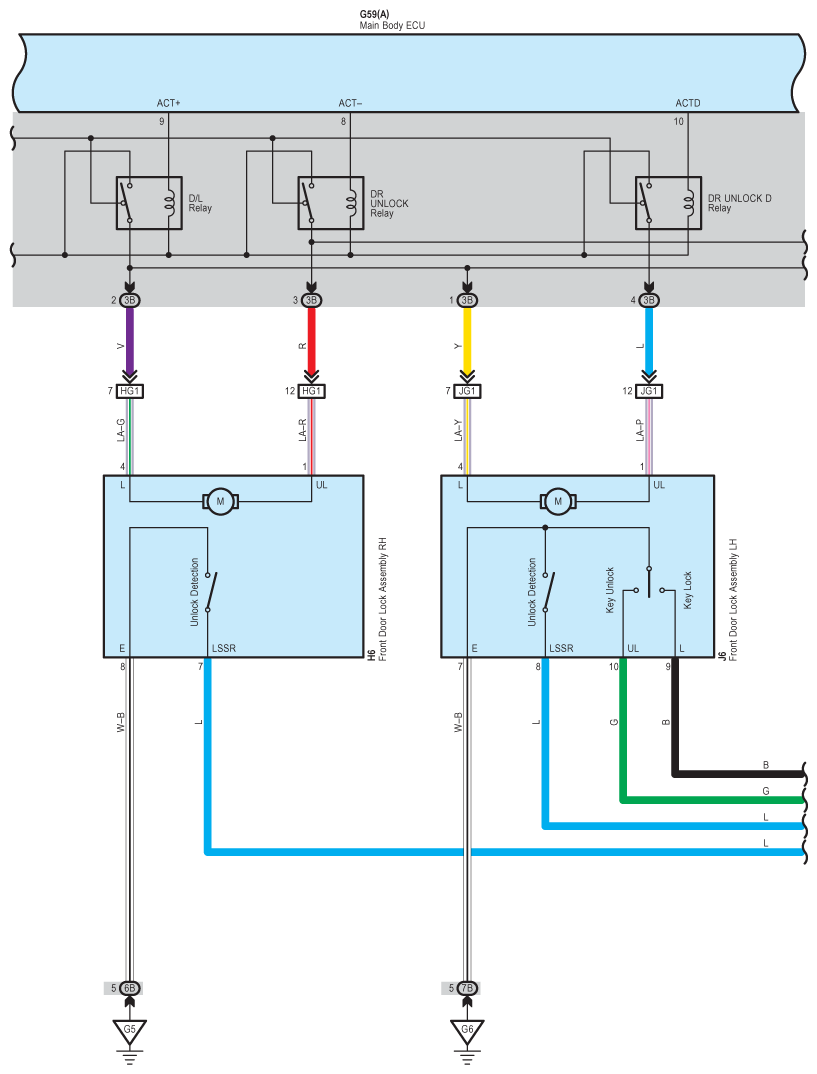

Fig 2: Door Lock Control Wiring Diagram (2 Of 6)

G09101105

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

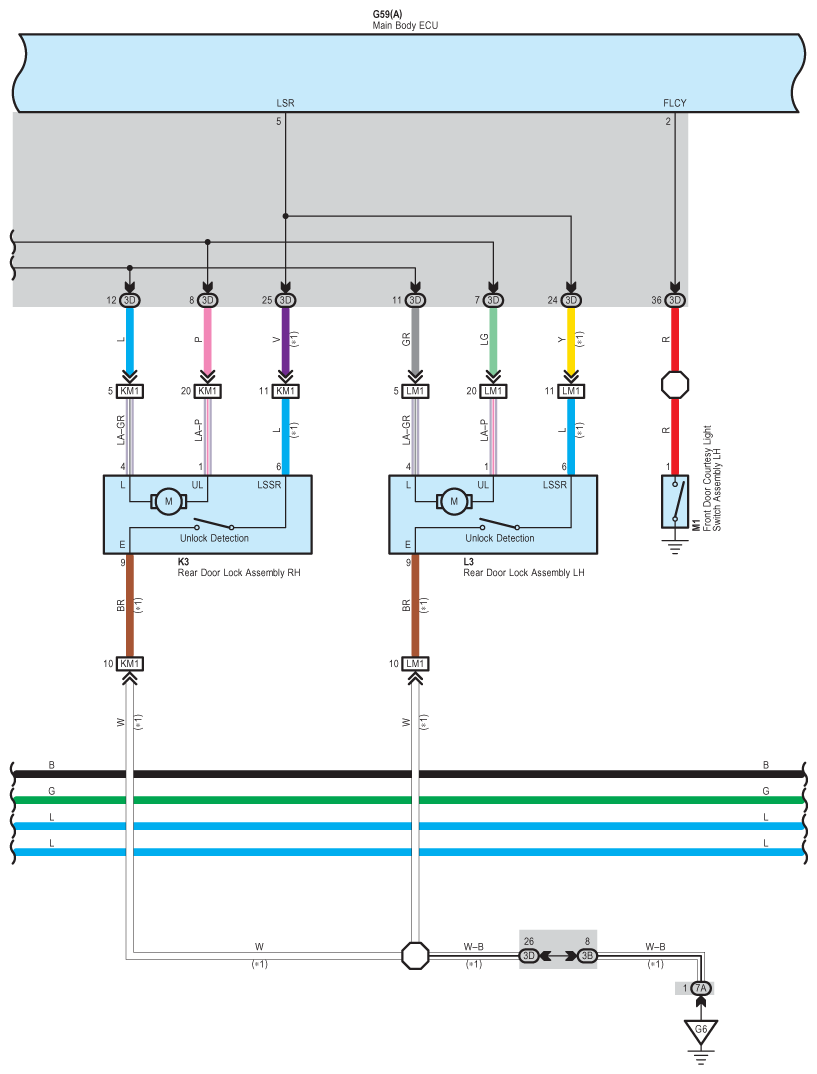

Fig 3: Door Lock Control Wiring Diagram (3 Of 6)

G09101106

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

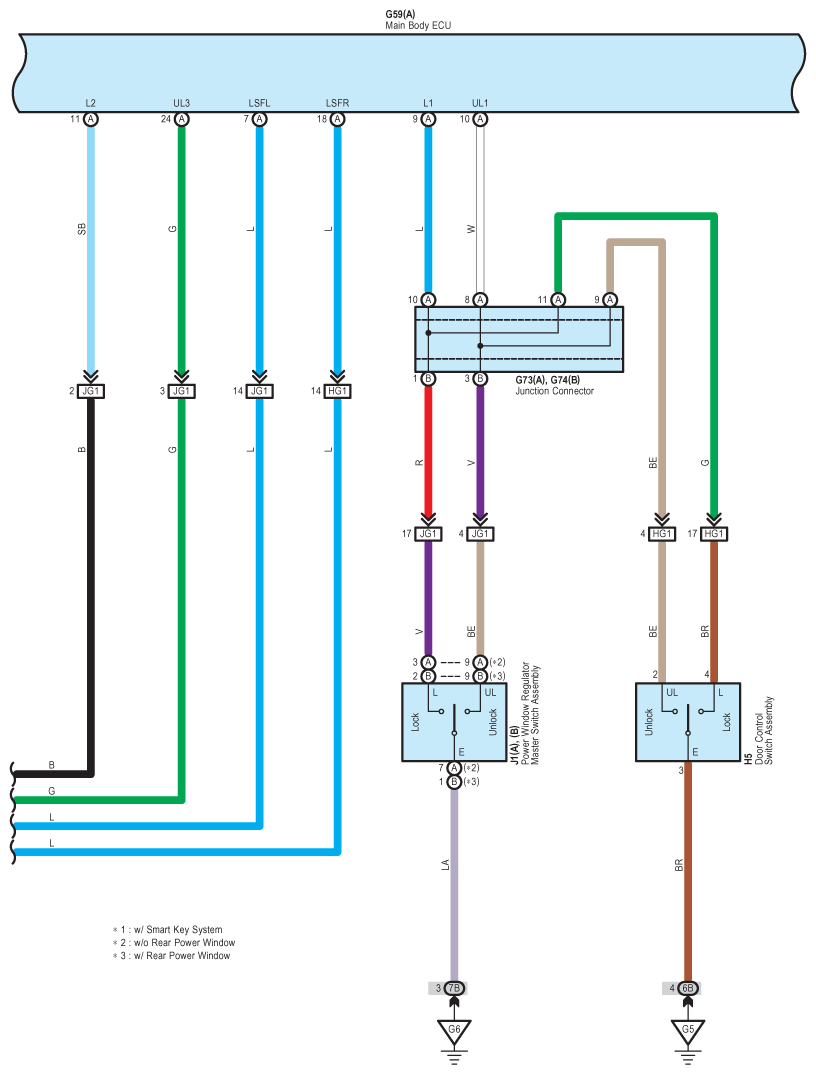

Fig 4: Door Lock Control Wiring Diagram (4 Of 6)

G09101107

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

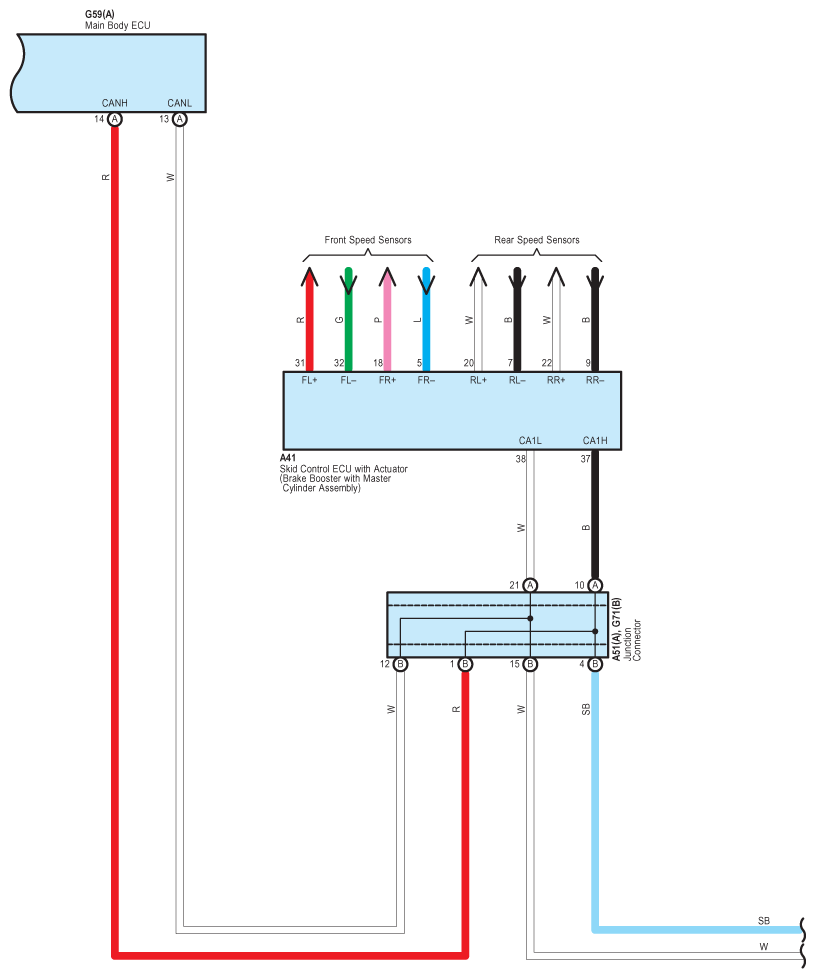

Fig 5: Door Lock Control Wiring Diagram (5 Of 6)

G09101108

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

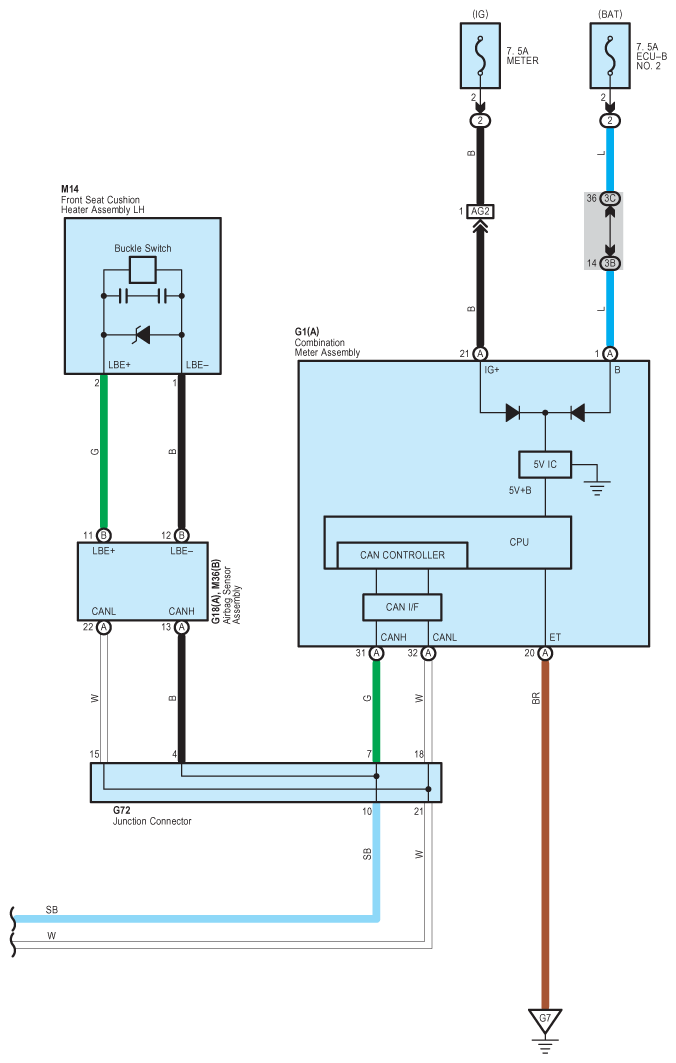

Fig 6: Door Lock Control Wiring Diagram (6 Of 6)

G09101109

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
