Interior Light: Notes

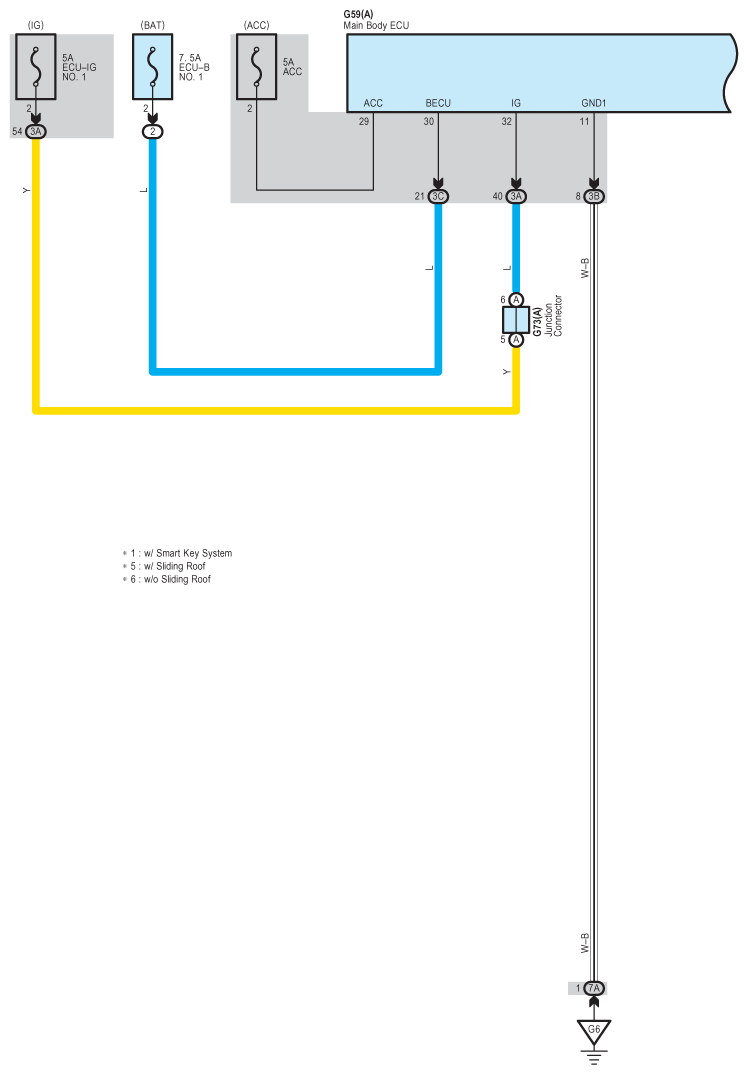

Fig 1: Interior Light Wiring Diagram (1 Of 4)
G09101097Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

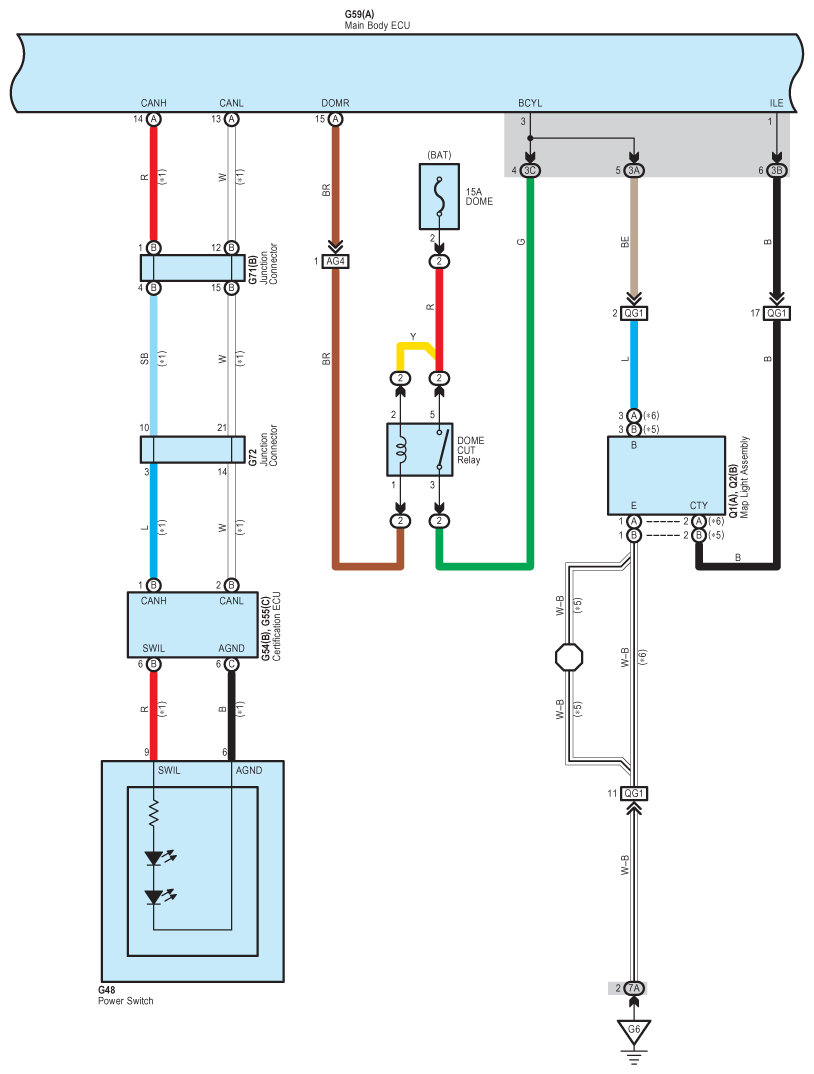

Fig 2: Interior Light Wiring Diagram (2 Of 4)
G09101098Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

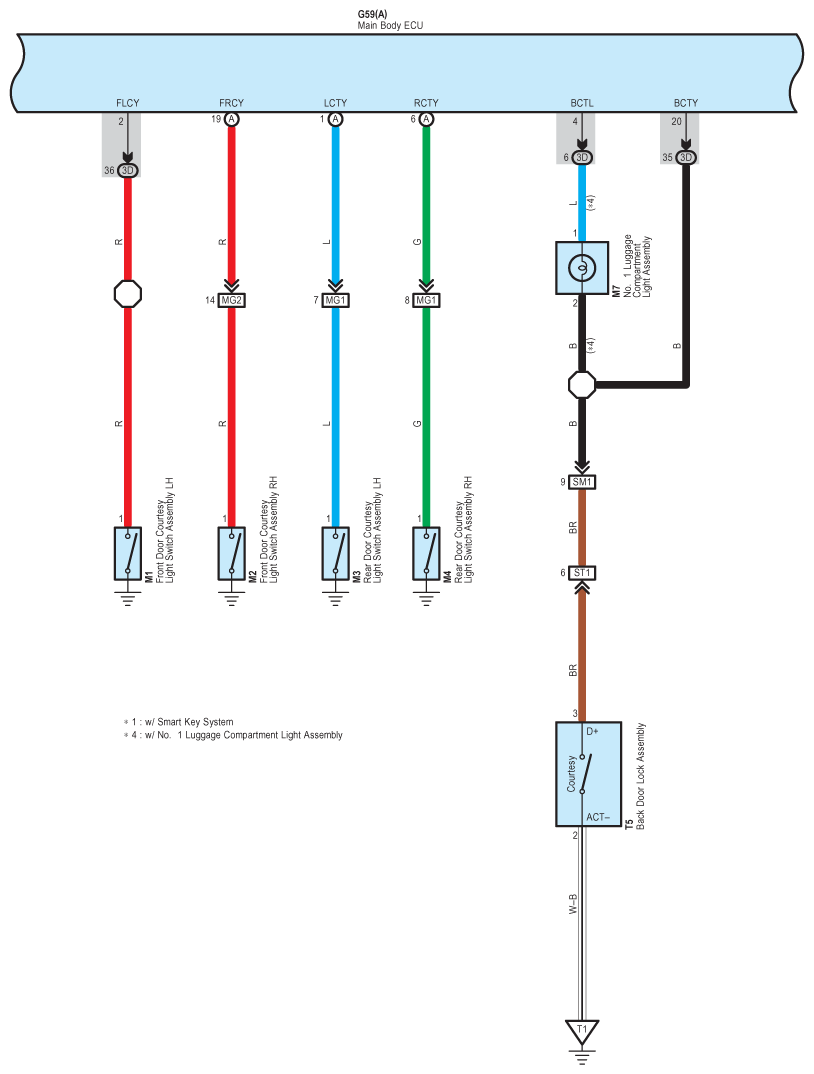

Fig 3: Interior Light Wiring Diagram (3 Of 4)
G09101099Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

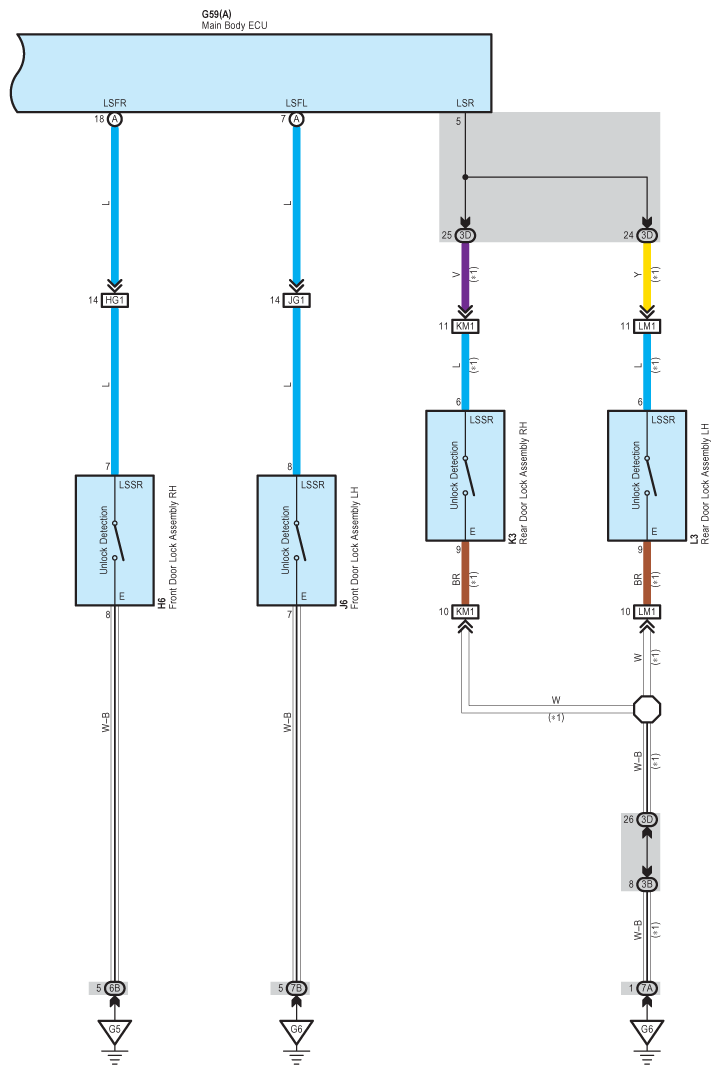

Fig 4: Interior Light Wiring Diagram (4 Of 4)
G09101100Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
