Shift lock: Notes

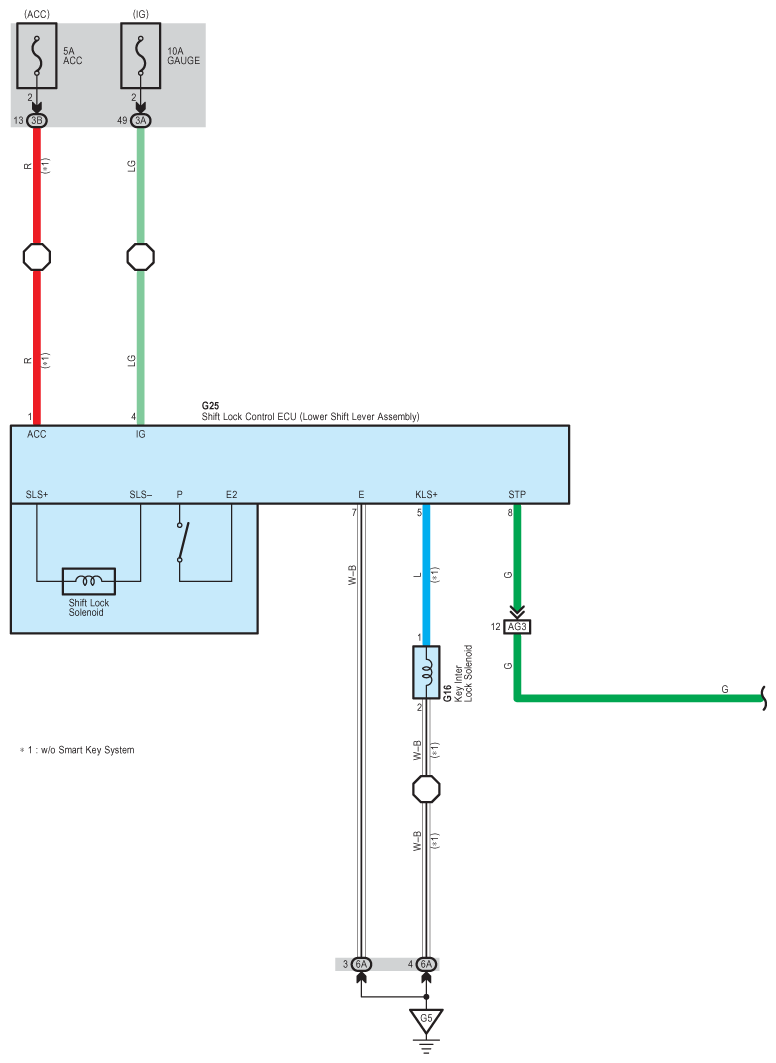

Fig 1: Shift Lock Wiring Diagram (1 Of 2)
G09101148Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

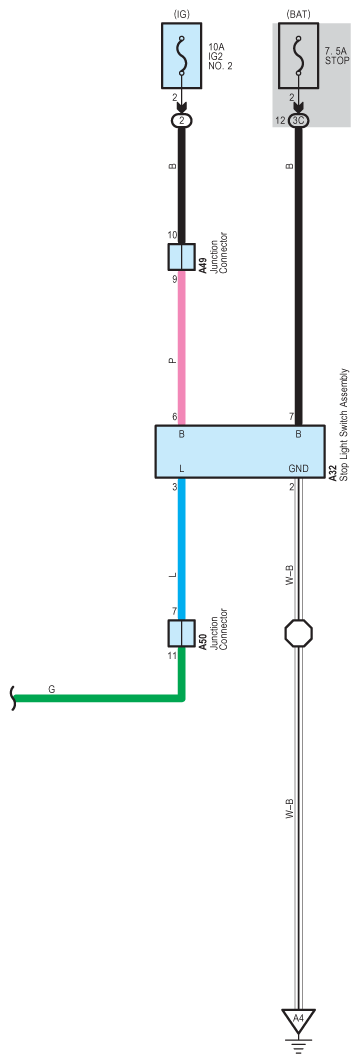

Fig 2: Shift Lock Wiring Diagram (2 Of 2)
G09101149Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
