System Diagram
WARNING:
This page is about a different variant/trim than selected.

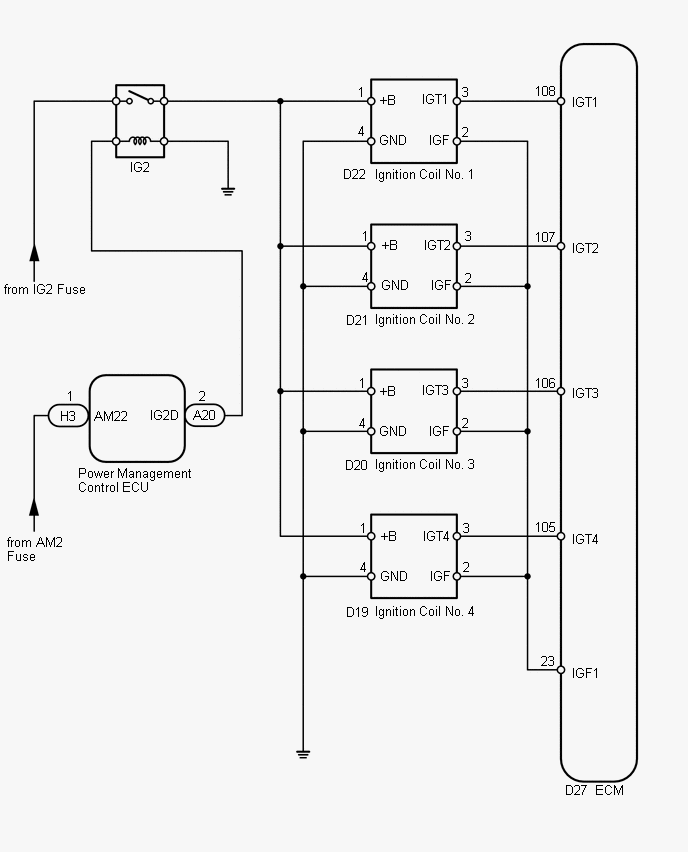

Fig 1: Identifying Ignition System Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
