System Diagram

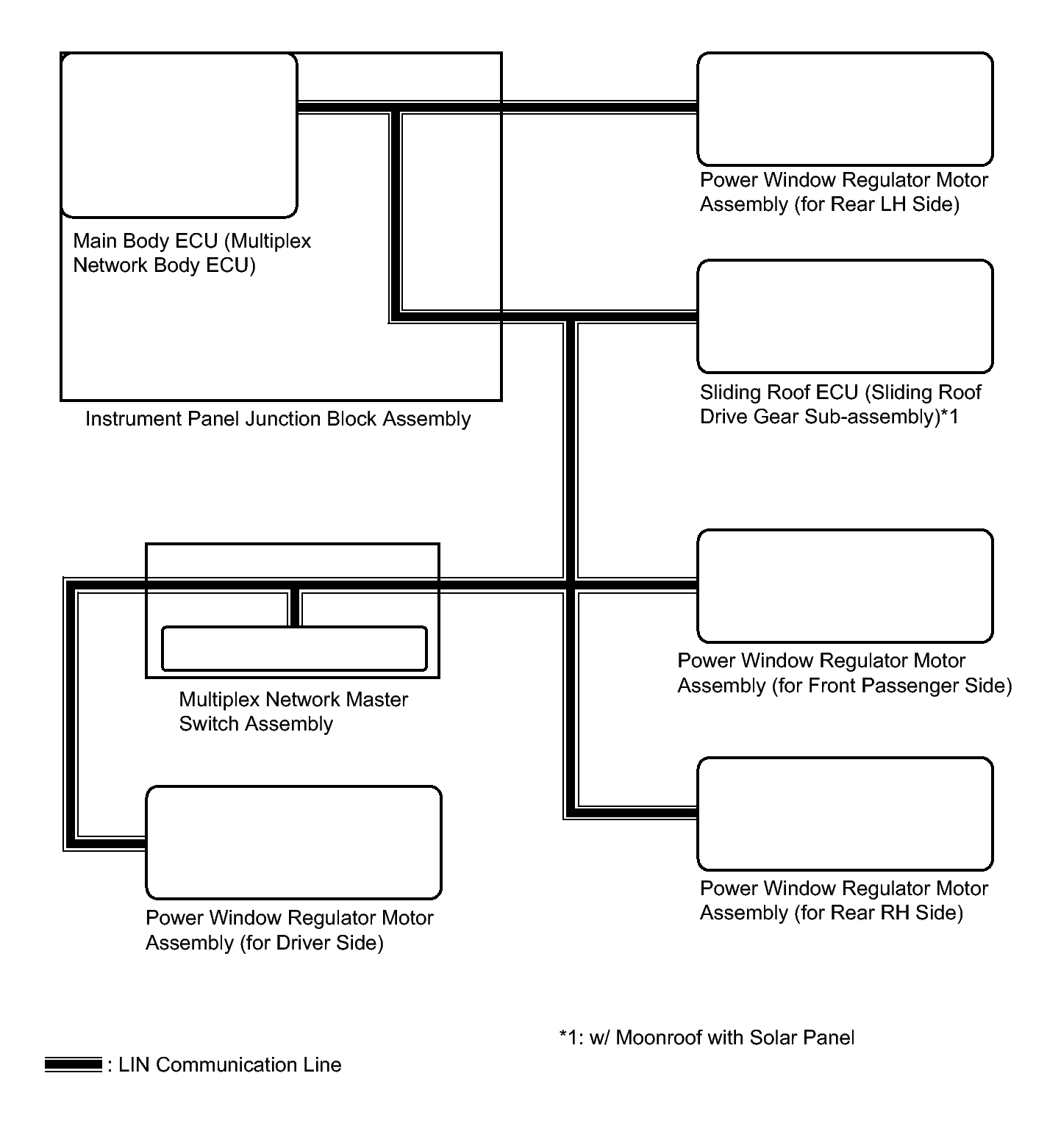

  1. DOOR BUS LINES
    Fig 1: Door Bus Lines - System Diagram
    GTY220321Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

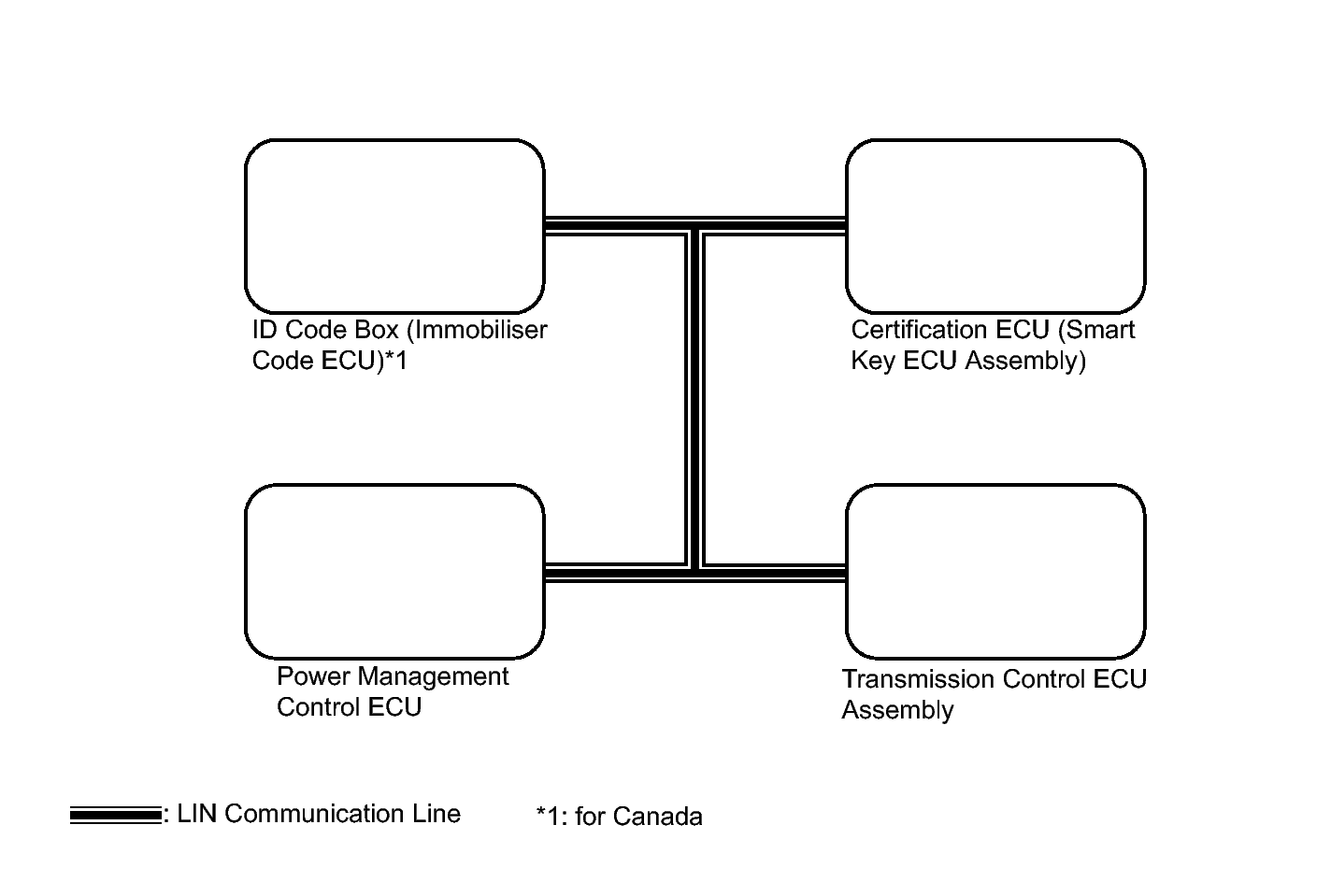

  2. CERTIFICATION BUS LINES
    Fig 2: Certification Bus Lines - System Diagram
    GTY337086Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

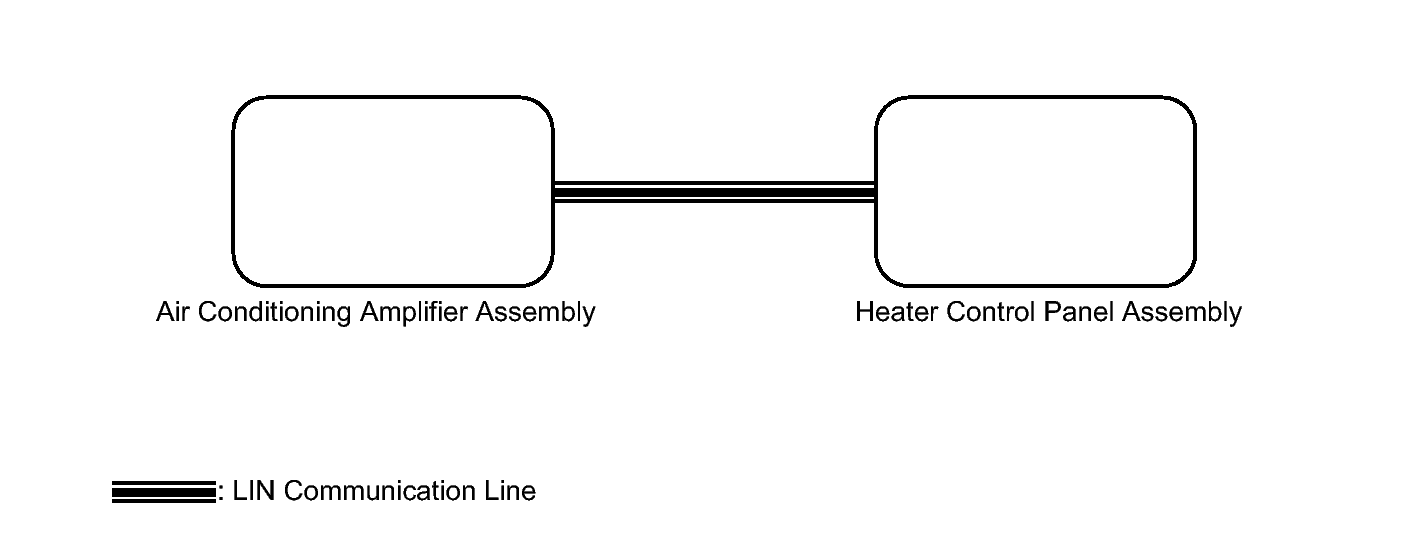

  3. AIR CONDITIONING BUS LINES
    Fig 3: Air Conditioning Bus Lines - System Diagram
    GTY235086Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
