Distance Control Switch Circuit: Procedure

1. Connect the Techstream to the DLC3.
2. Turn the power switch on (IG).
3. Turn the Techstream on.
4. Enter the following menus: Powertrain / Radar Cruise / Data List / Distance Control Switch.
5. Check the Data List proper functioning of the distance control switch.
   RADAR CRUISE



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   Distance Control Switch	Distance control switch signal / ON or OFF	ON: Distance control switch on OFF: Distance control switch off	-

   OK

   When the distance control switch is operated, the display changes in accordance with switch operation.

NG → See step   2

OK → See step   7

1. Remove the steering pad switch RH. Refer to REMOVAL .

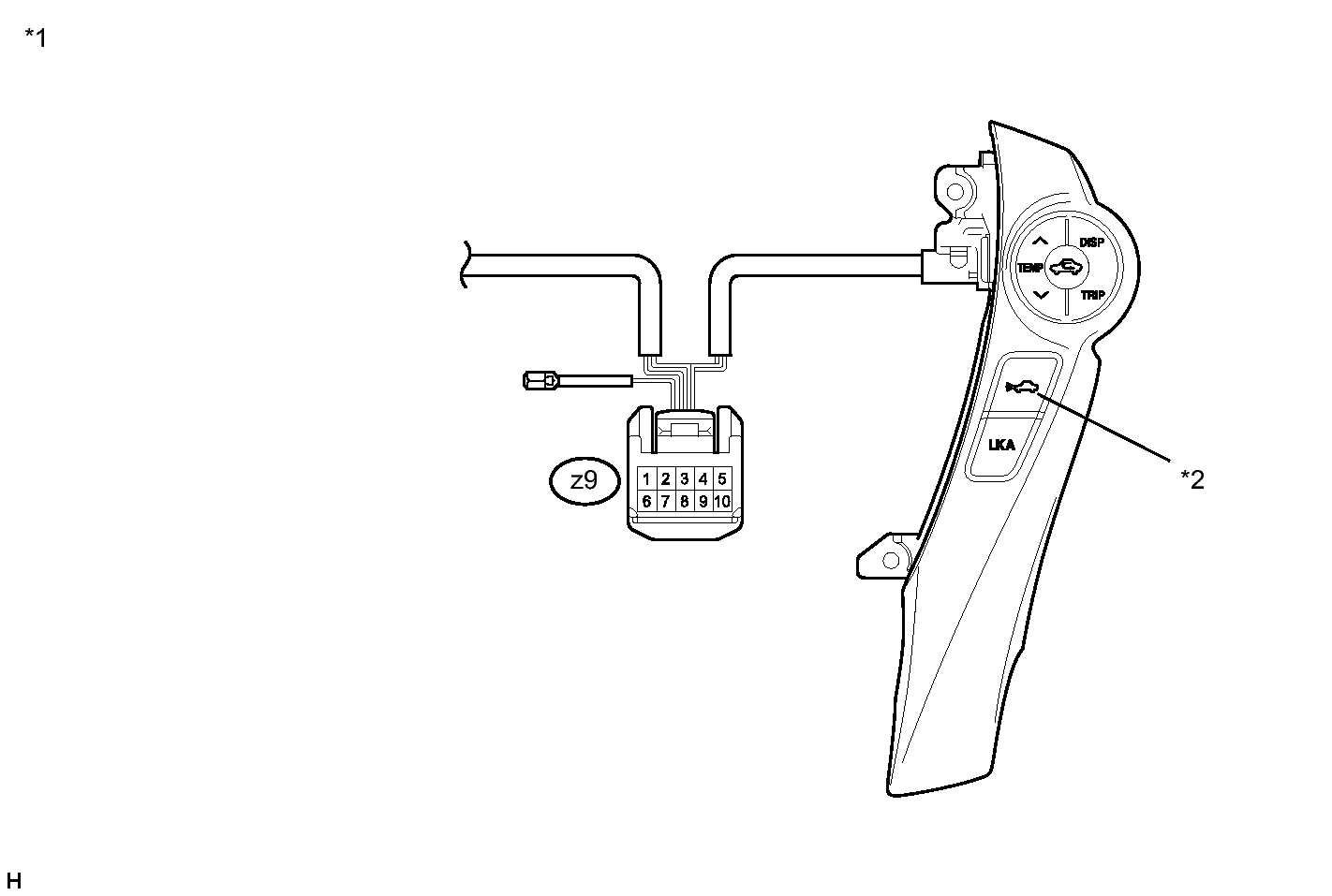

   Fig 1: Steering Pad Switch RH

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   TEXT IN ILLUSTRATION



   *1

   Component without harness connected (Steering Pad Switch RH)

   *2

   Distance Control Switch

2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Switch Condition	Specified Condition
   z9-4 - z9-6	Distance control switch ON	Below 2.5 Ω
   z9-4 - z9-6	Distance control switch OFF	10 kΩ or higher

3. Install the steering pad switch RH. Refer to INSTALLATION .

NG → See step   8

OK: Go to next step

1. Remove the spiral with sensor cable sub-assembly. Refer to REMOVAL .
   Fig 2: Inspecting Spiral With Sensor Cable Sub-Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance (Check for Open)

   Tester Connection	Condition	Specified Condition
   z9-4 - L52-11 (DIST)	The spiral with sensor cable sub-assembly is centered	Below 1 Ω
   	The spiral with sensor cable sub-assembly position is 2.5 rotations to the left
   	The spiral with sensor cable sub-assembly position is 2.5 rotations to the right
   z9-6 - L52-2 (ECC)	The spiral with sensor cable sub-assembly is centered	Below 1 Ω
   	The spiral with sensor cable sub-assembly position is 2.5 rotations to the left
   	The spiral with sensor cable sub-assembly position is 2.5 rotations to the right

   TEXT IN ILLUSTRATION



   *1	Component without harness connected (Spiral with Sensor Cable Sub-assembly)

   HINT:

   The spiral with sensor cable sub-assembly makes a maximum of approximately 5 rotations.

3. Install the spiral with sensor cable sub-assembly. Refer to INSTALLATION .

NG → See step   6

OK: Go to next step

1. Disconnect the driving support ECU connector.
2. Disconnect the spiral with sensor cable sub-assembly connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance (Check for Open)

   Tester Connection	Condition	Specified Condition
   L60-6 (SPSW) - L52-11 (DIST)	Always	Below 1 Ω
   L60-6 (SPSW) or L52-11 (DIST) - Body ground	Always	Below 1 Ω

4. Reconnect the driving support ECU connector.
5. Reconnect the spiral with sensor cable sub-assembly connector.

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR (SPIRAL WITH SENSOR CABLE SUB-ASSEMBLY - DRIVING SUPPORT ECU)

OK: Go to next step

1. Disconnect the spiral with sensor cable sub-assembly connector.
   Fig 3: View Of Wire Harness Connector To Spiral With Sensor Cable Sub-Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance (Check for Open)

   Tester Connection	Condition	Specified Condition
   L52-2 (ECC) - Body ground	Always	Below 1 Ω

   TEXT IN ILLUSTRATION



   *1	Front view of wire harness connector (to Spiral with Sensor Cable Sub-assembly)

3. Reconnect the spiral with sensor cable sub-assembly connector.

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR (SPIRAL WITH SENSOR CABLE SUB-ASSEMBLY - BODY GROUND)

OK → See step   9
