Washer Signal Circuit: Wiring Diagram

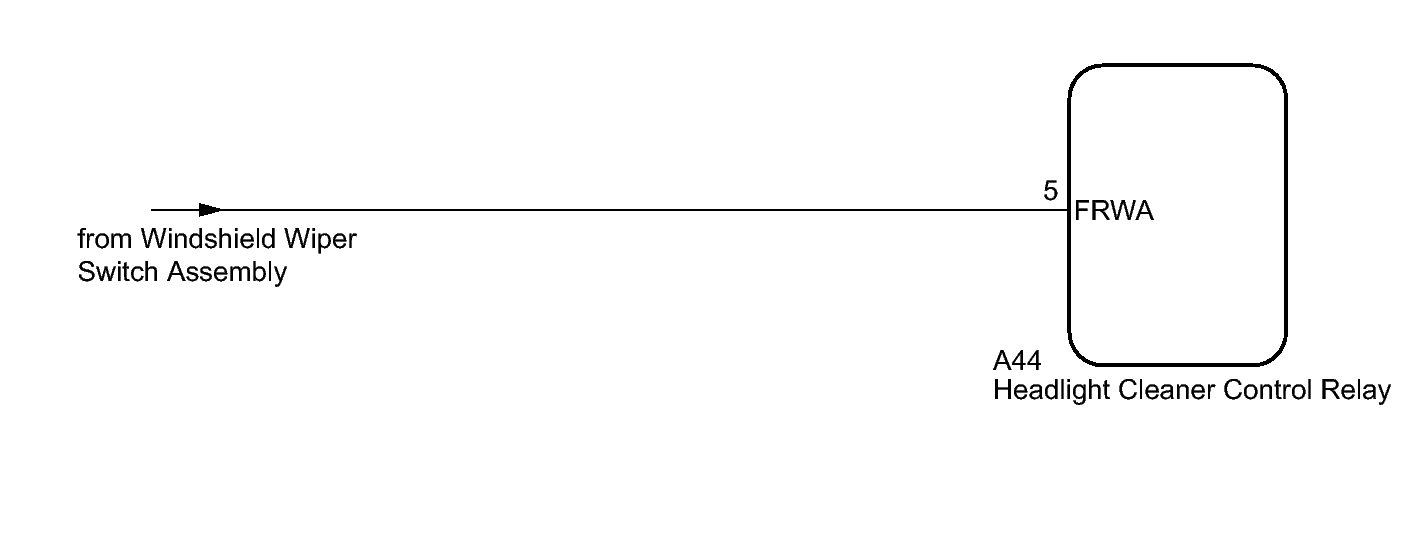

Fig 1: Identifying Washer Signal Circuit Wiring Diagram
GTY212738Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
