Headlight Cleaner Switch: Installation: Installation

  1. INSTALL HEADLIGHT CLEANER SWITCH ASSEMBLY
    1. Engage the 2 claws to install the headlight cleaner switch assembly as shown in the illustration.

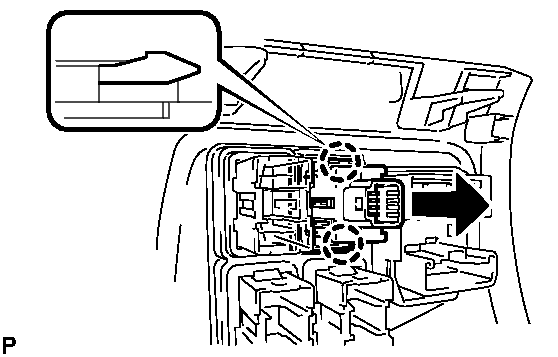

      Fig 1: Identifying Headlight Cleaner Switch Assembly
      GTY227772Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY  . Refer to INSTALLATION - Step 22
  3. INSTALL COWL SIDE TRIM SUB-ASSEMBLY LH  . Refer to INSTALLATION - Step 45
  4. INSTALL FRONT DOOR SCUFF PLATE LH  . Refer to INSTALLATION - Step 46
