Fuel Sender Gauge Assembly: Installation: Installation

WARNING: This page is about a different variant/trim than selected.

INSTALL FUEL SENDER GAUGE ASSEMBLY
1. Install the fuel sender gauge assembly by sliding it downward.

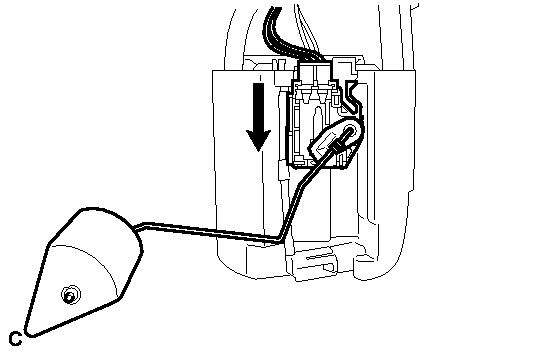

  Fig 1: Installing Fuel Sender Gauge Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the connector of the fuel sender gauge assembly.
3. Install the 2 harness protectors.
  NOTE:
  Do not damage the wire harness.
4. Connect the 3 harness clamps.
INSTALL FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY
Refer to INSTALLATION
