Fuel Pressure Regulator: Installation: Installation

  1. INSTALL FUEL PRESSURE REGULATOR ASSEMBLY
    1. Apply gasoline to 2 new O-rings and then install them to the fuel pressure regulator assembly.

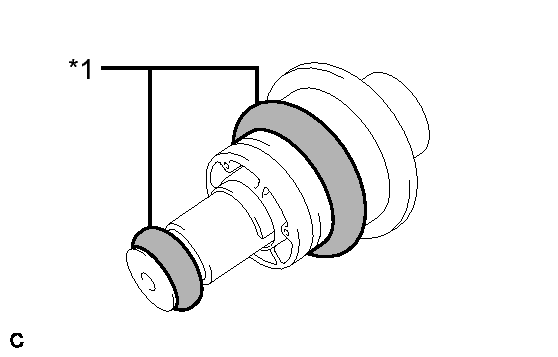

      Fig 1: Identifying Pressure Regulator Assembly & O-Rings
      GTY231285Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 O-ring
    2. Install the fuel pressure regulator assembly.

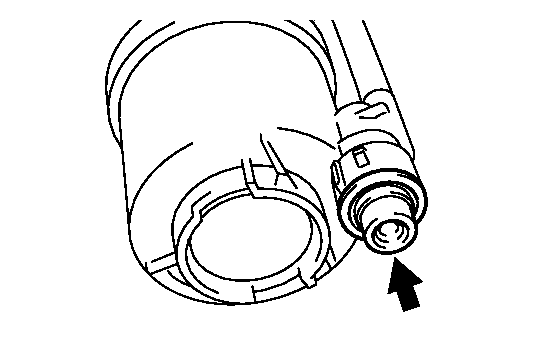

      Fig 2: Locating Fuel Pressure Regulator Assembly
      GTY222438Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL FUEL PUMP  See step  1
  3. INSTALL FUEL SENDER GAUGE ASSEMBLY  See step  1
  4. INSTALL FUEL SUCTION TUBE ASSEMBLY WITH PUMP AND GAUGE
    1. Install the fuel suction tube assembly with pump and gauge. Refer to INSTALLATION .
