Electric Vehicle Charger Assembly: Installation: Installation

WARNING: This page is about a different variant/trim than selected.
  1. INSTALL ELECTRIC VEHICLE CHARGER SUB-ASSEMBLY
    WARNING:

    Wear insulated gloves.

    1. Install the plugin charge control ECU assembly with the 2 nuts to the electric vehicle charger sub-assembly.

      Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

    2. Connect the connector.
    3. Install the electric vehicle charger sub-assembly to the electric vehicle charger bracket as shown in the illustration.

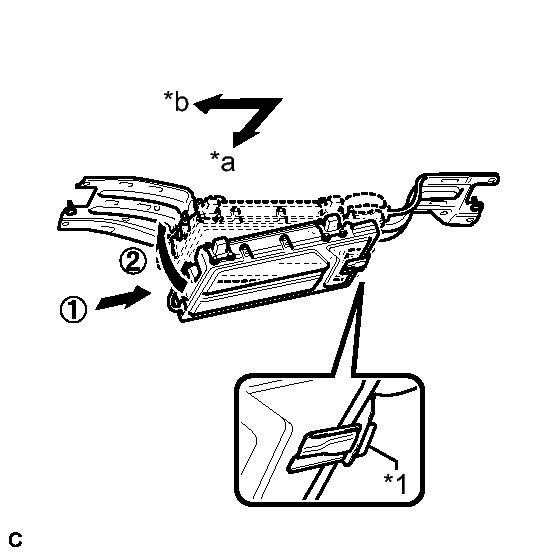

      Fig 1: Installing Electric Vehicle Charger Sub-Assembly
      GTY340828Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Do not drop the electric vehicle charger sub-assembly.
      • Support the electric vehicle charger sub-assembly using an attachment or similar item to ensure that it does not fall.
      • Connect the bracket of the electric vehicle charger sub-assembly to the electric vehicle charger bracket.
      • Do not damage the wire harness of the electric vehicle charger sub-assembly using the electric vehicle charger bracket.
      TEXT IN ILLUSTRATION

      *1 Bracket
      *a Front Side
      *b Left Side
    4. Install the 4 bolts.

      Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

  2. CONNECT ELECTRIC VEHICLE CHARGE CONNECTOR BRACKET
    WARNING:

    Wear insulated gloves.

    1. Install the electric vehicle charge connector bracket with the 2 bolts.

      Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

    2. Connect the 2 clamps.
    3. Connect the 2 connectors and slide the 2 green-colored locks in the direction indicated by the arrow in the illustration to lock them securely.

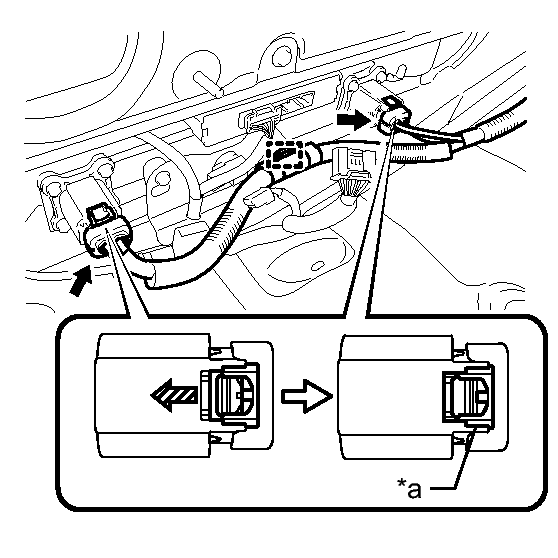

      Fig 2: Connecting Connectors
      GTY333576Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Green-colored Lock
      NOTE:

      Make sure that the connectors are connected securely.

    4. Connect the clamp.
    5. Connect the 2 connectors and clamp.
  3. INSTALL HYBRID BATTERY HOSE ASSEMBLY  See step  14
  4. INSTALL BATTERY COOLING BLOWER ASSEMBLY (for RH Side)  See step  1
  5. INSTALL BATTERY COOLING BLOWER ASSEMBLY (for LH Side)  See step  2
  6. INSTALL REAR DECK TRIM COVER  . Refer to INSTALLATION - Step 21
  7. INSTALL DECK TRIM SERVICE HOLE COVER  . Refer to INSTALLATION - Step 22
  8. INSTALL DECK FLOOR BOX LH

    HINT:

    Use the same procedure described for the RH side. Refer to INSTALLATION - Step 54 .

  9. INSTALL REAR NO. 4 FLOOR BOARD SUB-ASSEMBLY  . Refer to INSTALLATION - Step 27
  10. INSTALL REAR NO. 2 FLOOR BOARD  . Refer to INSTALLATION - Step 56
  11. INSTALL SERVICE PLUG GRIP

    Refer to INSTALLATION
