Water Pump With Motor: Installation: Installation

1. Install the inverter water pump assembly and water pump bracket with the 3 bolts.

   Torque: 6.1 N*m (62 kgf*cm, 54 in.*lbf)

   NOTE:

   Do not hold the inverter water pump assembly by the connector terminals when removing or installing it.

2. Connect the water hoses and connector.

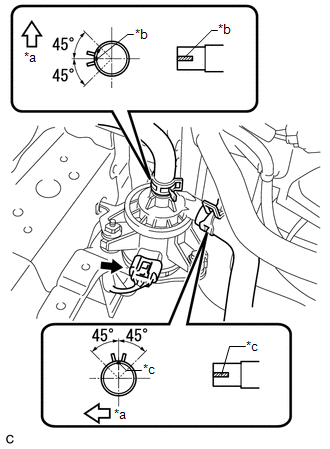

   Fig 1: Identifying Connector & Hose Clamp Orientation

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   TEXT IN ILLUSTRATION



   *a	Front Side
   *b	Alignment Mark (Yellow)
   *c	Alignment Mark (Green)
   *d	Alignment Mark (White)

   NOTE:

   • Make sure that the clip is positioned as shown in the illustration.
   • Make sure to align the alignment marks of the hoses with the ribs of the inverter water pump assembly.
   • Do not remove the pieces of cloth from the pipes and disconnected hoses until installation to prevent foreign matter from entering the inverter water pump and cooling system.

Refer to INSTALLATION .
