Exhaust Pipe Gas Control Actuator: Installation: Installation
WARNING: This page is about a different variant/trim than selected.
- INSTALL EXHAUST PIPE GAS CONTROL ACTUATOR NOTE:
When installing the water hose, ensure that the exhaust heat recirculation system is filled with coolant. Otherwise, the electric water pump may be damaged.
- Apply engine coolant to the O-ring.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
TEXT IN ILLUSTRATION*1 Exhaust Pipe Gas Control Actuator Case *2 Exhaust Pipe Gas Control Stopper *3 Exhaust Pipe Gas Control Actuator *4 O-ring *5 Piston - Install the exhaust pipe gas control actuator and exhaust pipe gas control stopper.NOTE:
- Be sure to install the exhaust pipe gas control stopper in the correct direction.
- Check that the O-ring is not deformed, cracked or swollen.
- Be sure to install the exhaust pipe gas control actuator until it touches the exhaust pipe gas control stopper.
- When installing the exhaust pipe gas control actuator, do not push on the piston.
- Make sure that the exhaust pipe gas control actuator and the exhaust pipe gas control stopper are free of oil.
- Install a new gasket and the exhaust pipe gas control actuator case with the 3 bolts and 3 nuts.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
TEXT IN ILLUSTRATION*1 Gasket *2 Exhaust Pipe Gas Control Actuator Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)
NOTE:- Be sure to install a new gasket in the correct direction.
- Make sure that the exhaust pipe gas control actuator case and the new gasket are free of oil.

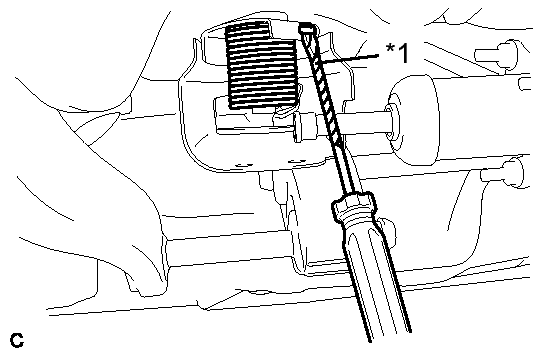

- Using a screwdriver with the tip taped, pry the portion indicated in the illustration to engage the spring.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

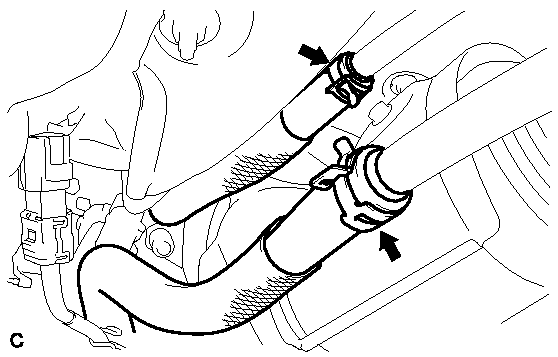

TEXT IN ILLUSTRATION*1 Protective Tape - Connect the 2 water hoses.
- Apply engine coolant to the O-ring.
- ADD ENGINE COOLANT (for Engine) See step 2
- INSPECT FOR COOLANT LEAK . Refer to ON-VEHICLE INSPECTION - Step 1
- INSTALL NO. 1 ENGINE UNDER COVER
