EGR Cooler: Installation: Installation

WARNING: This page is about a different variant/trim than selected.
  1. INSTALL EGR WITH COOLER PIPE SUB-ASSEMBLY
    1. Temporarily install a new gasket and the EGR with cooler pipe sub-assembly with the 2 nuts (A).

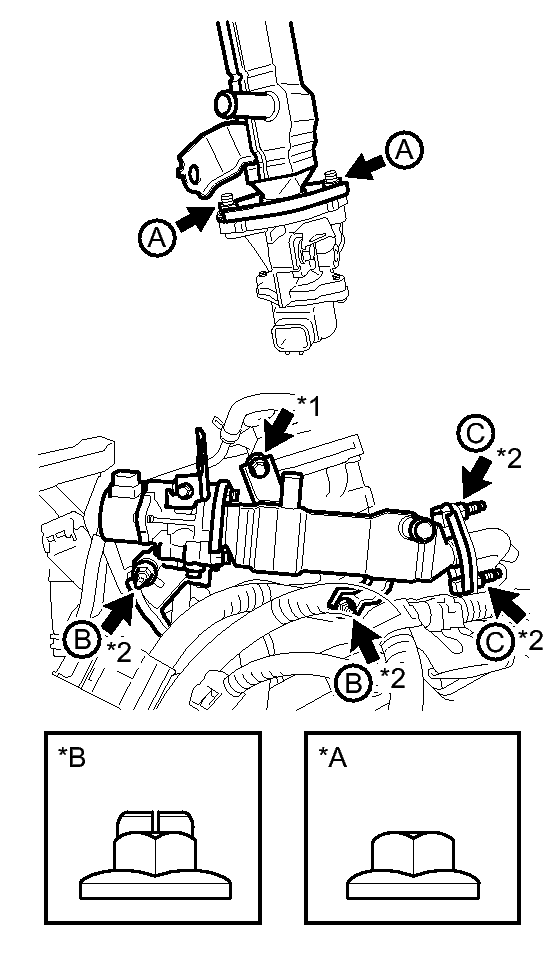

      Fig 1: Identifying EGR Cooler Sub-Assembly
      GTY293214Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *A Nut (C), Type A
      *B Nut (C), Type B
      *1 Bolt
      *2 Stud Bolt and Nut
    2. Install 2 new gaskets and set the EGR valve with cooler assembly in place.
    3. Using an E8 "TORX" socket wrench, install the 4 stud bolts.

      Stud Bolt (B)

      Torque: 9.5 N*m (97 kgf*cm, 84 in.*lbf)

      Stud Bolt (C)

      Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

    4. Temporarily install the 4 nuts (B and C) and bolt.
    5. Tighten the 2 nuts (A).

      Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

    6. Tighten the 2 nuts (B) and bolt.

      Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

      NOTE:

      Make sure that all installation surfaces of the EGR valve with cooler assembly are in even contact when tightening the bolts and nuts.

    7. Tighten the 2 nuts (C).

      Type A

      Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

      Type B

      Torque: 37 N*m (377 kgf*cm, 27 ft.*lbf)

    8. Connect the connector, wire harness clamp and 4 water hoses.

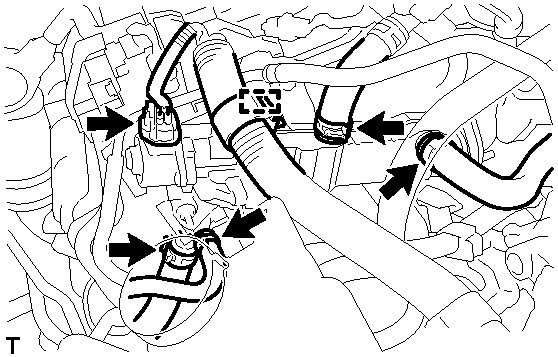

      Fig 2: Identifying EGR Valve Assembly, Wire Harness Clamp, Connector & Water Hoses
      GTY232360Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL EGR PIPE ASSEMBLY  See step  3
  3. INSTALL AIR CLEANER CASE  . Refer to INSTALLATION - Step 3
  4. INSTALL INLET AIR CLEANER ASSEMBLY  . Refer to INSTALLATION - Step 70
  5. INSTALL AIR CLEANER CAP SUB-ASSEMBLY  . Refer to INSTALLATION - Step 5
  6. INSTALL NO. 2 CYLINDER HEAD COVER  . Refer to INSTALLATION - Step 99
  7. ADD COOLANT (for Engine)  . Refer to REPLACEMENT - Step 2
  8. INSPECT FOR COOLANT LEAK (for Engine)  . Refer to ON-VEHICLE INSPECTION - Step 1
  9. INSTALL OUTER COWL TOP PANEL SUB-ASSEMBLY  . Refer to INSTALLATION - Step 16
  10. INSTALL COWL BODY MOUNTING REINFORCEMENT LH  . Refer to INSTALLATION - Step 17
  11. INSTALL WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY

    Refer to INSTALLATION
