Blower Unit: Disassembly: Disassembly

WARNING: This page is about a different variant/trim than selected.

REMOVE RECIRCULATION DAMPER SERVO SUB-ASSEMBLY
1. Remove the 2 screws and recirculation damper servo sub-assembly.

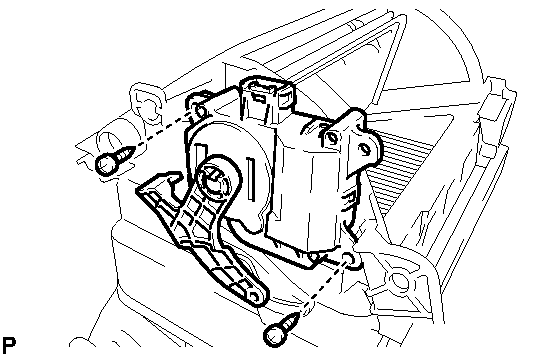

  Fig 1: Identifying Air Inlet Control Servo Motor Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE AIR FILTER CASE
1. Disengage the claw and guide, and remove the air filter case as shown in the illustration.

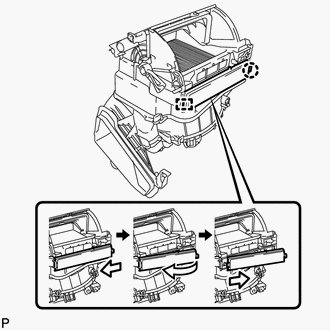

  Fig 2: Identifying Air Filter Case Claw & Guide
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE CLEAN AIR FILTER
1. Remove the clean air filter as shown in the illustration.

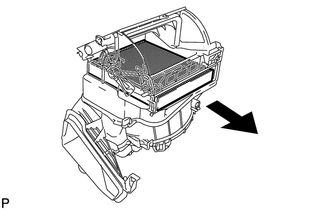

  Fig 3: Identifying Clean Air Filter
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE BLOWER WITH FAN MOTOR SUB-ASSEMBLY
1. Remove the 3 screws and blower with fan motor sub-assembly.

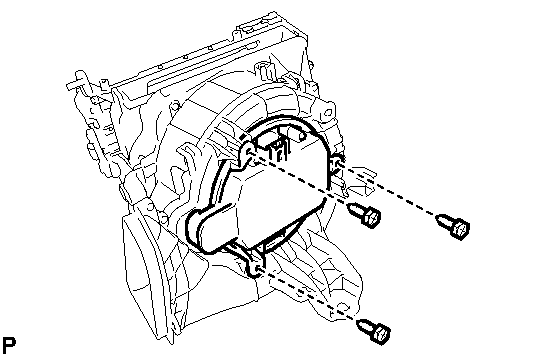

  Fig 4: Identifying Front Blower Motor Sub-Assembly Screws (W/ Solar Ventilation System)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  Do not remove the blower with fan motor sub-assembly if it has been damaged or impacted.
