System Description

1. The air conditioning system uses the following types of control.

   Control		Outline
   Neural Network Control		This control is capable of effecting complex control by artificially simulating the information processing method of the nervous system of living organisms in order to establish a complex input or output relationship that is similar to a human brain.
   Outlet Air Temperature Control		In compliance with the temperature set at the temperature control switch, the neural network control calculates the outlet temperature based on the input signals from various sensors. In addition, corrections in accordance with the signals from the evaporative temperature sensor and water temperature sensor are added to control the outlet air temperature.
   Blower Control		Controls the blower motor in accordance with the airflow volume that has been calculated by the neural network control based on the input signals from various sensors.
   Air Outlet Control		Automatically switches the outlets in accordance with the outlet mode ratio that has been calculated by the neural network control based on the input signals from various sensors.
   Micro Dust and Pollen Filter Mode Control		Activated by the micro dust and pollen filter mode switch operation. Switches the air vent to FACE mode. Sends air which has passed through the clean air filter to the area around the upper part of the bodies of the driver and front passenger. This air is filtered by the clean air filter in order to remove pollen.
   Air Inlet Control		Automatically controls the air inlet control damper in accordance with the outlet temperature that has been calculated by the neural network control.
   Electric Inverter Compressor Control	Compressor Speed Control	The air conditioning amplifier assembly calculates the target speed of the compressor based on the target evaporator temperature (which is calculated by the temperature control switch, room temperature sensor, ambient temperature sensor, and solar sensor) and the actual evaporator temperature that is detected by the evaporator temperature sensor in order to control the compressor speed.
   		The air conditioning amplifier assembly calculates the target evaporator temperature, which includes corrections based on the temperature control switch, room temperature sensor, ambient temperature sensor, solar sensor, and evaporator temperature sensor. Accordingly, the air conditioning amplifier assembly controls the compressor speed to an extent that would not inhibit the proper cooling performance or defogging performance.
   PTC Heater Control		When the hybrid control system is operating (READY), and the blower motor is turned on, the air conditioning amplifier assembly turns on the PTC heater assembly if the conditions listed below are met: Engine coolant temperature is below specified temperature. Outside temperature is below specified temperature Tentative air mix damper opening angle is above the specified value (MAX HOT).
   ECO Mode Control		When the eco mode switch is turned on, the air conditioning amplifier assembly limits the air conditioning system performance.
   Remote Climate Control System Control		When the remote A/C switch on the key (electrical transmitter) or smart phone (mobile phone terminal) is operated, the air conditioning system is automatically controlled and operated for a maximum of 10 minutes using power from the household power supply or HV battery.

• In previous automatic air conditioning systems, the air conditioning amplifier assembly determined the required outlet air temperature and blower air volume in accordance with the calculation formula that has been obtained based on information received from the sensors.

  However, because the senses of a person are rather complex, a given temperature is sensed differently, depending on the environment in which the person is situated. For example, a given amount of sunlight can feel comfortably warm in a cold climate, or extremely uncomfortable in a hot climate. Therefore, as a technique for effecting a higher level of control, a neural network has been adopted in the automatic air conditioning system. With this technique, the data that has been collected under varying environmental conditions is stored in the air conditioning amplifier assembly. The air conditioning amplifier assembly can then effect control to provide enhanced air conditioning comfort.

• The neural network control consists of neurons in the input layer, intermediate layer and output layer. The input layer neurons process the input data of the outside temperature, the amount of sunlight and the room temperature based on the outputs of the switches and sensors, and outputs it to the intermediate layer neurons. Based on this data, the intermediate layer neurons adjust the strength of the links among the neurons. The sum of these is then calculated by the output layer neurons in the form of the required outlet temperature, solar correction, target airflow volume and outlet mode control volume. Accordingly, the air conditioning amplifier assembly controls the servo motors and blower motor in accordance with the control volumes that have been calculated by the neural network control.

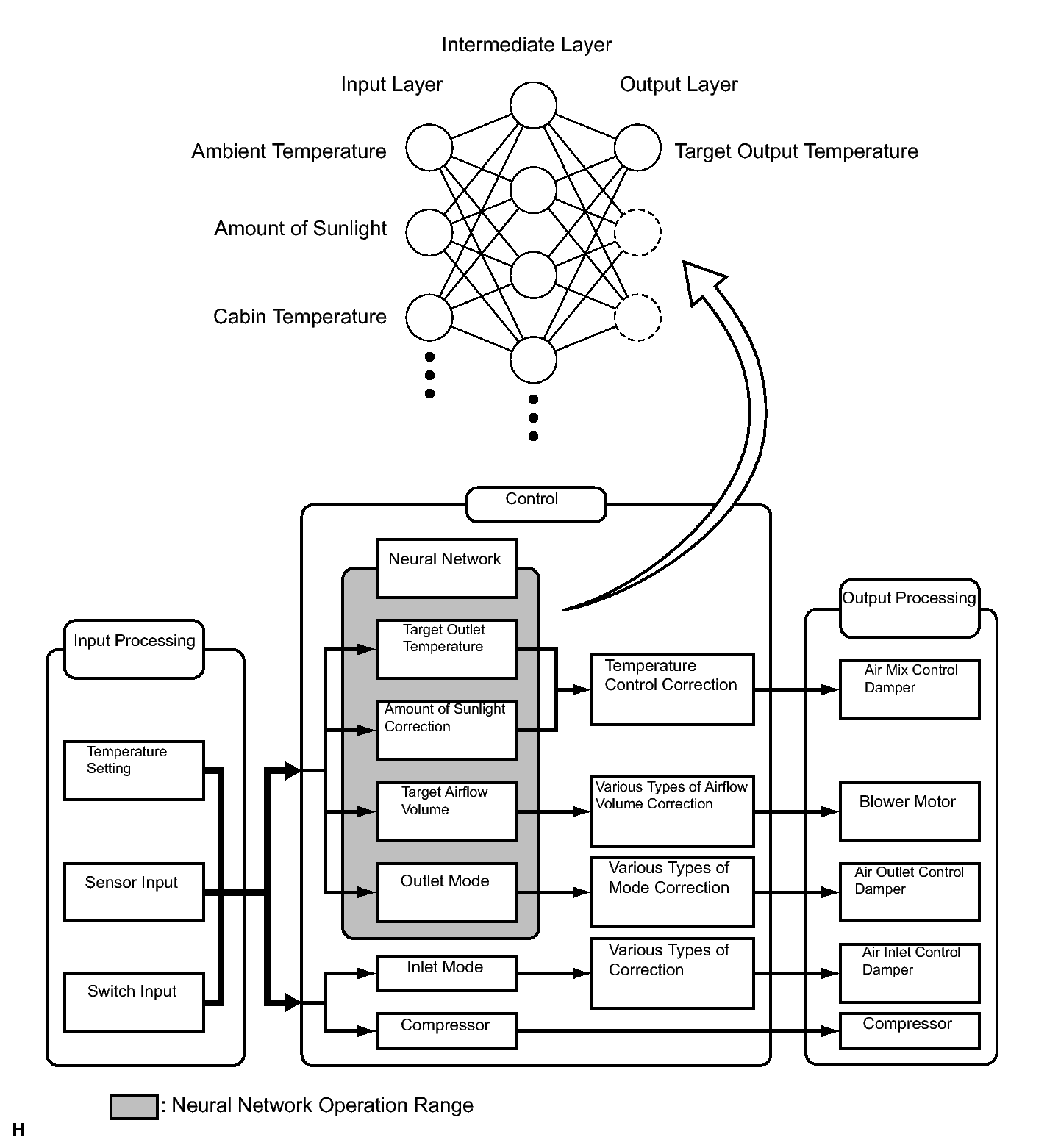

Fig 1: Identifying Neural Network Control

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Mode Position and Damper Operation

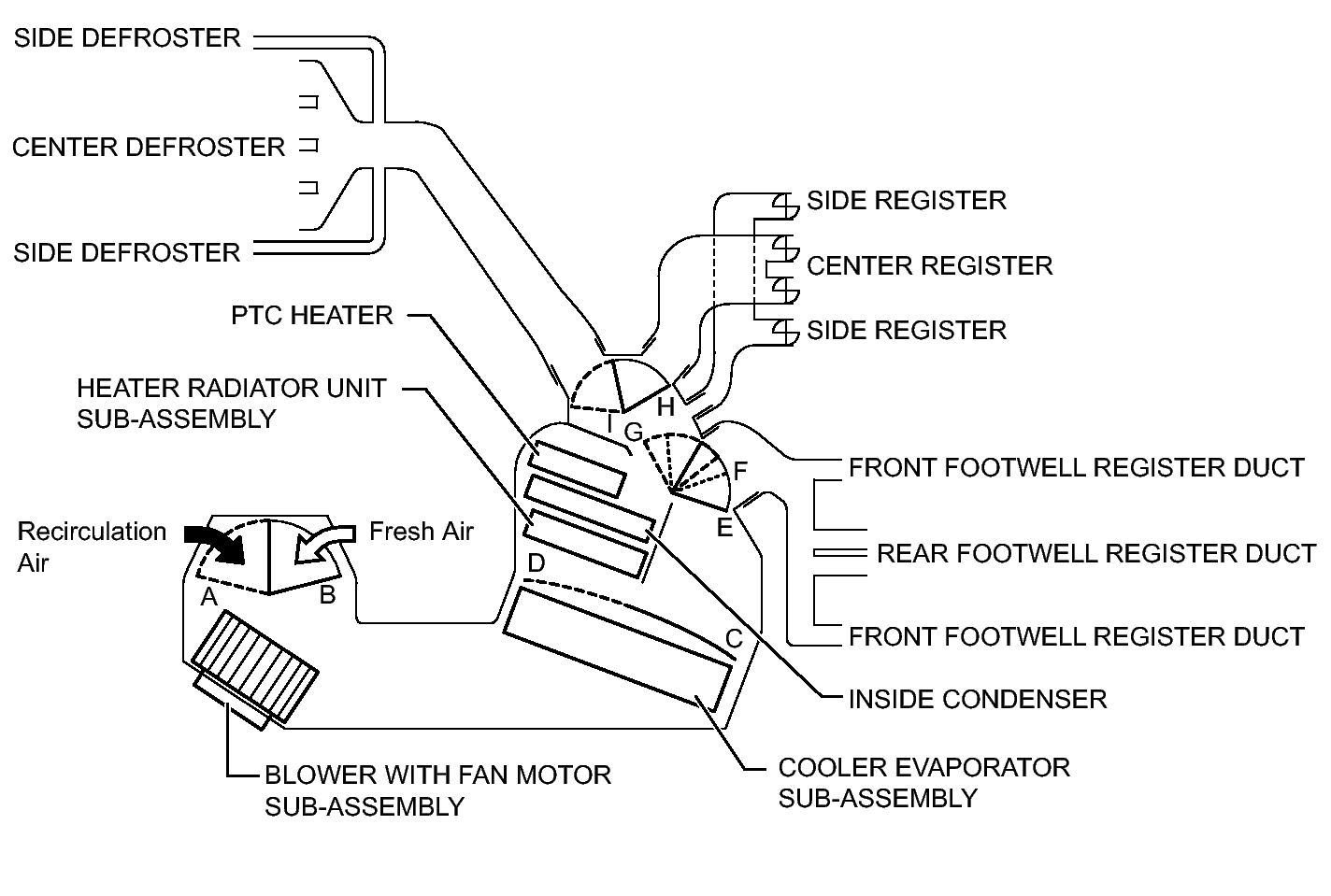

   Fig 2: Identifying Mode Position And Damper Operation

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002© TOYOTA, LICENSE AGREEMENT TMS1002© TOYOTA, LICENSE AGREEMENT TMS1002© TOYOTA, LICENSE AGREEMENT TMS1002© TOYOTA, LICENSE AGREEMENT TMS1002© TOYOTA, LICENSE AGREEMENT TMS1002
   FUNCTIONS OF MAIN DAMPERS



   Control Damper	Operation Position	Damper Position	Operation
   Air Inlet Control Damper	FRESH	A	Allows fresh air to enter.
   	RECIRCULATION	B	Causes internal air to recirculate.
   Air Mix Control Damper	MAX COLD to MAX HOT Temperature Setting	C - D	Varies the mixture ratio of warm air and cool air in order to regulate the temperature continuously between hot and cold.
   Air Outlet Control Damper	DEF Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	E	Defrosts the windshield through the center defroster, side defrosters and side registers.
   	FOOT/DEF Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	F	Defrosts the windshield through the center defroster, side defrosters, side registers while air is also blown out from the front and rear footwell register ducts.
   	FOOT Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	H	Air blows out of the front and rear footwell register ducts, and side registers. In addition, air blows out slightly from the center defroster and side defrosters.
   	BI-LEVEL Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	I, G	Air blows out of the center register, side registers and front and rear footwell register ducts.
   	FACE Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	I, E	Air blows out of the center register and side registers.

1. Air Outlets and Airflow Volume

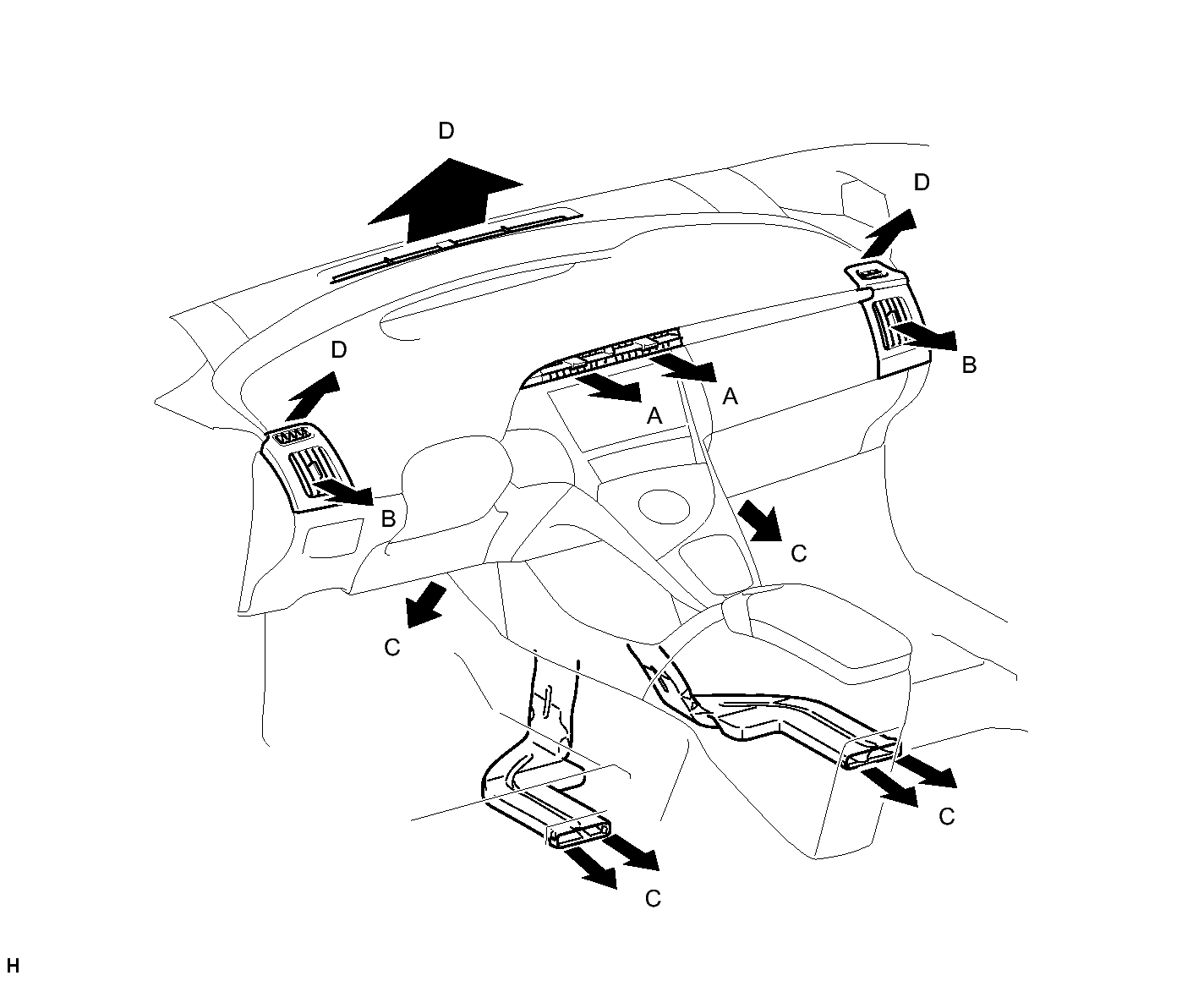

   Fig 3: Identifying Air Outlets & Airflow Volume

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Indication	Mode	FACE		FOOT	DEF
   		CTR	SIDE	C	D
   		A	B
   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	FACE	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	B/L	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	FOOT	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	F/D	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	DEF	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   The size of each circle ◦ indicates the ratio of airflow volume.

1. Outline
   1. When the remote A/C switch on the key (electrical transmitter) or smart phone (mobile phone terminal) is operated, the air conditioning system is automatically controlled and operated for a maximum of 10 minutes using power from the household power supply or HV battery.

      HINT:

      • The remote climate control system operates regardless of the plug-in cable connection condition.
      • When the plug-in cable is connected, the remote climate control system is operated using power from the HV battery or household power supply.
      • When the plug-in cable is not connected, the remote climate control system is operated using power only from the HV battery.
      • The remote climate control system starts operating when all of the following operating conditions are met.
      OPERATING CONDITION



      Item	Condition
      Power switch condition	Off Power switch is not pressed
      Door lock condition	All doors are closed and locked. Hood is closed.
      Brake pedal condition	Not operated (not depressed)
      Security condition	Not in alarm sounding state
      Shift selection condition	Park (P) is selected.
      Cabin temperature condition	Higher than air conditioning temperature set by user Air conditioning is necessary
      HV battery condition	HV battery state or change is sufficient. (Reference value: level 5 or higher)

2. Function of Main Components
   1. Each component of the remote climate control system has the functions described in the table.
      FUNCTION OF MAIN COMPONENTS



      Component	Outline
      Key (electrical transmitter)	Sends remote climate control system on/off signals to the certification ECU.
      Smart phone (mobile phone terminal)	Sends remote climate control system on/off signals to the telematics transceiver (DCM) via the center.
      Certification ECU (smart key ECU assembly)	Receives a signal from the key (electrical transmitter) and sends a signal to the main body ECU (multiplex network body ECU).
      Telematics Transceiver (DCM)	Performs wireless communication with the center. Receives remote climate control system on/off signals from the smart phone (mobile phone terminal) via the center. Remote climate control system on/off signals to the main body ECU (multiplex network body ECU).
      Main body ECU (multiplex network body ECU)	Locks all of the doors. Checks that all of the doors are closed and locked. Checks that the hood is closed. When the remote climate control system starts, the main body ECU (multiplex network body ECU) operates the wireless door lock system.
      Power management control ECU	Turns the vehicle power (12 V) on/off. Starts/stops the HV system. Controls the inverter with converter assembly. Checks if park (P) is selected. Checks the brake pedal condition. Permits/prohibits remote climate control system operation.
      HV battery	Supplies drive power of the remote climate control system.
      Air conditioning amplifier assembly	Judges whether the air conditioning function is operating during remote climate control system operation. Checks the operation of the air conditioning system based on signals from various sensors. Controls the air conditioning system. Judges when to stop the remote climate control system.
      Inverter with converter assembly	Supplies drive power to the compressor with motor assembly.
      Compressor with motor assembly	Compresses refrigerant using power from the household power supply or HV battery.

1. In a conventional refrigerant cycle, liquid refrigerant gas is sent into the evaporator using the expansion valve, generating cold air. However, a rapid decrease in the refrigerant pressure forms swirls, causing energy loss. In an ejector cycle, the energy loss caused by the cooler expansion valve is utilized by the operation of the ejector that injects and expands a high-pressure refrigerant, thus improving energy consumption efficiency.
2. The ejector includes nozzle, mixing and diffuser portions.
3. A high temperature and pressure liquid refrigerant flowing from the condenser is introduced into the mixing section through the nozzle at high speeds as the nozzle is inwardly tapered. This decreases the refrigerant pressure in the vicinity of the nozzle, introducing low temperature and pressure gaseous refrigerant into the nozzle from the evaporator. Thus, both refrigerants are mixed in the mixing section and are introduced into the diffuser section.
4. As the diffuser section is outwardly flared, the refrigerant flow rate in the diffuser decreases and the refrigerant pressure rises.
5. Through these operations, the refrigerant pressure in the evaporator on the downwind side can be constantly kept lower than that on the upwind side, creating lower temperature conditions. Therefore, air cooled by the evaporator on the upwind side can be further cooled by that on the downwind side, thus improving the efficiency of the evaporator.

1. When the micro dust and pollen filter mode switch is pressed, the micro dust and pollen filter mode control is activated.
2. Then, the air vent is switched to FACE mode and recirculated pollen-free air flows in the area around the upper part of the bodies of the driver and front passenger.
3. When the micro dust and pollen filter mode switch signal is input to the air conditioning amplifier assembly, the air conditioning amplifier assembly controls the compressor with motor assembly, air inlet control servo motor, air outlet control servo motor and blower motor as shown in the timing chart below.
4. This control usually operates for approximately 3 minutes. However, when the outside temperature is low (5°C (41°F) maximum), it will operate for approximately 1 minute.
5. After this control stops operating, the air conditioning amplifier assembly controls the air conditioning system using AUTO mode.
   Fig 4: Micro Dust And Pollen Filter Mode Switch Timing Chart

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Under the control of eco mode, the air conditioning amplifier assembly restricts the air conditioning system performance under specified conditions, thus improving fuel economy.
2. Eco mode control is activated when the eco mode switch provided inside the integration control and panel sub-assembly is pressed, and then restricts the air conditioning system performance as described below.

   Control	Outline
   Inside/outside Air Switch Control	Automatically switches the air inlet port to internal air circulation mode when the outside air temperature is equal to or higher than a predetermined temperature and reduces the power consumption.
   Blower Level Control	Sets the blower level in AUTO mode lower than normal, and suppresses power consumption.
   PTC Heater Control	Stops the operation of the PTC heater assembly and suppresses power consumption.
   Heating Restriction Control	Changes the air outlet temperature by turning the eco mode switch on and off during heating and increases the amount of engine-off time when the eco mode switch is in the on state, thus improving fuel economy.
   Compressor Speed Restriction Control	Restricts the maximum speed during cooling and reduces power consumption.

1. Compressor Control

   HINT:

   In order to ensure the proper insulation of the internal high-voltage portion of the compressor and the compressor housing, this vehicle has adopted ND-OIL 11 compressor oil with a high level of insulation performance. Therefore, never use compressor oil other than the ND-OIL 11 type compressor oil or its equivalent.

   1. The air conditioning amplifier assembly calculates the target compressor speed based on the target evaporator temperature (calculated from the temperature control switch, room temperature sensor, ambient temperature sensor, and solar sensor) and the actual evaporator temperature detected by the evaporator temperature sensor. Then, the air conditioning amplifier assembly transmits the target speed to the power management control ECU. The power management control ECU controls the A/C inverter based on the target speed data in order to control the compressor with motor assembly to a speed that suits the operating condition of the air conditioning system.
   2. The air conditioning amplifier assembly calculates the target evaporator temperature, which includes corrections based on the temperature control switch, room temperature sensor, ambient temperature sensor, automatic light control sensor, and evaporator temperature sensor. Accordingly, the air conditioning amplifier assembly controls the compressor speed to an extent that does not inhibit proper cooling performance or defogging performance.
   3. The compressor with motor assembly uses high-voltage alternating current. If a short or open circuit occurs in the compressor with motor assembly wiring harness, the power management control ECU will cut off the A/C inverter circuit in order to stop the power supply to the compressor motor.

1. General
   1. The quick heater assembly is located above the heater core in the air conditioning unit.
   2. The quick heater assembly consists of a PTC element, aluminum fins, and brass plates. When current is applied to the PTC element, it generates heat to warm the air that passes through the unit.

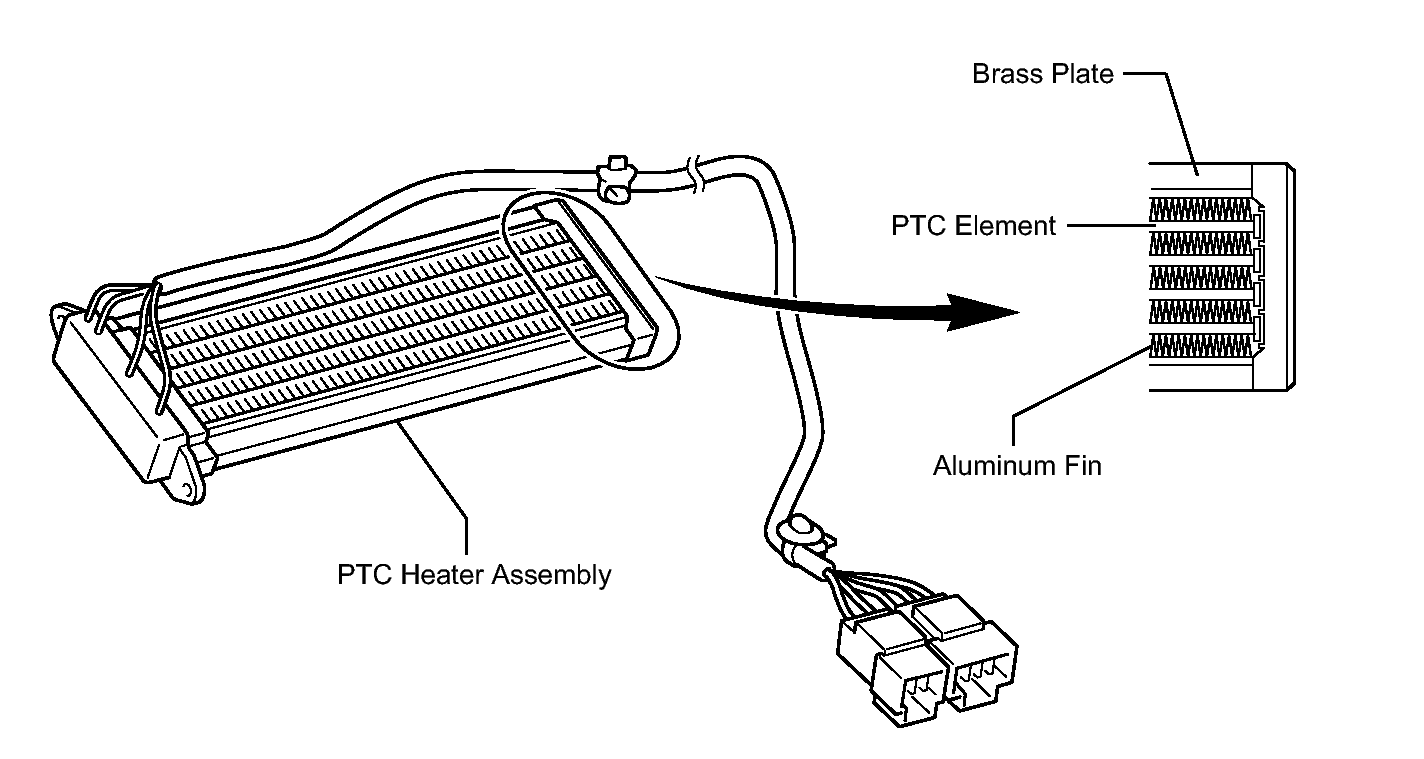

      Fig 5: Identifying PTC Heater

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Quick heater assembly operating conditions

   The quick heater assembly is turned on and off by the air conditioning amplifier assembly in accordance with the engine coolant temperature, ambient temperature, engine speed, temperature setting, and electrical load (generator power ratio).

The blower motor with fan sub-assembly has a built-in blower controller, and is controlled using duty control performed by the air conditioning amplifier assembly.

1. A bus connector is used in the wire harness connection that connects the servo motors to the air conditioning amplifier assembly.

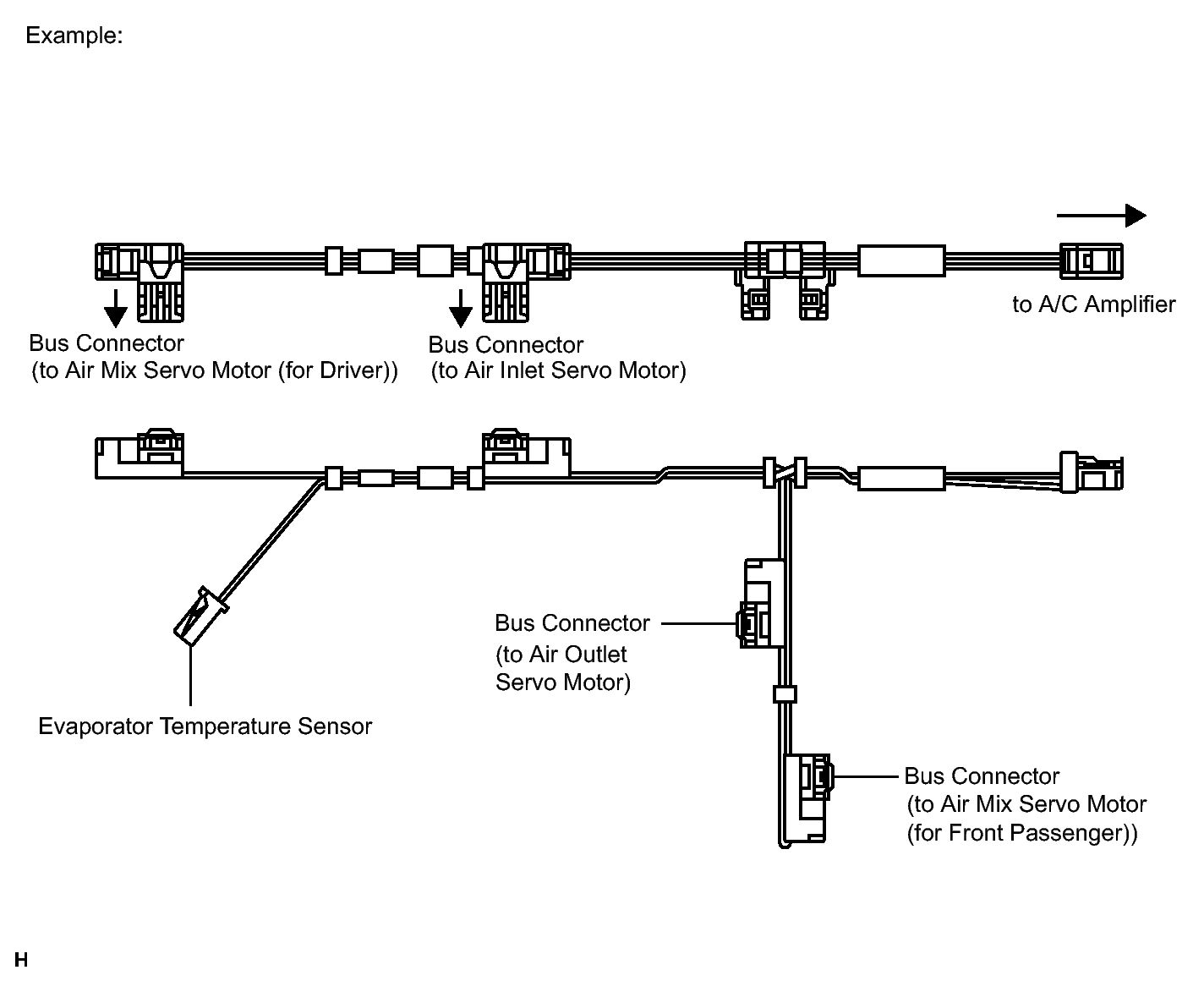

   Fig 6: Identifying Bus Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Each bus connector has a built-in communication/driver IC which communicates with the air conditioning amplifier assembly, actuates the servo motor, and has a position detection function. This enables bus communication for the servo motor wire harness, for a more lightweight construction and a reduced number of wires.
   Fig 7: Servo Motor Communication Diagram

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

The pulse pattern type servo motor consists of a printed circuit board and a servo motor. The printed circuit board has three contact points, and can transmit two ON-OFF signals to the air conditioning amplifier assembly based on the difference of the pulse phases. The bus connector can detect the damper position and movement direction with these signals.

Fig 8: Servo Motor Contact Points

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

The evaporator temperature sensor detects the temperature of the cool air immediately through the evaporator in the form of resistance changes, and outputs it to the air conditioning amplifier assembly.

The room temperature sensor detects the cabin temperature based on changes in the resistance of its built-in thermistor and sends a signal to the air conditioning amplifier assembly.

The ambient temperature sensor detects the outside temperature based on changes in the resistance of its built-in thermistor and sends a signal to the air conditioning amplifier assembly.

The solar sensor (automatic light control sensor) detects changes in the amount of sunlight and outputs it to the air conditioning amplifier assembly in the form of voltage changes.

The air conditioning pressure sensor detects the refrigerant pressure and outputs it to the air conditioning amplifier assembly in the form of voltage changes.
